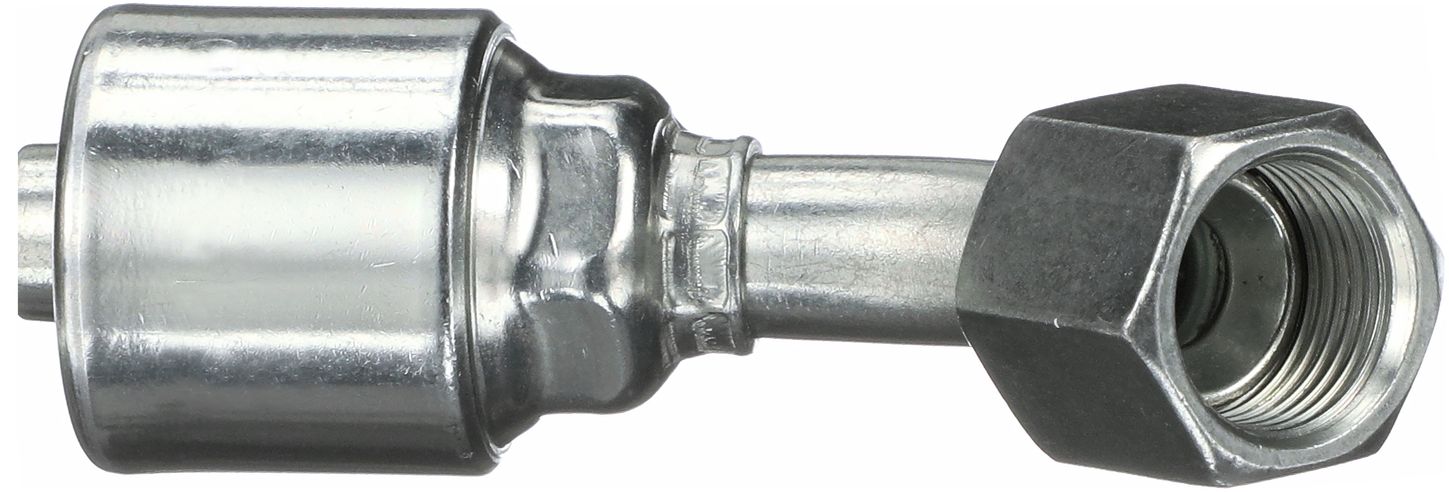

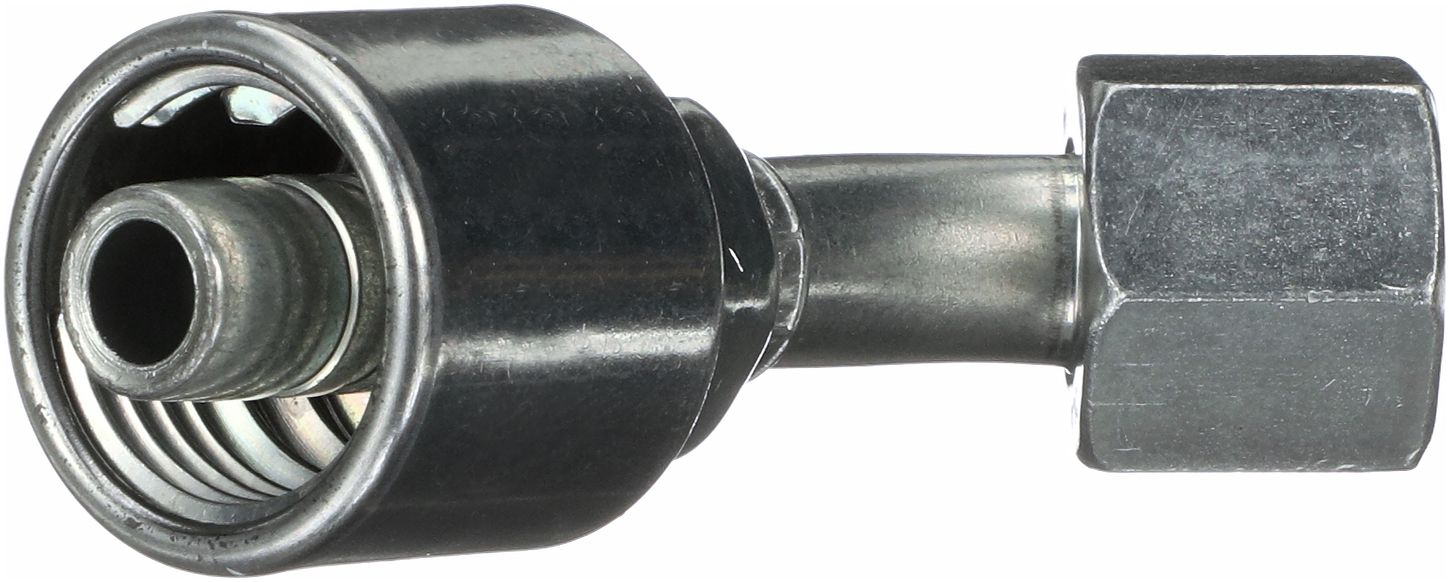

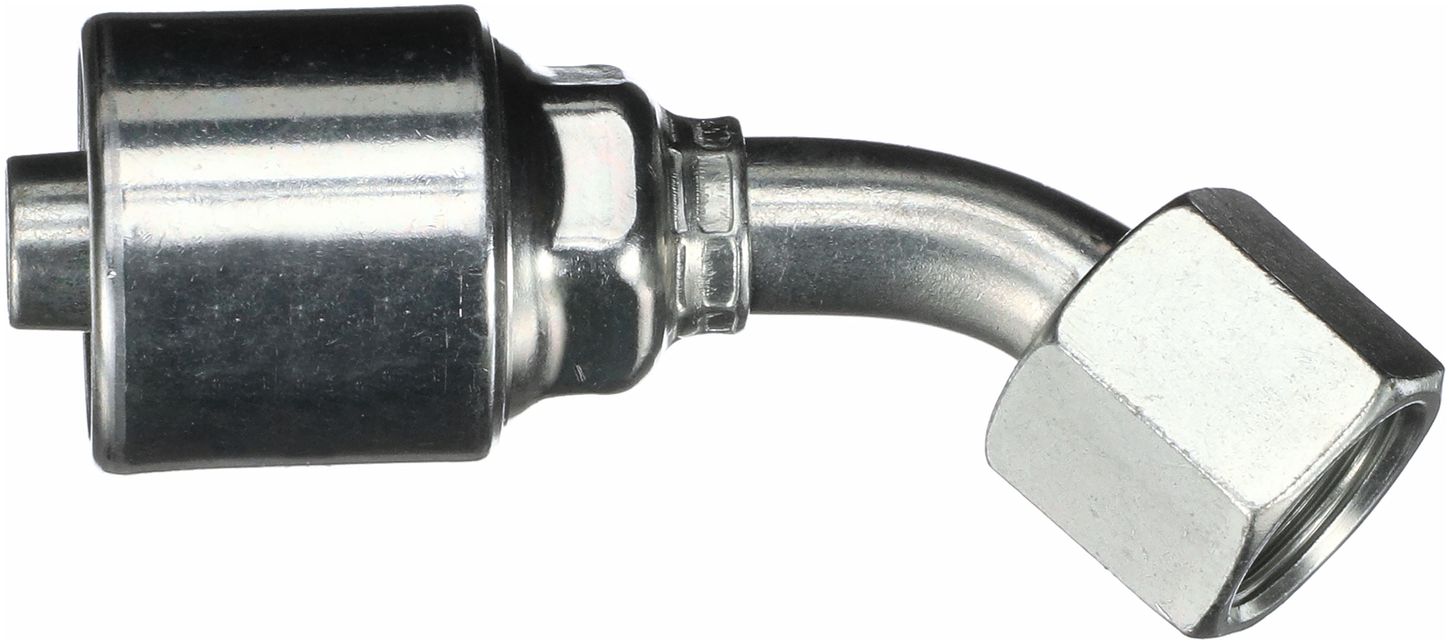

Gates G25175-1216 (12G-16FJX45S) 12G-16FJX45S Female JIC 37 Flare Swivel - 45 Bent Tube/Short (MegaCrimp)
SKU: G25175-1216Cross reference: 12G-16FJX45S710346455F2-1216-JFS45MG251751216UPC/EAN: 072053456455
Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
$75.37
EachLow stock
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25175-1216 |
|---|---|
| Cross reference | 12G-16FJX45S, 710346455, F2-1216-JFS45M, G251751216 |
| UPC/EAN | 072053456455 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 45° |
| Seal Type | Mated Angle |
| Thread Size | 1 5/16" (21) |
| Gates Code | G25 |
