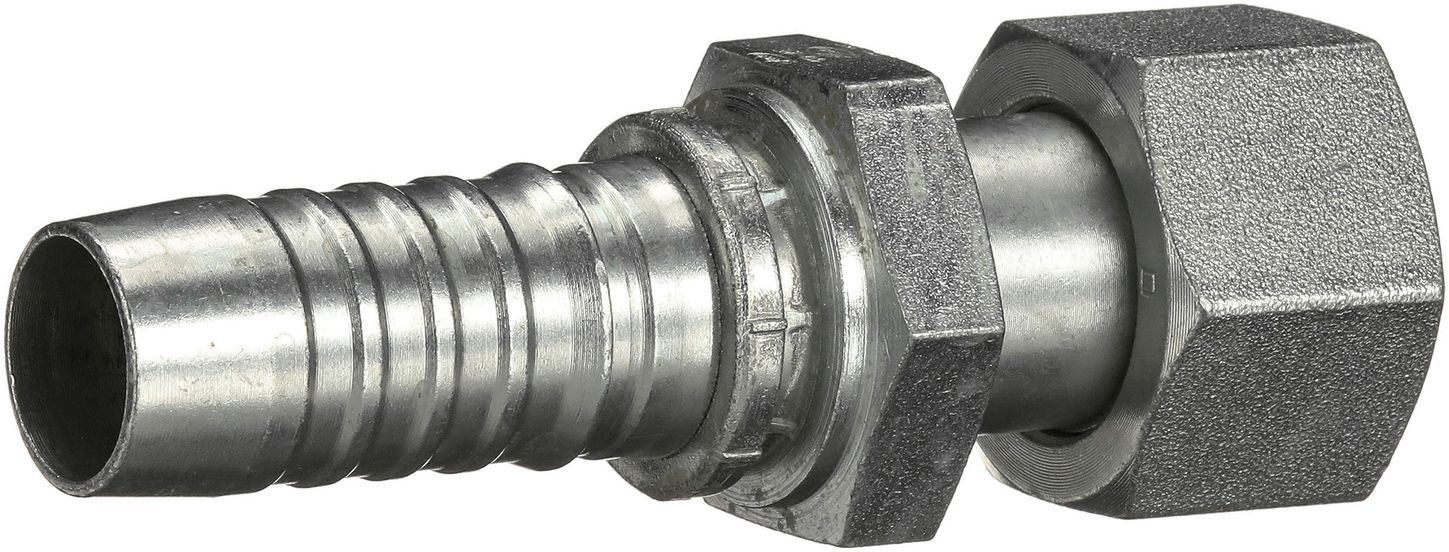

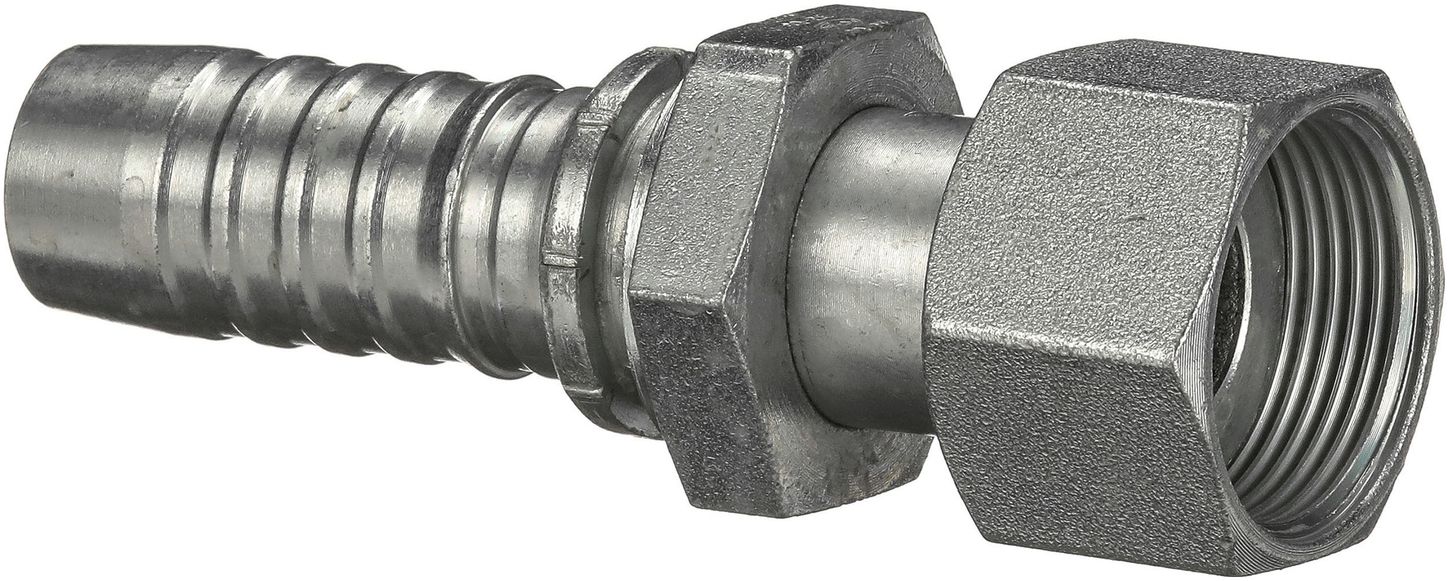

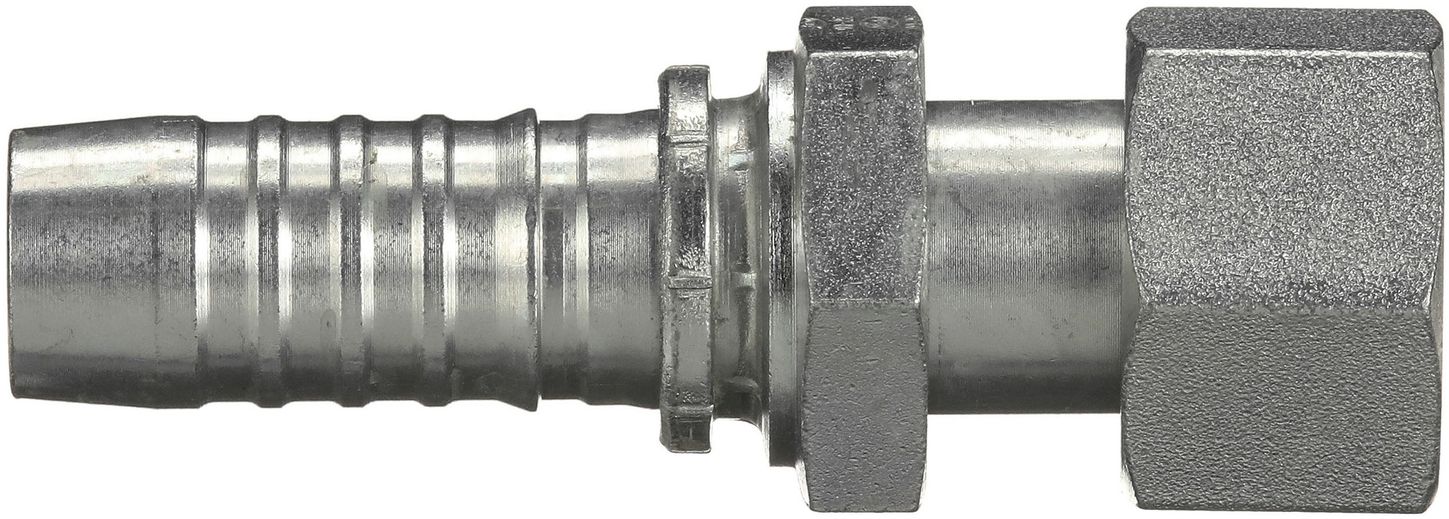

Gates G20230-1212 (12GS-12FFORX) Female Flat-Face O-Ring Swivel (GlobalSpiral)
The Gates G20230-1212 Female Flat-Face O-Ring Swivel offers exceptional durability and performance in fluid transfer applications. Its flat-face design minimizes fluid loss and enhances connection reliability. This swivel is compatible with a range of hoses and fittings, making it versatile for various uses. Built to withstand high pressures, it ensures long-lasting service and efficiency.






Product Details
Gates G20230-1212 Female Flat-Face O-Ring Swivel (GlobalSpiral)
INCLUDES (1) O-Ring Swivel
PRODUCT OVERVIEW The Gates G20230-1212 Female Flat-Face O-Ring Swivel is engineered for high-performance applications, providing a secure and leak-free connection. Its innovative design reduces fluid loss and enhances operational efficiency.
KEY FEATURES - Durable construction for long-lasting use - Flat-face design for minimal fluid loss
Specifications
| SKU | G20230-1212 |
|---|---|
| Cross reference | 12GS-12FFORX, 73473044, 734730445, F4-1212-OFS, G202301212 |
| UPC/EAN | 072053278408 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 3/16" (19) |
| Gates Code | G20 |
