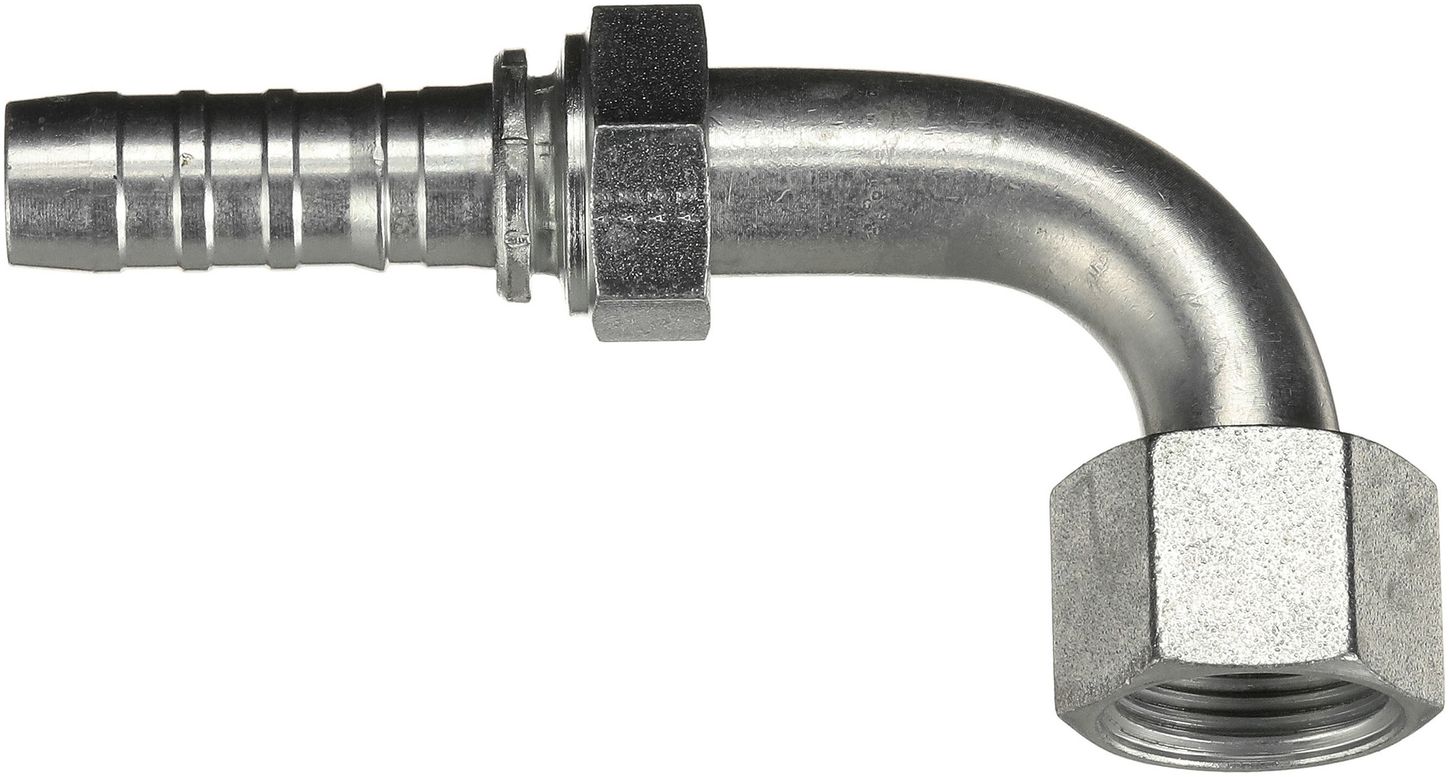

Gates G20239-1616 (16GS-16FFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
SKU: G20239-1616Cross reference: G202391616GATG20240-1616GATG20241-1616TEXF4-1616-OFS90MUPC/EAN: 072053297058
Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
$98.67
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20239-1616 |
|---|---|
| Cross reference | G202391616, GATG20240-1616, GATG20241-1616, TEXF4-1616-OFS90M |
| UPC/EAN | 072053297058 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 1" (16) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1 7/16" (23) |
| Gates Code | G20 |
