Oregon 371SNCT190 37" SPROCKET NOSE 3/4 HARVESTE

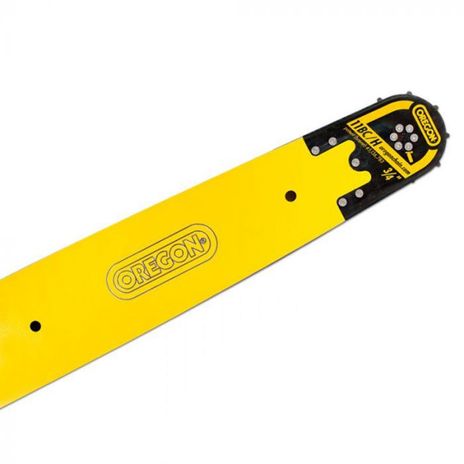

The Oregon 37” RSN Harvester Bar is built from solid, ⅜” thick alloy steel with precision-milled grooves. Featuring a replaceable sprocket nose and chamfered rails, it’s perfect for mechanized harvesting equipment.

Oregon Harvester Bar, ¾”, 37 in, RSN

INCLUDES: (1) Oregon Harvester Bar, ¾”, 37 in, RSN (371SNCT190)

PRODUCT OVERVIEW

The Oregon 37” RSN Harvester Bar features a ¾” pitch and a durable ⅜” thick alloy steel construction. With precision-milled grooves and chamfered rails, this guide bar provides superior strength, ensuring minimal wear and long-lasting performance. Its patented Cradle sprocket-tooth design reinforces the critical nose-sprocket area for added reliability, and the nose can be replaced by removing 5 rivets. This bar is ideal for mechanized harvesting equipment, with the ability to be re-straightened after cutting mishaps, ensuring continued use even in tough conditions.

KEY FEATURES:

• ¾” pitch and 37” length
• 60 drive links, 9/10 tooth count
• Patented Cradle sprocket-tooth design for enhanced strength
• Replaceable sprocket nose with easy rivet removal
• Chamfered rails with chain lead-ins at the bar tail
• Solid, one-piece ⅜” thick alloy steel construction
• Re-straightenable after bending
• Designed for mechanized harvesting equipment

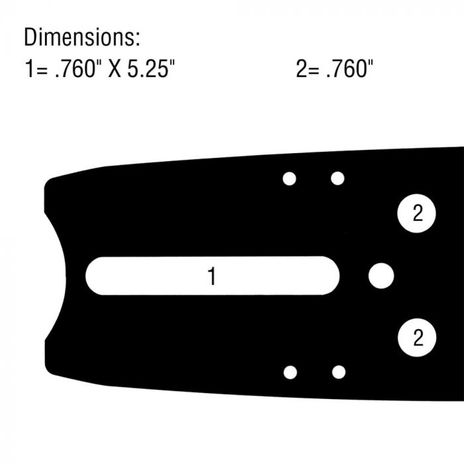

SPECIFICATIONS:

• Length: 37”
• Pitch: ¾”
• Gauge: .122”
• Drive Link Count: 60 Drive Links
• Tooth Count: 9/10 Teeth
• Bar Mouth: T190

NOTES:
All harvester chain is intended for use on mechanized harvesting equipment only and should never be used on hand-held chainsaws. Depth-gauge settings, grind angles and other features on harvester chain is more aggressive in order to obtain maximum productivity from mechanized saws; these features can cause high levels of kickback, or increase other risk factors which can lead to a greater danger of injury to the operator or bystanders. DO NOT install harvester chain on hand-held chainsaws.
