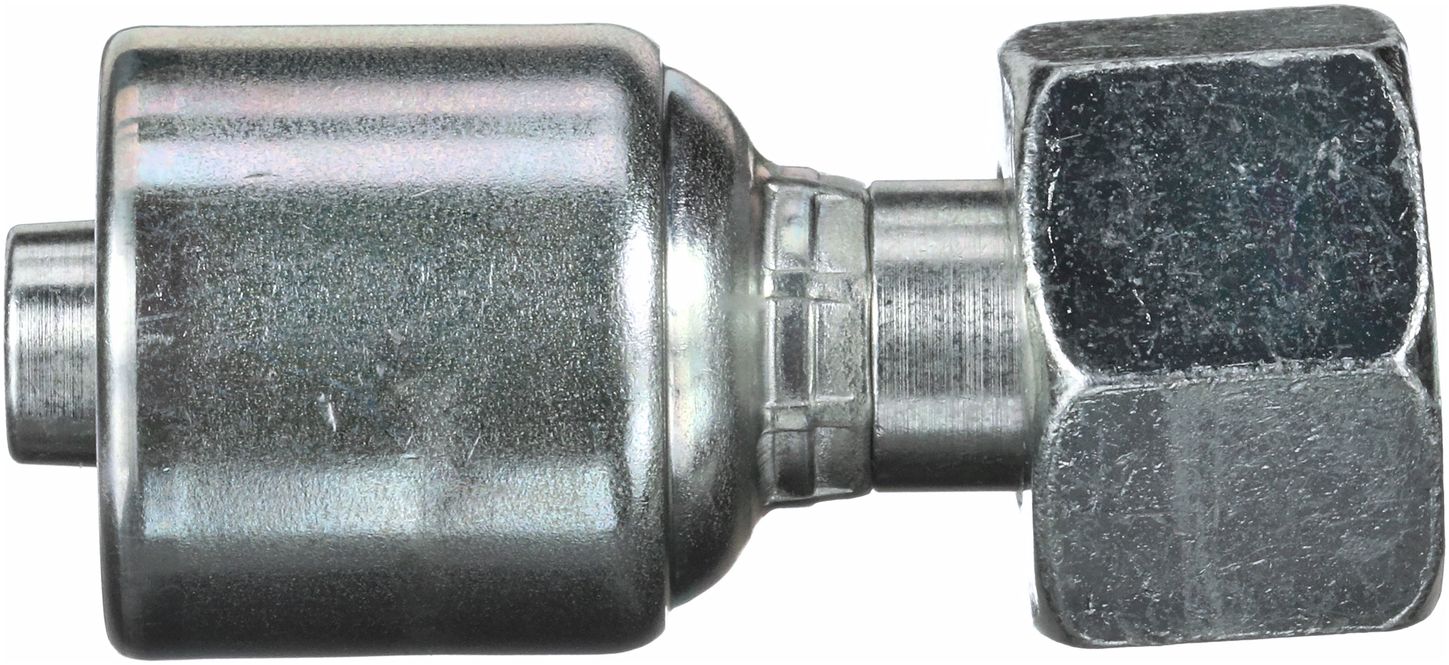

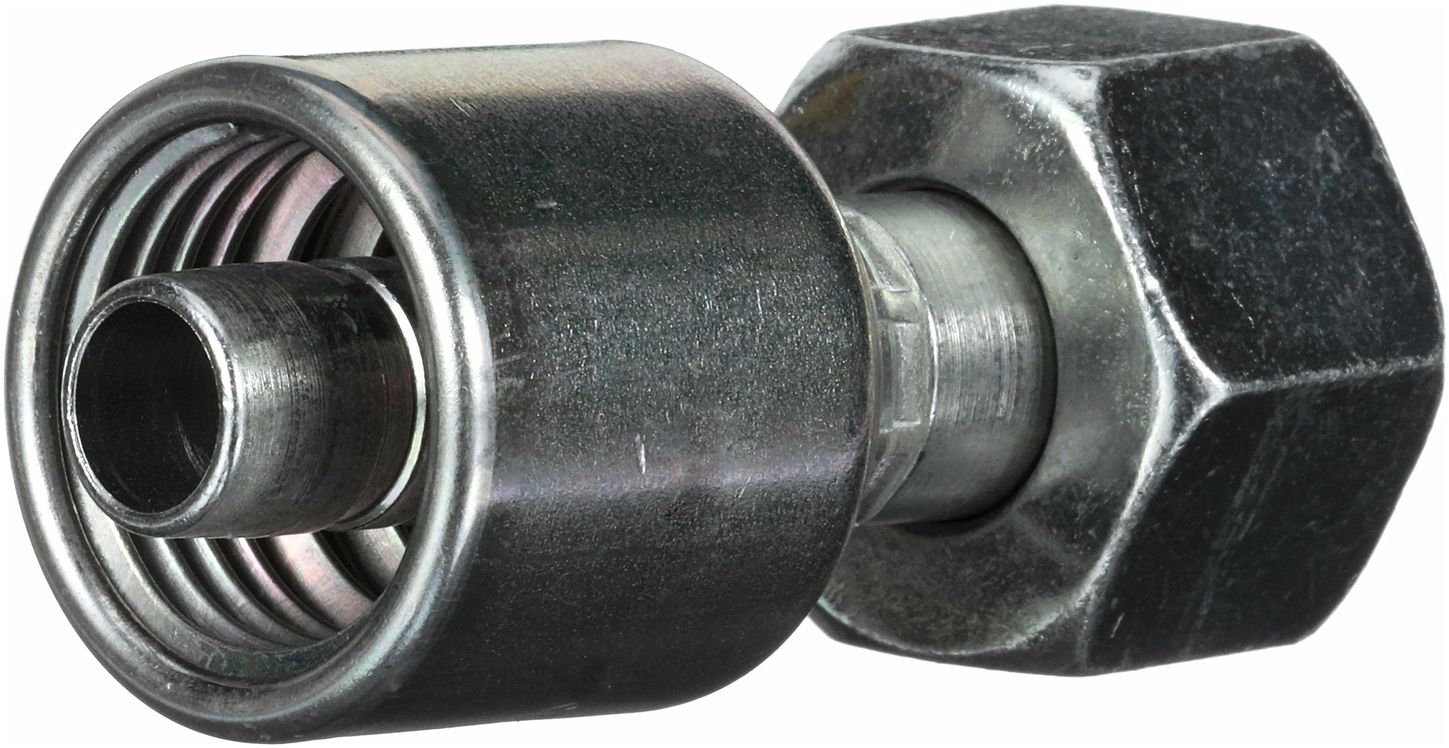

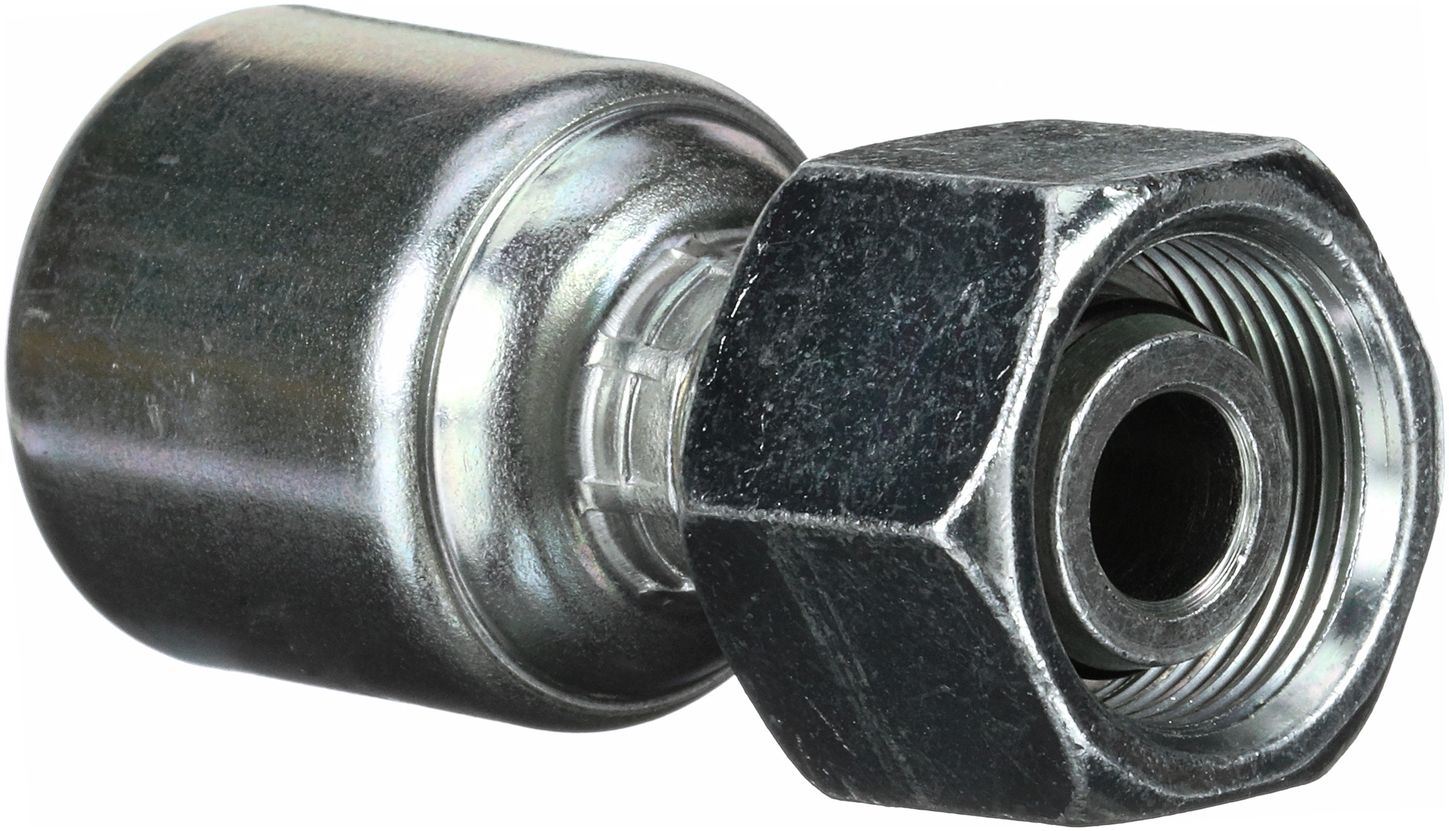

Gates G25720-1225 (12G-25FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
SKU: G25720-1225Cross reference: G257201225TEXF2-1236-DHFSUPC/EAN: 072053206241
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$58.69
EachLow stock
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25720-1225 |
|---|---|
| Cross reference | G257201225, TEXF2-1236-DHFS |
| UPC/EAN | 072053206241 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 1 7/16" (23) |
| Gates Code | G25 |
You may also like
Gates G25720-1625 (16G-25FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$62.95Each
Gates G25730-1225 (12G-25FDHORX90) Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 90 Bent Tube (MegaCrimp)
$60.14EachGates G25720-0614 (6G-14FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$26.79EachGates G25720-0410 (4G-10FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$21.80EachGates G25720-0612 (6G-12FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
$31.35Each

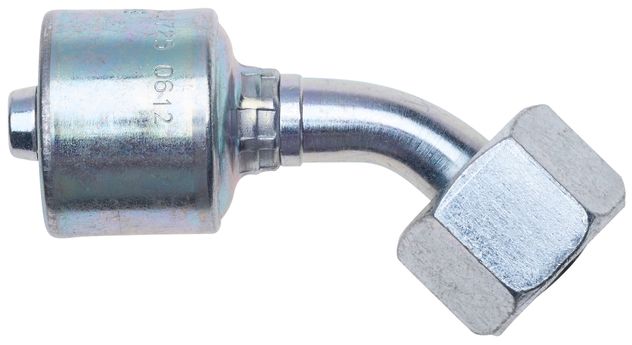

Gates G25725-1225 (12G-25FDHORX45) Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 45 Bent Tube (MegaCrimp)
