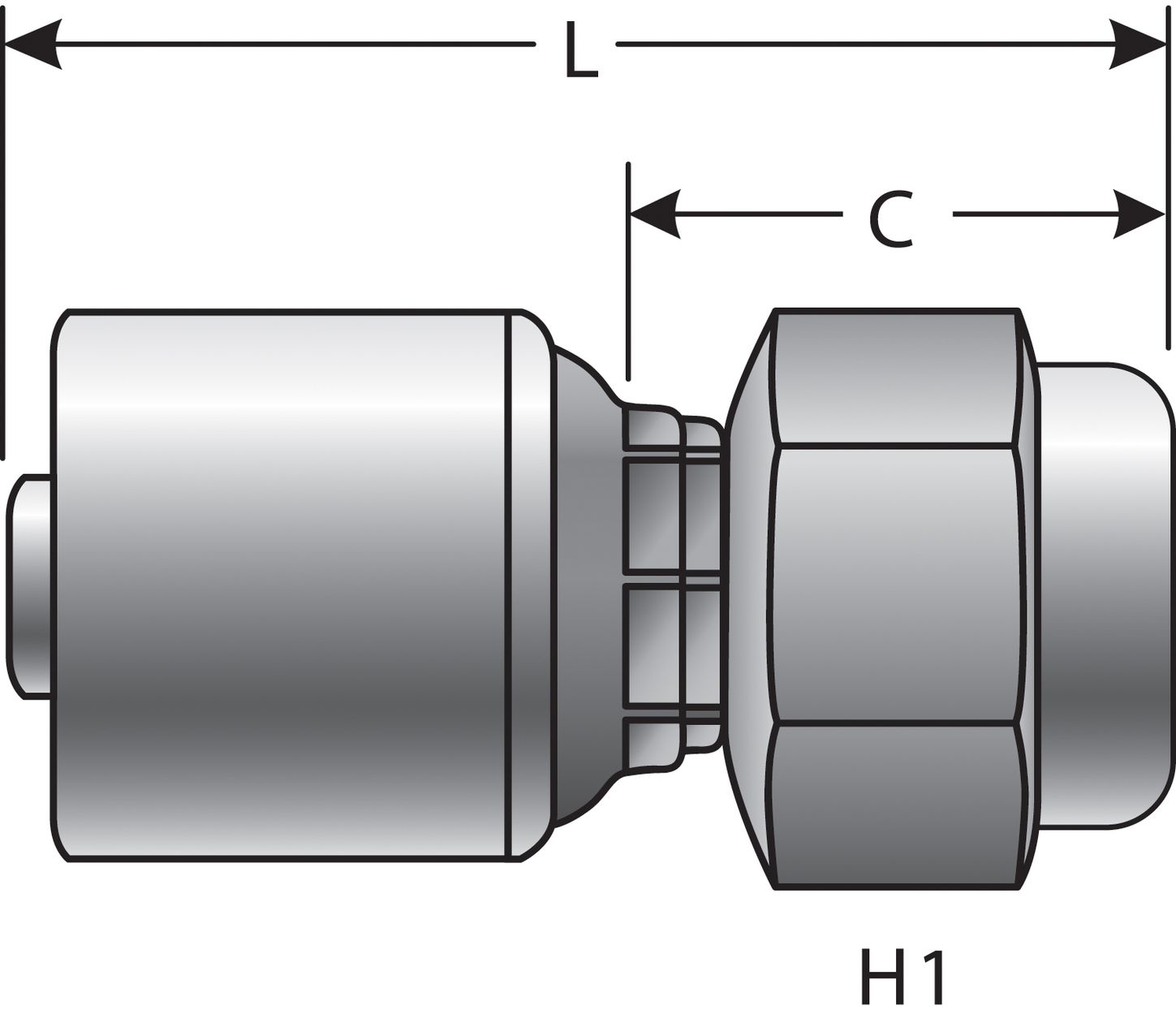

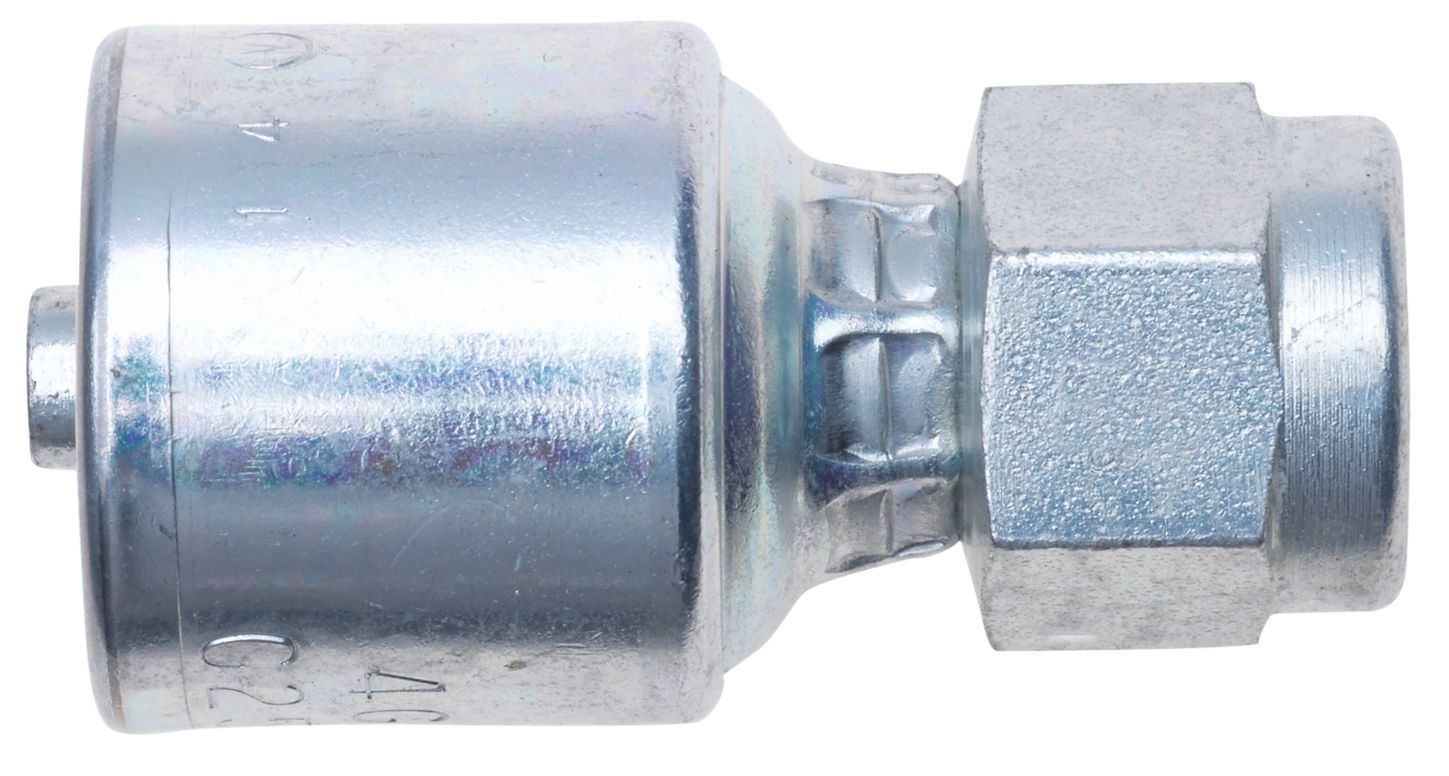

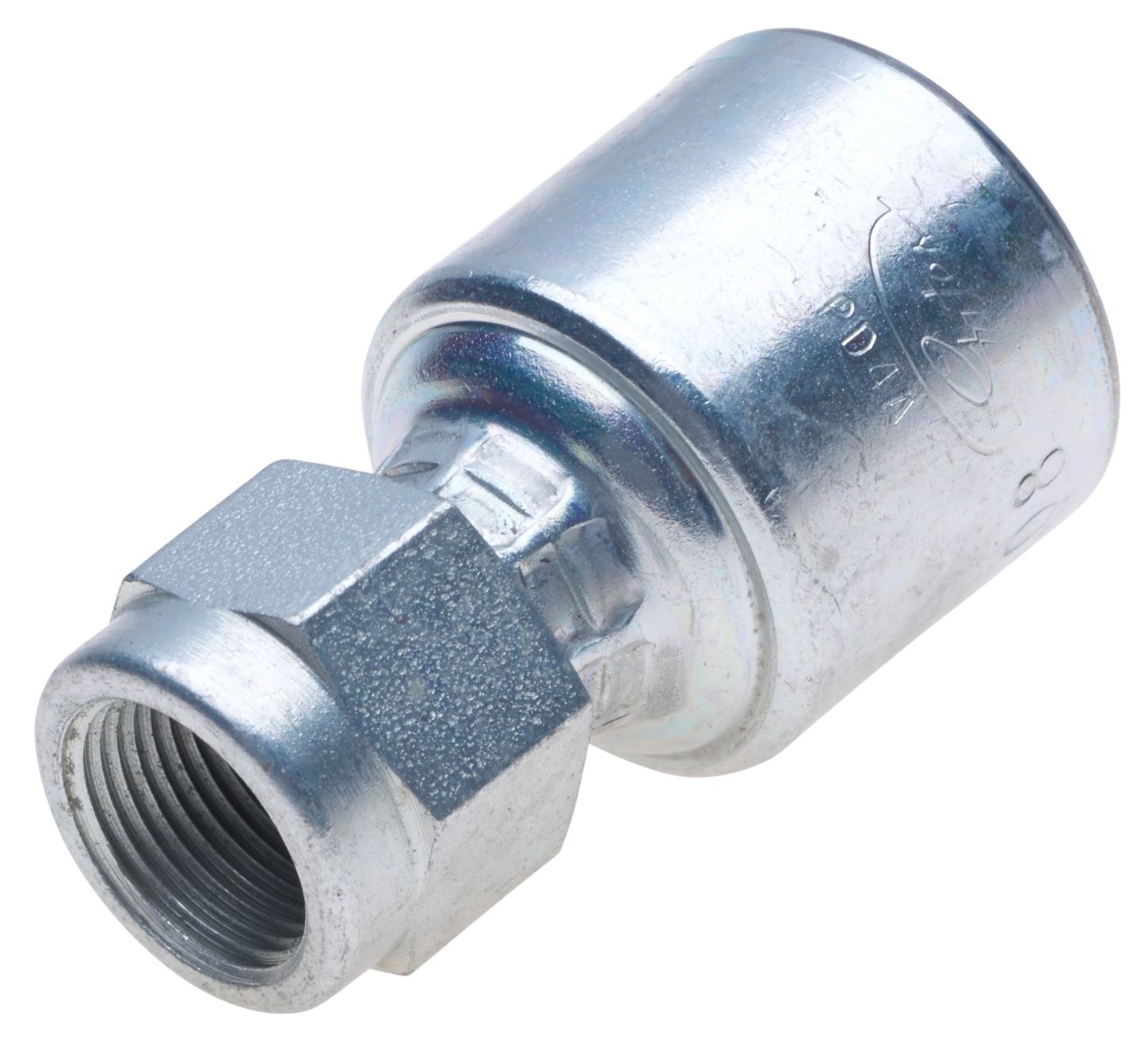

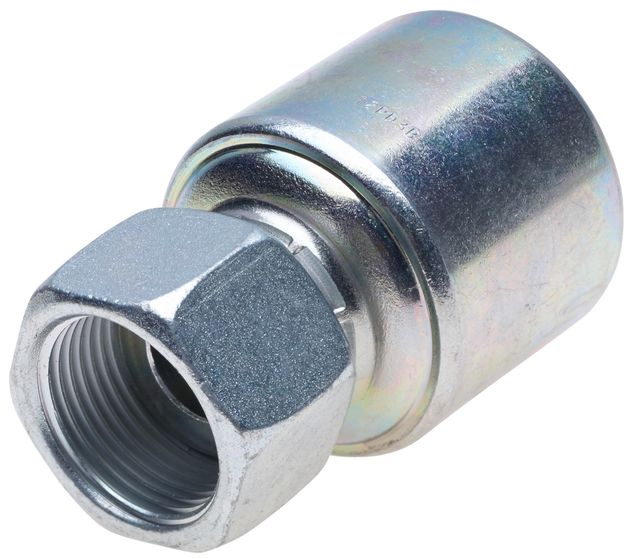

Gates G25561-0608 (6G-8FG) Female Grease (MegaCrimp)
SKU: G25561-0608Cross reference: G255610608UPC/EAN: 072053545746
Female Grease (MegaCrimp)





$19.65
EachLow stock
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25561-0608 |
|---|---|
| Cross reference | G255610608 |
| UPC/EAN | 072053545746 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | No |
| Thread Configuration | Female Grease (FG) |
| Inside Diameter | 3/8" (06) |
| Bend Angle | Straight |
| Seal Type | Thread Interference |
| Thread Size | 1/2" (08) |
| Gates Code | G25 |
