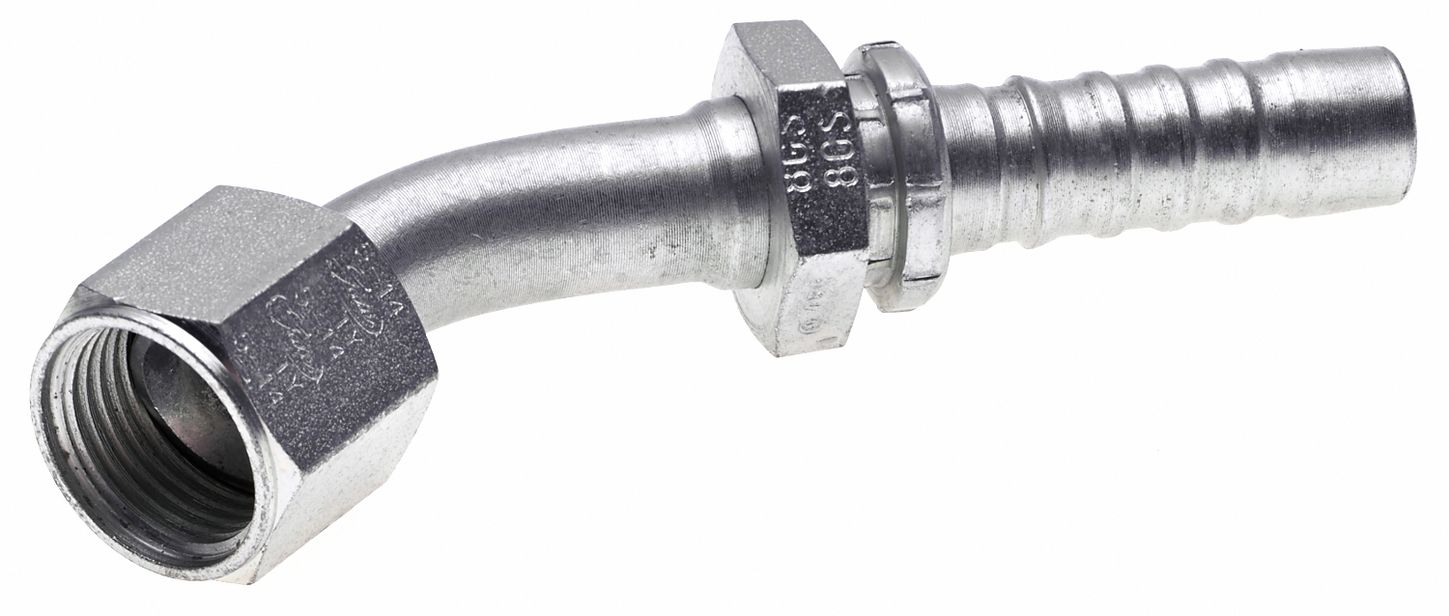

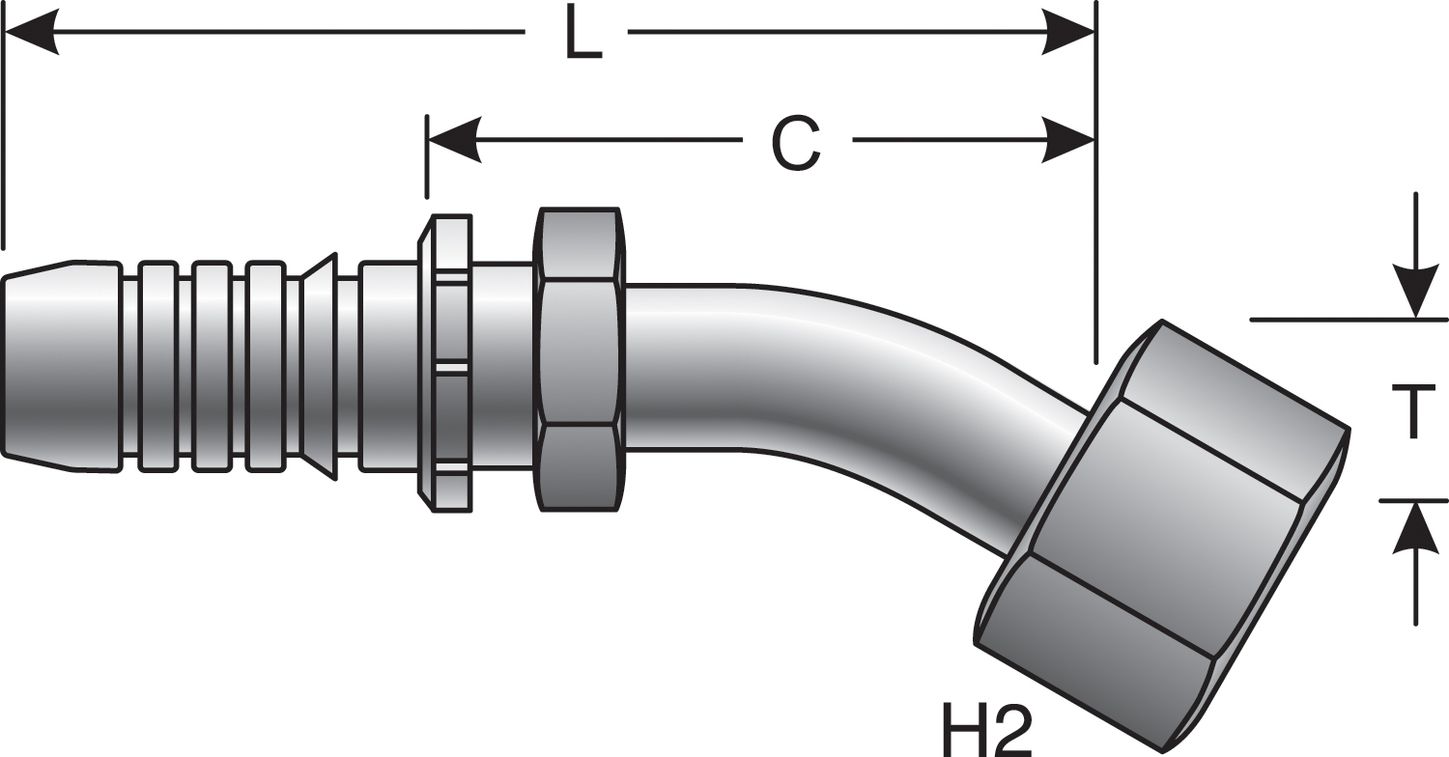

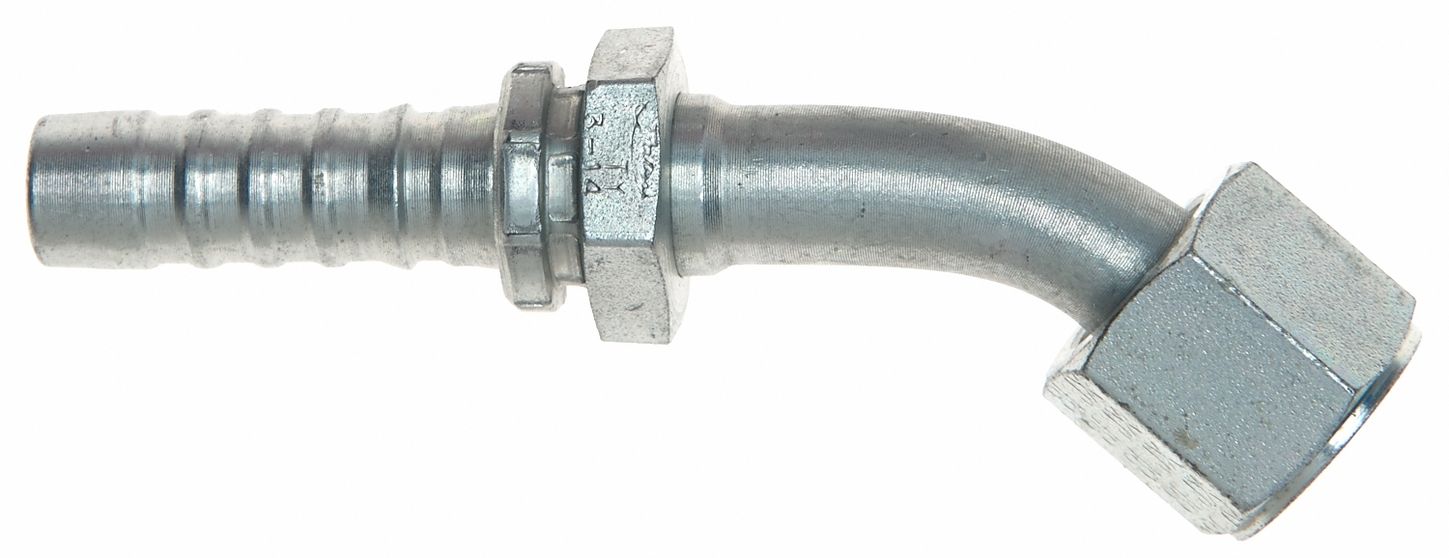

Gates G20175-1616 (16GS-16FJX45M) Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
SKU: G20175-1616Cross reference: G201751616GATG20174-1616TEXF4-1616-JFS45MUPC/EAN: 072053296969
Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
$87.51
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20175-1616 |
|---|---|
| Cross reference | G201751616, GATG20174-1616, TEXF4-1616-JFS45M |
| UPC/EAN | 072053296969 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 1" (16) |
| Bend Angle | 45° |
| Seal Type | Mated Angle |
| Thread Size | 1 5/16" (21) |
| Gates Code | G20 |
