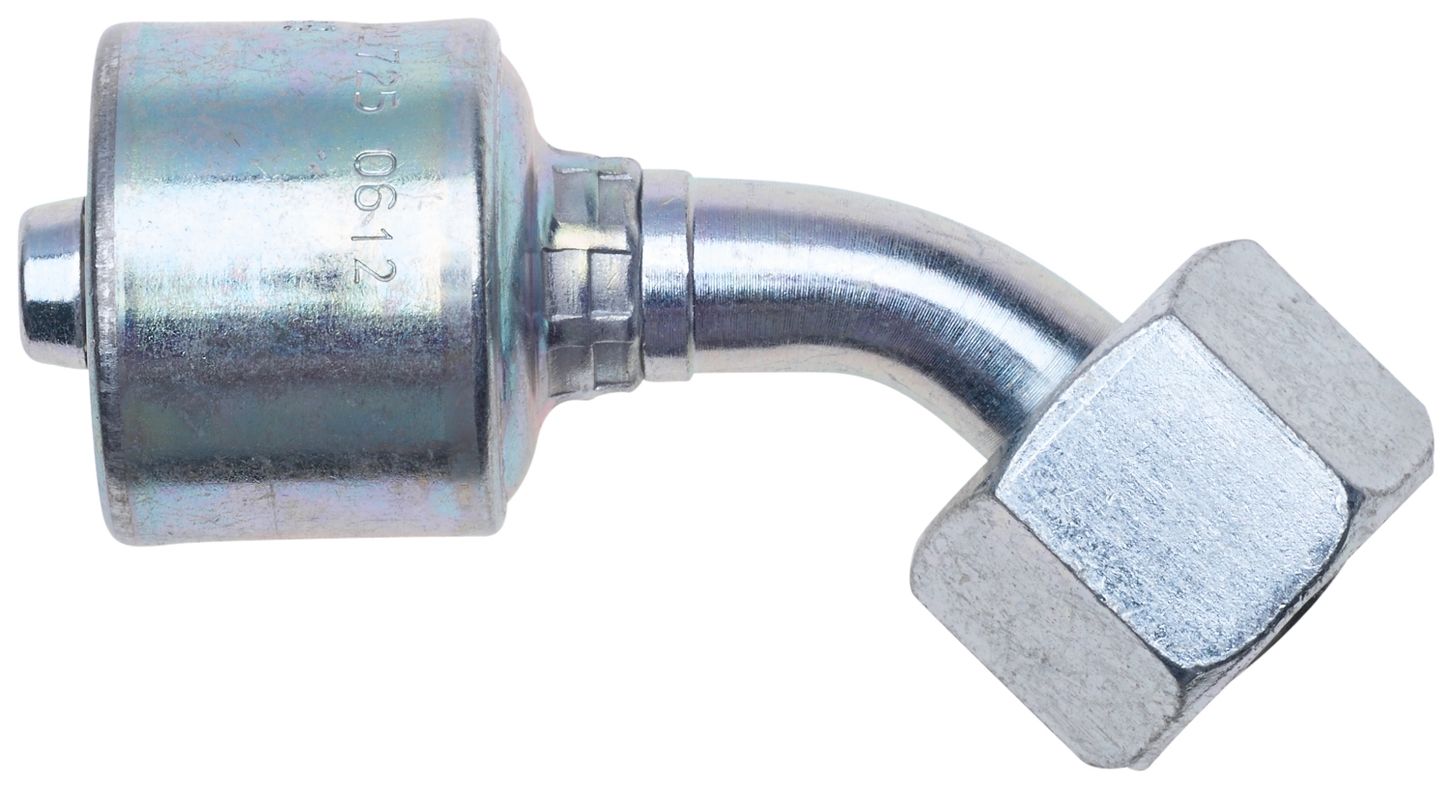

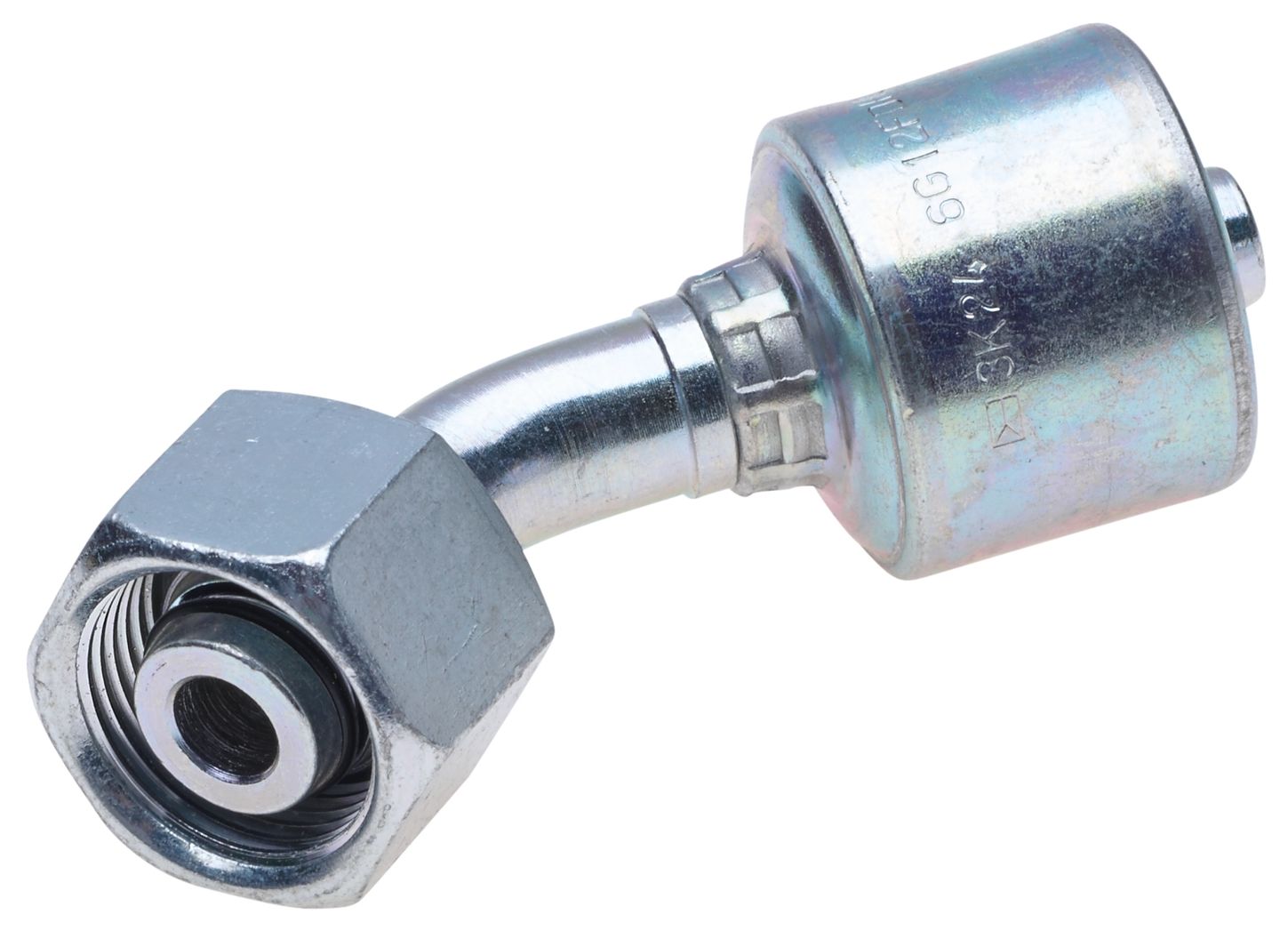

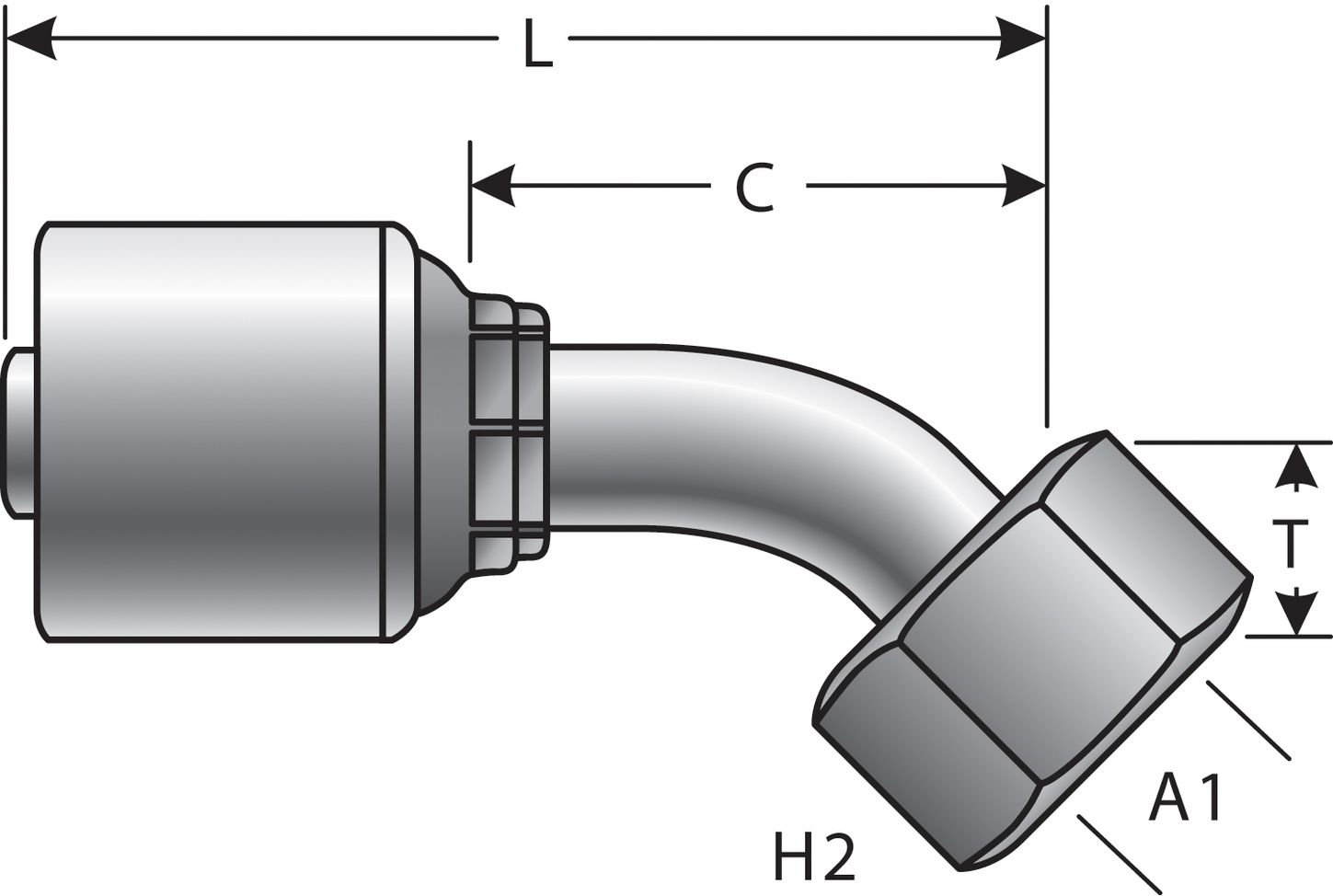

Gates G25725-0612 (6G-12FDHORX45) Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 45 Bent Tube (MegaCrimp)
SKU: G25725-0612Cross reference: G257250612TEXF2-0620-DHFS45UPC/EAN: 072053206302
Female DIN 24 Cone Swivel - Heavy Series with O-Ring - 45 Bent Tube (MegaCrimp)
$70.00
EachUsually Ships in 1-5 Business Days
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25725-0612 |
|---|---|
| Cross reference | G257250612, TEXF2-0620-DHFS45 |
| UPC/EAN | 072053206302 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 3/8" (06) |
| Bend Angle | 45° |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 13/16" (13) |
| Gates Code | G25 |
