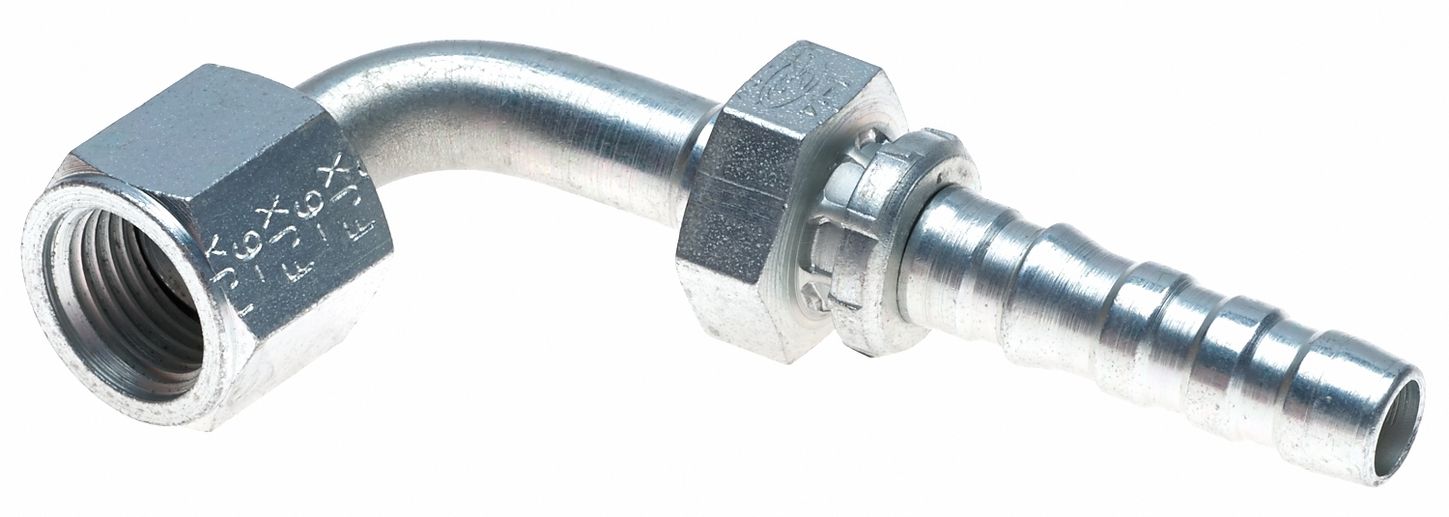

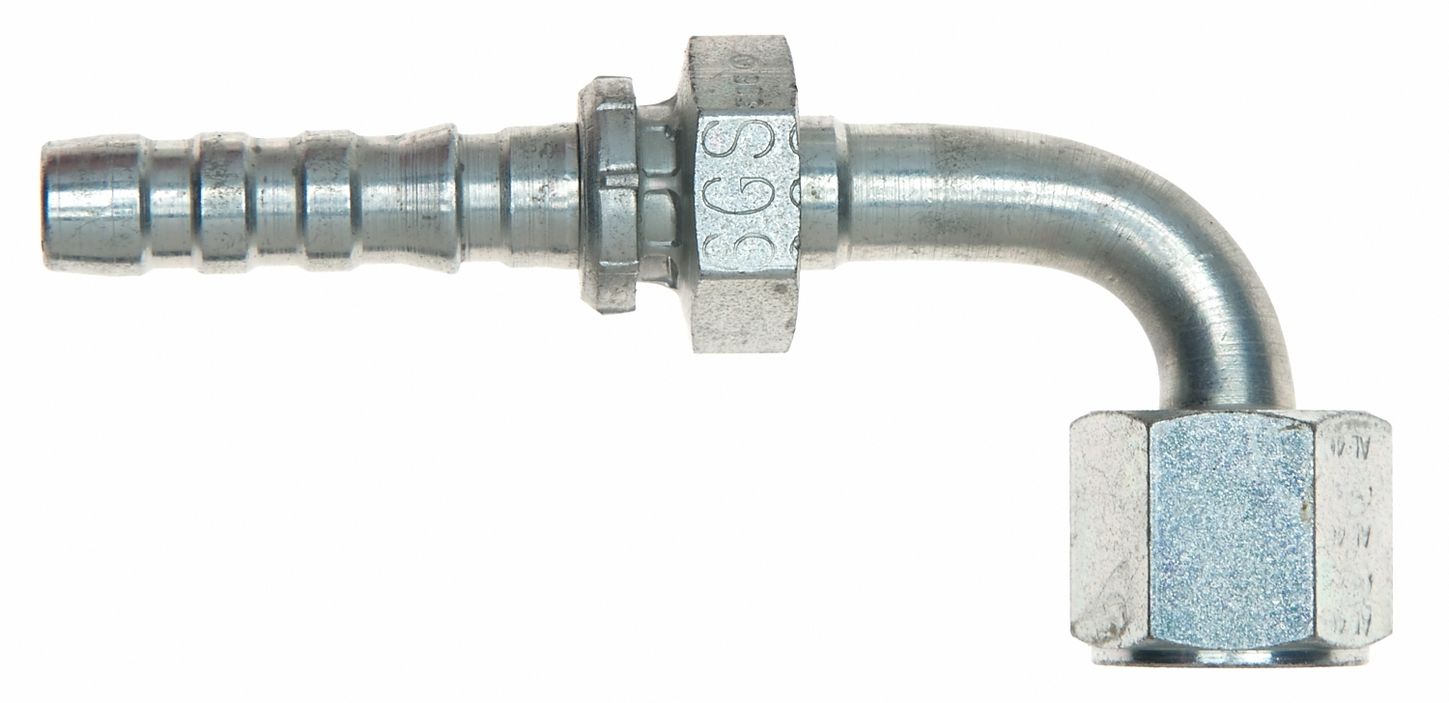

Gates G20181-0808 (8GS-8FJX90L) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
SKU: G20181-0808Cross reference: G201810808GATG20179-0808GATG20180-0808UPC/EAN: 072053310726
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
$28.03
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20181-0808 |
|---|---|
| Cross reference | G201810808, GATG20179-0808, GATG20180-0808 |
| UPC/EAN | 072053310726 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 1/2" (08) |
| Bend Angle | 90° |
| Seal Type | Mated Angle |
| Thread Size | 3/4" (12) |
| Gates Code | G20 |
