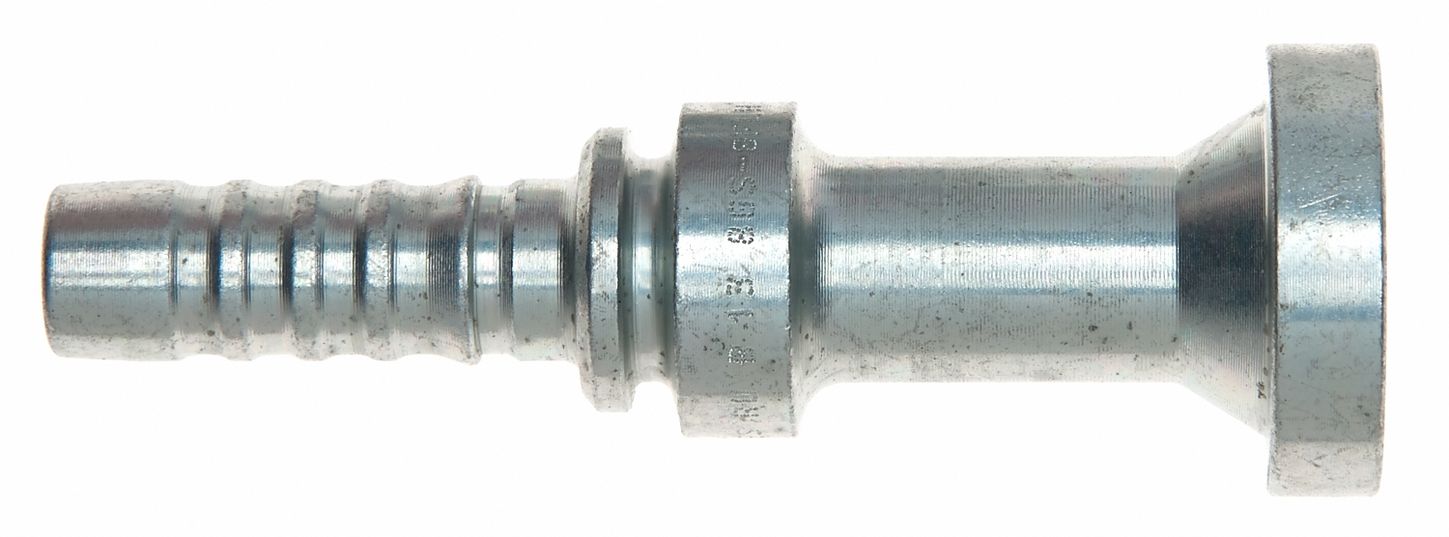

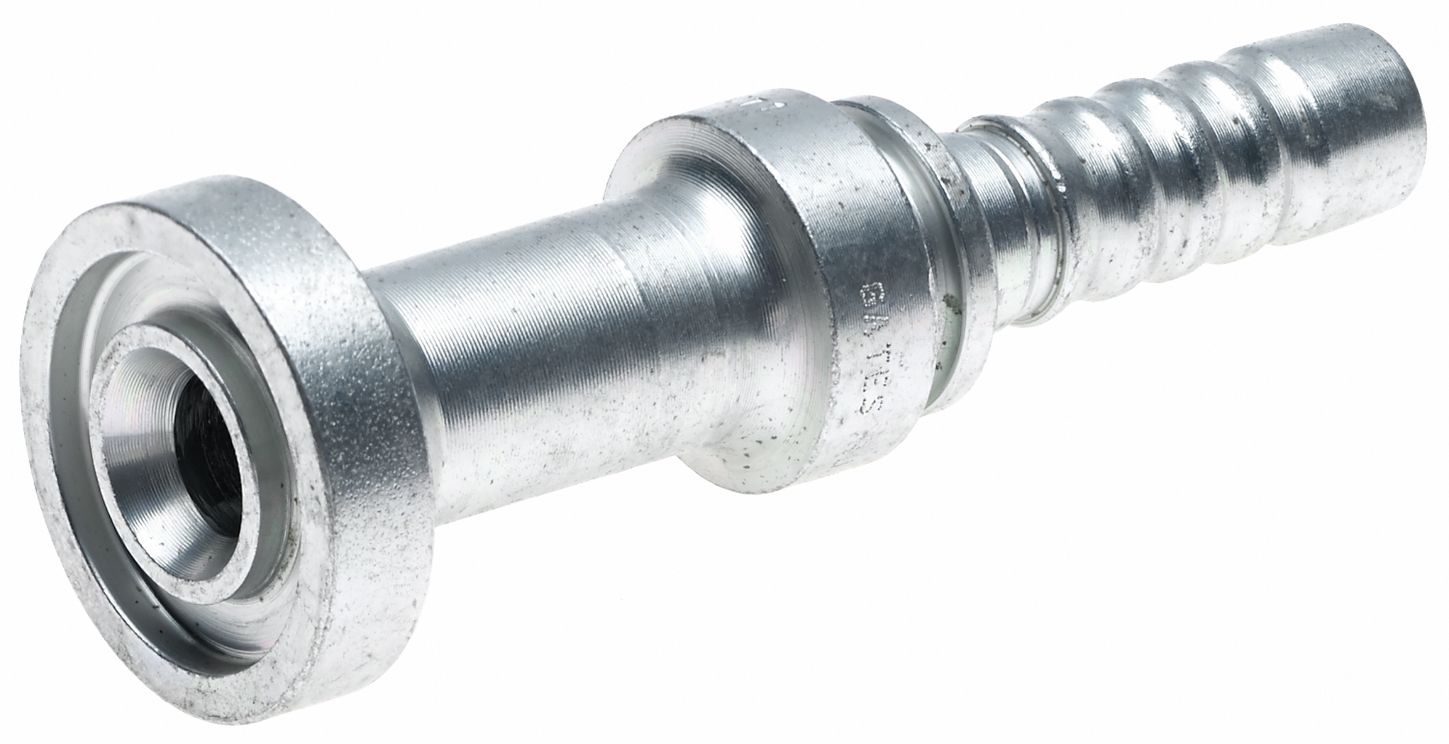

Gates G20350-1620 (16GS-20FLH) 16GS-20FLH Code 62 O-Ring Flange Heavy Hydraulic Fitting (GlobalSpiral)

Code 62 O-Ring Flange Heavy (GlobalSpiral)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. All FLH sizes maximum working pressure of 6,000 psi. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.

• “Bite-the-wire” crimp for improved coupling retention
