Webb Wheel 20231--3T 10 Stud Cast Hub, 11.25 diameter Bolt Circle, Uses Outboard Drum, (M22 x 1.5) Serrated Stud

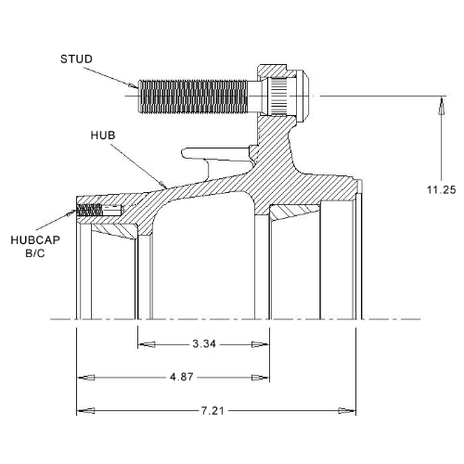

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. This hub designed for dual wheel mounting or single wheels with ½” maximum offset.

Includes Studs (not pictured)

HUB INFORMATION Part Number: 20231–3T Hub Number: 2023 Description: 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Hub Material: Cast Mounting Type: FN Drum Type: Outboard Disc Wheel: Steel (Dual) Wheel Stud: 101162 Stud Stand Out: 3.25 ABS Ring: Direct Machined ABS Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B Drum Type: Outboard Number of Studs: 10 Bolt Circle: 11.25 Stud Description: M22 x 1.5MM Serrated Stud Outer Bearing Cup: HM212011 Outer Bearing Cone: HM212049 Inner Bearing Cup: HM218210 Inner Bearing Cone: HM218248 Webb Axle Group: 2 Cup Code: 1 Notes: Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. This hub designed for dual wheel mounting or single wheels with ½” maximum offset. Grease Hubcap Kit: 73655.
