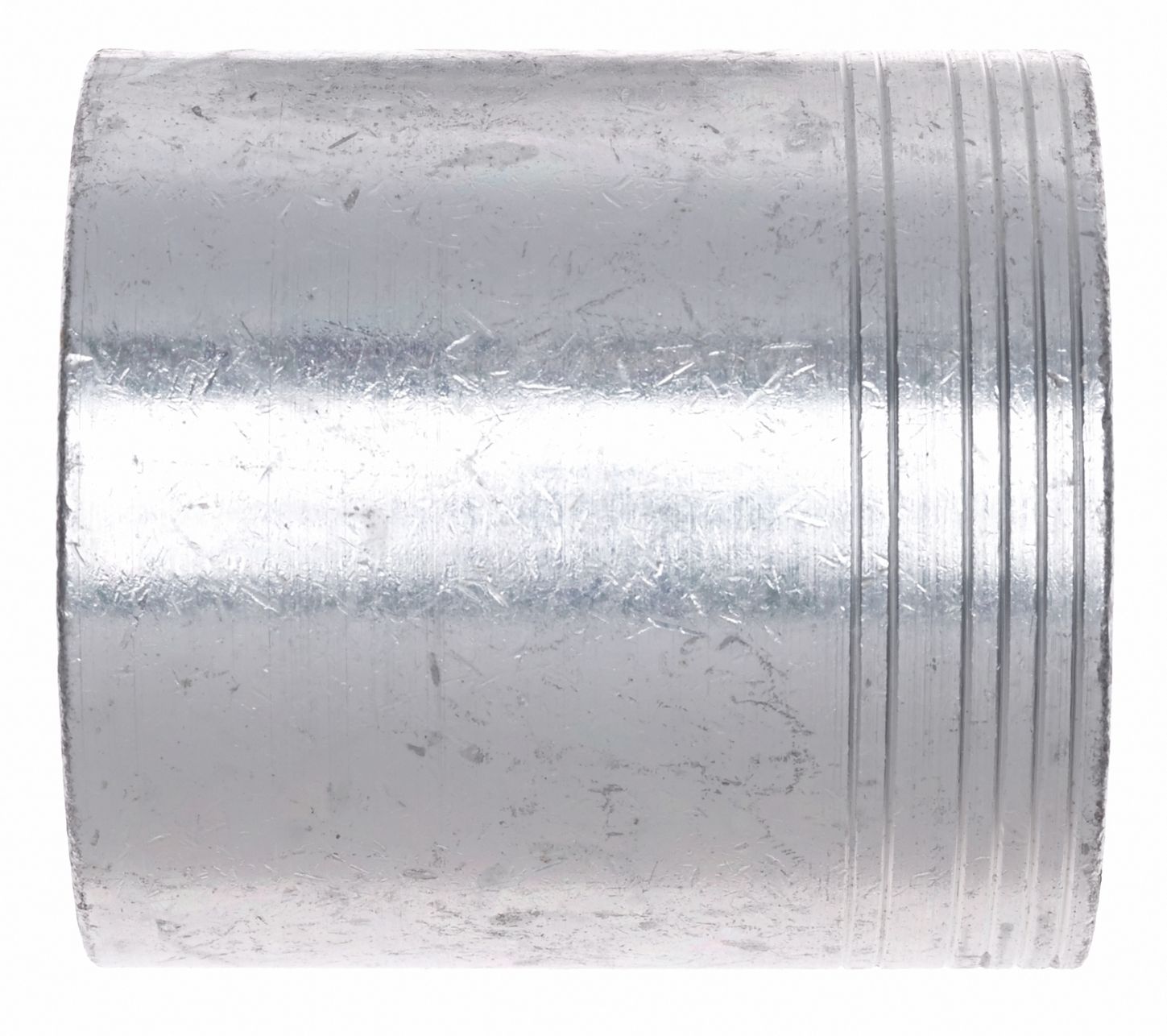

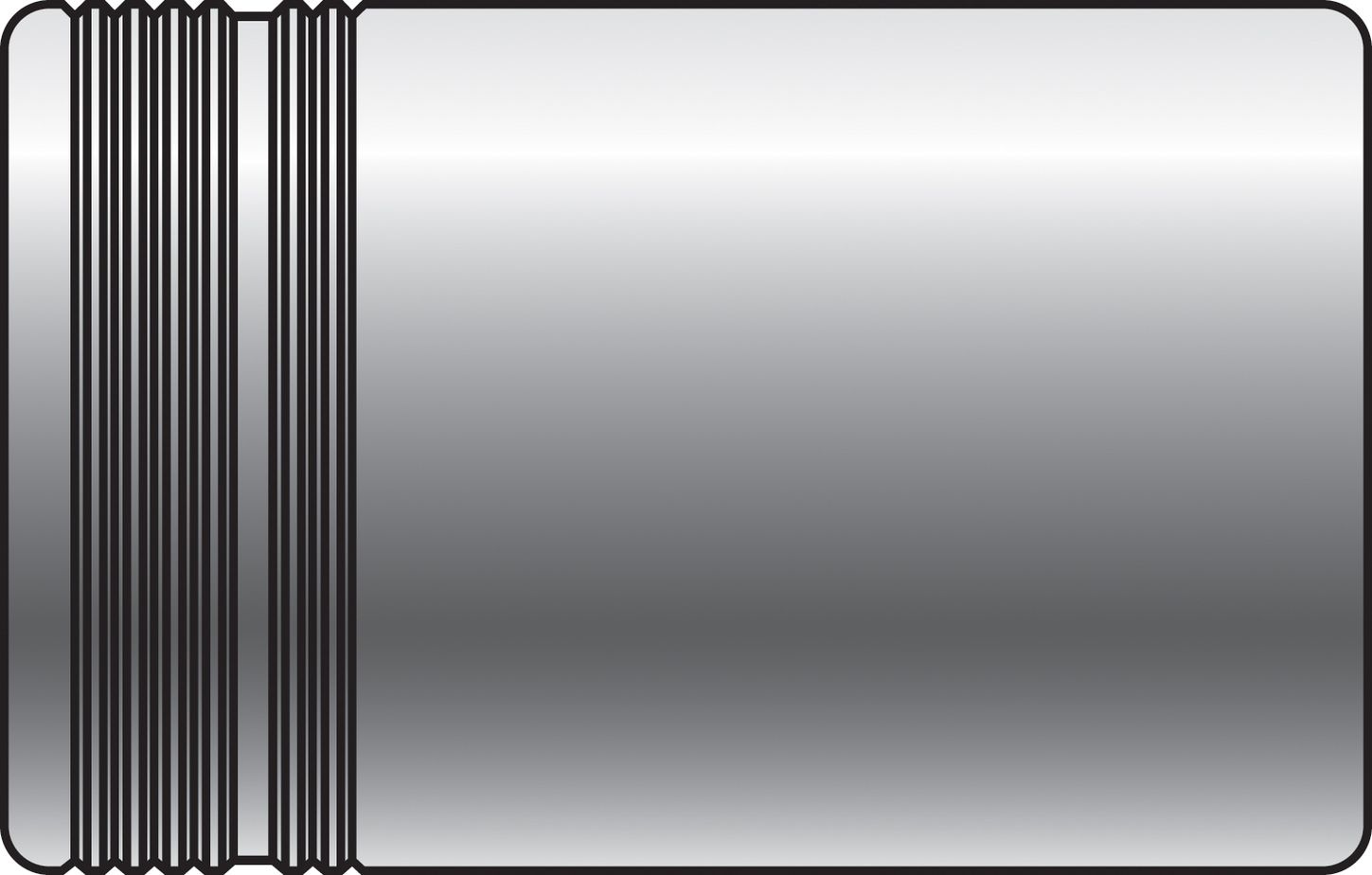

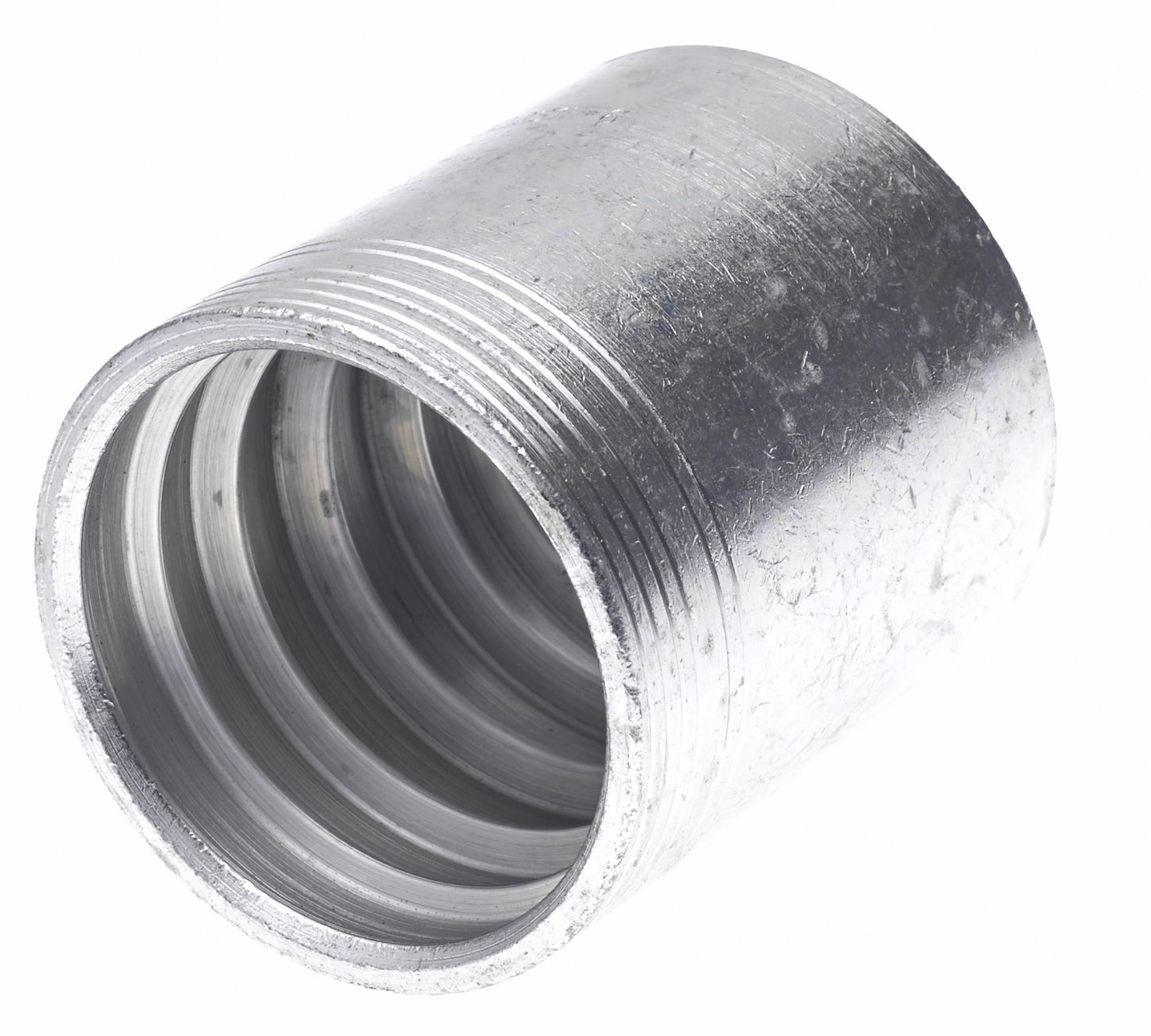

Gates G20995-0620 (20GS1F-6) GS Ferrule for 6-Spiral Hose (GlobalSpiral)

SKU: G20995-0620Cross reference: G209950620UPC/EAN: 072053238495

GS Ferrule for 6-Spiral Hose (GlobalSpiral)

$34.21
Each
In stock
remove
add

Product Details

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.

  • “Bite-the-wire” crimp for improved coupling retention

Specifications

SKUG20995-0620
Cross referenceG209950620
UPC/EAN072053238495
Coupling StyleGlobalSpiral Couplings
Inside Diameter1 1/4" (20)
Ferrule Series Code20GS1F-6
Gates CodeG20
