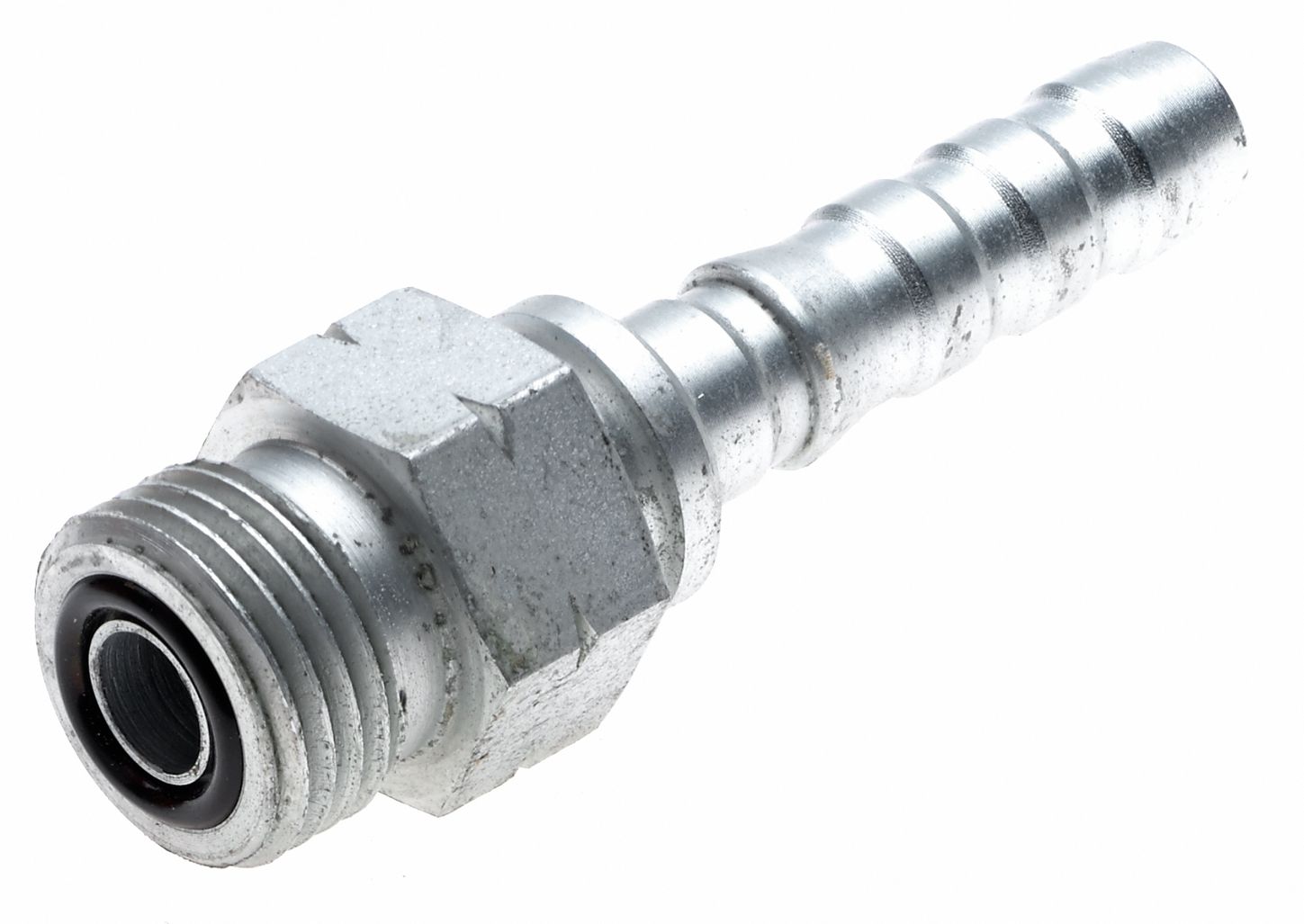

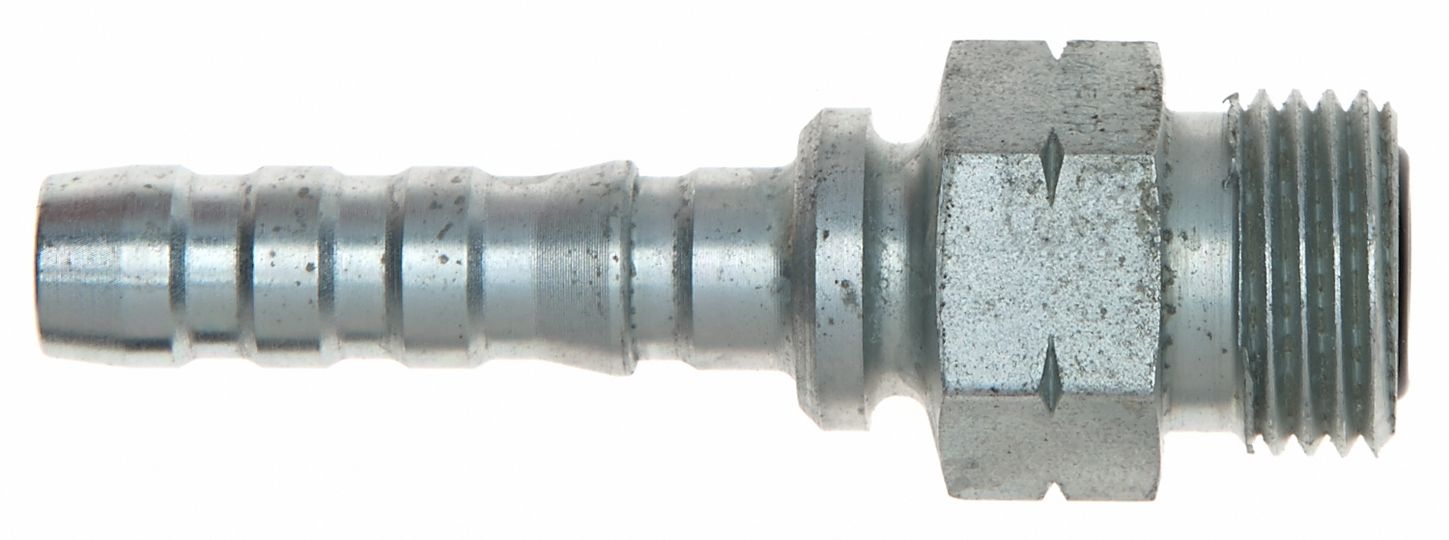

Gates G20225-1216 (12GS-16MFFOR) Male Flat-Face O-Ring (GlobalSpiral)

Male Flat-Face O-Ring (GlobalSpiral)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Includes Peroxide-cured O-Ring. Metric Hex per ISO Draft International Standard 12151-1. Utilizes SAE J1453 Captive O-Ring Groove for improved O-Ring retention. MGS Couplings for use with MC4-20 Crimper Only.

• “Bite-the-wire” crimp for improved coupling retention
