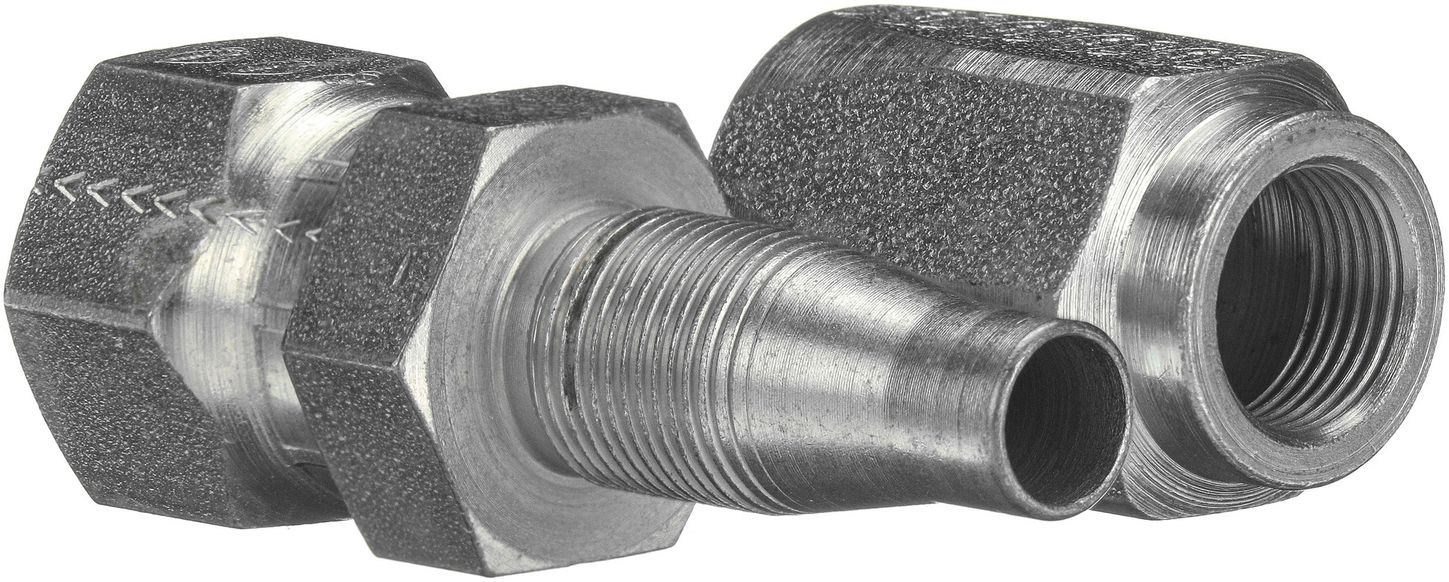

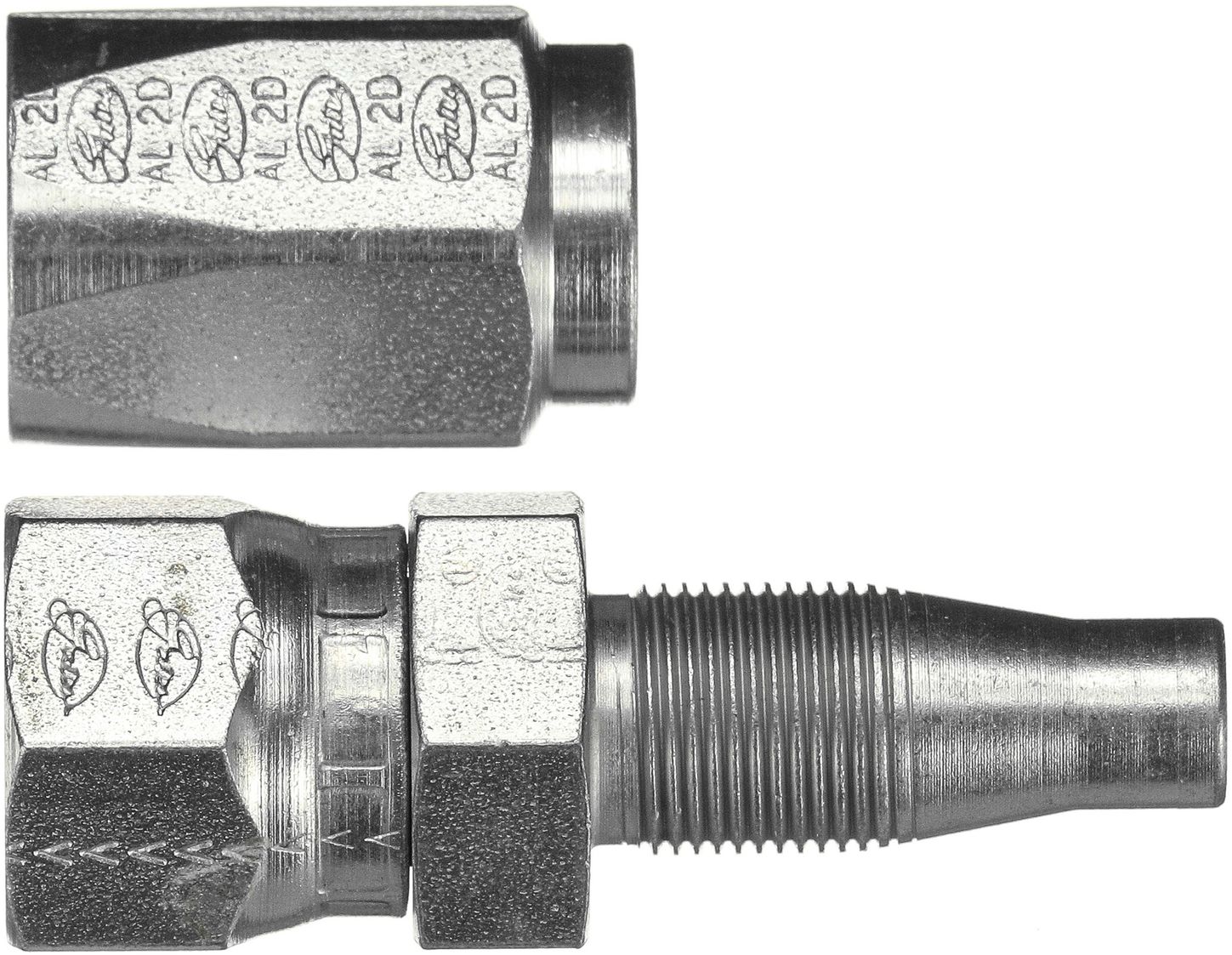

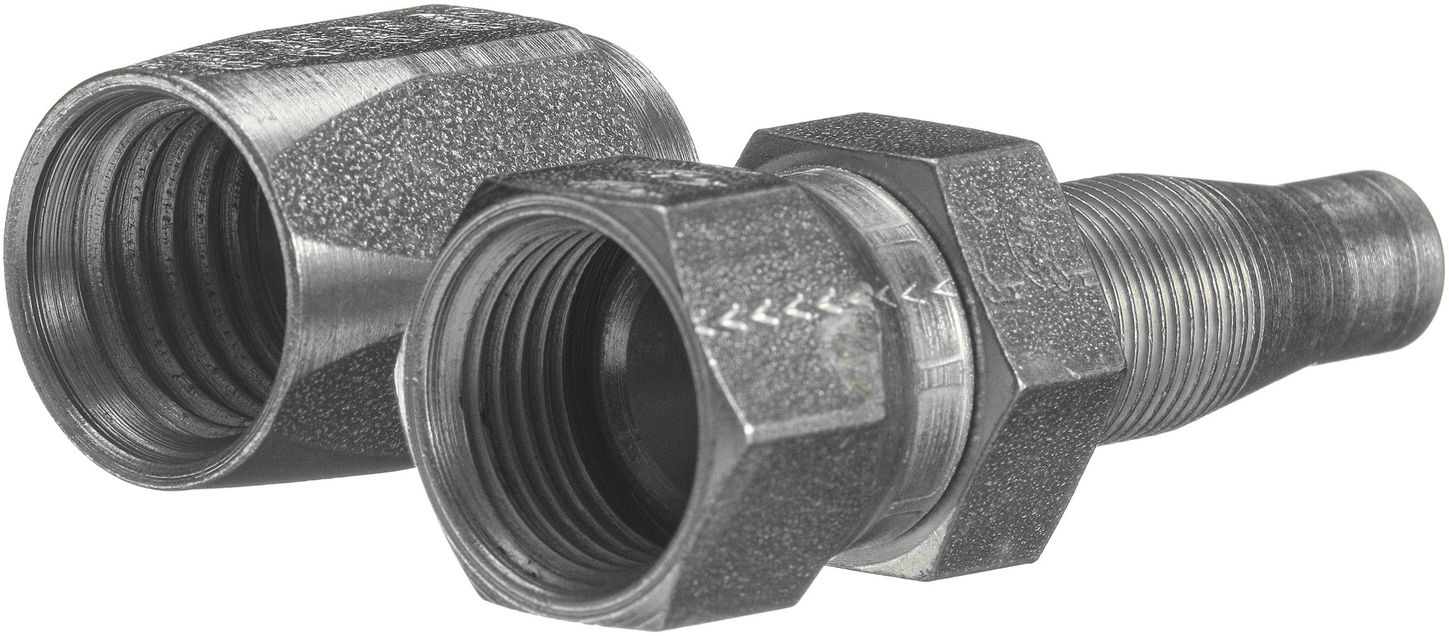

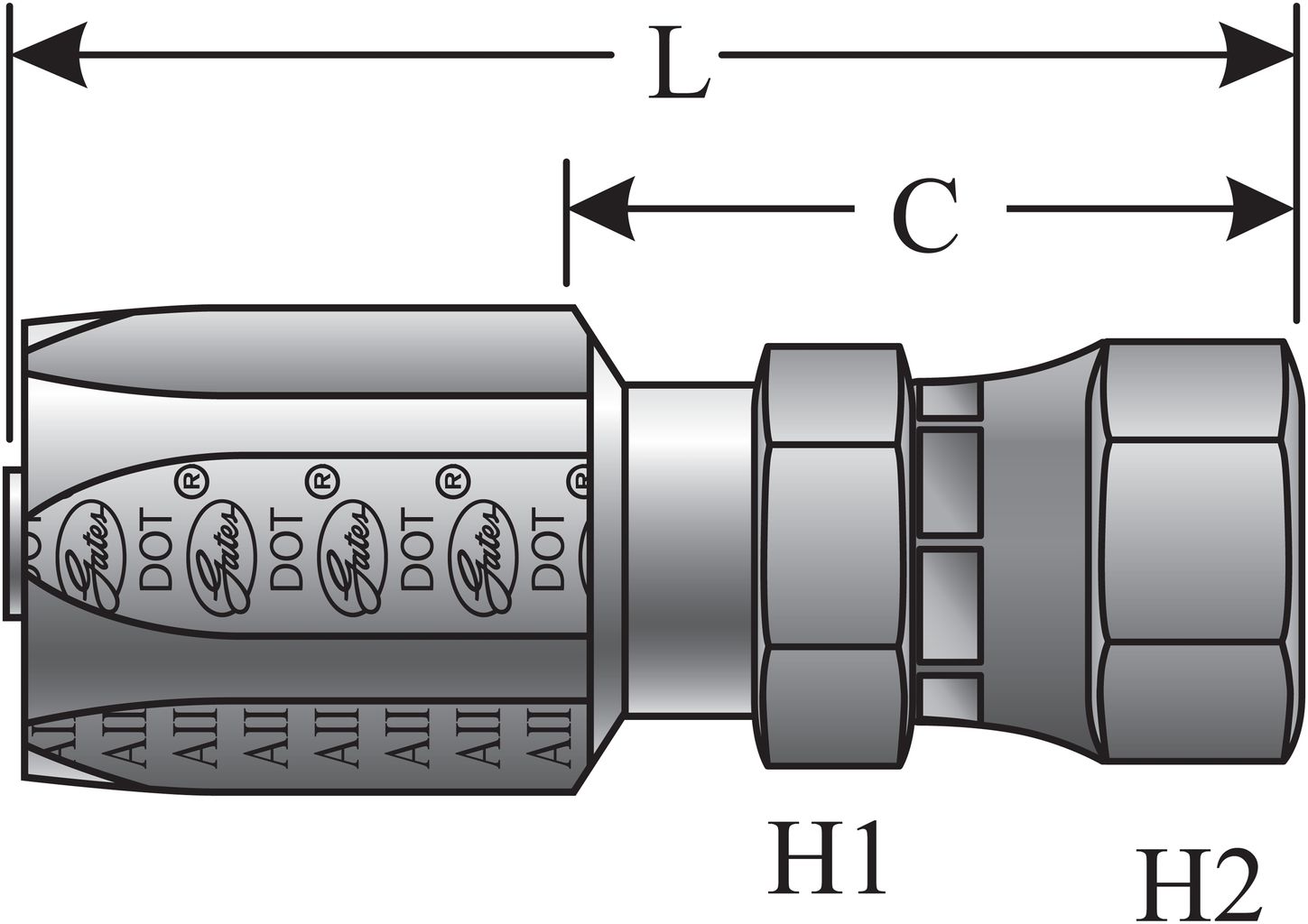

Gates G35210-0404 (4C5E-4RFJSX) 4C5E-4RFJSX Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5E Hose)
SKU: G35210-0404Cross reference: 4C5E-4RFJSX723801005G352100404UPC/EAN: 072053169065
Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5E Hose)
$8.77
EachLow stock
Product Details
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5E Hose
Specifications
| SKU | G35210-0404 |
|---|---|
| Cross reference | 4C5E-4RFJSX, 723801005, G352100404 |
| UPC/EAN | 072053169065 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC Dual Seat (FJS) |
| Inside Diameter | 3/16" (03) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 7/16" (07) |
| Gates Code | G35 |
