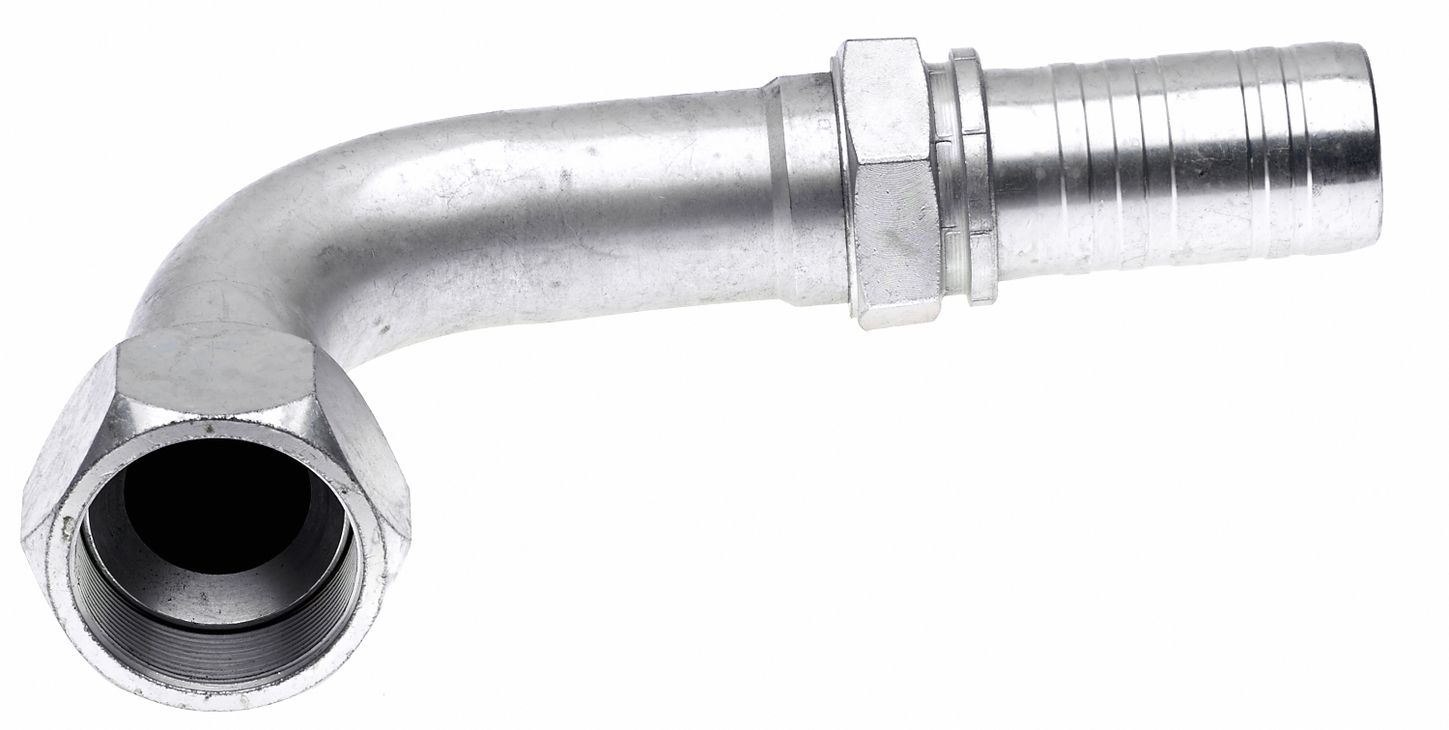

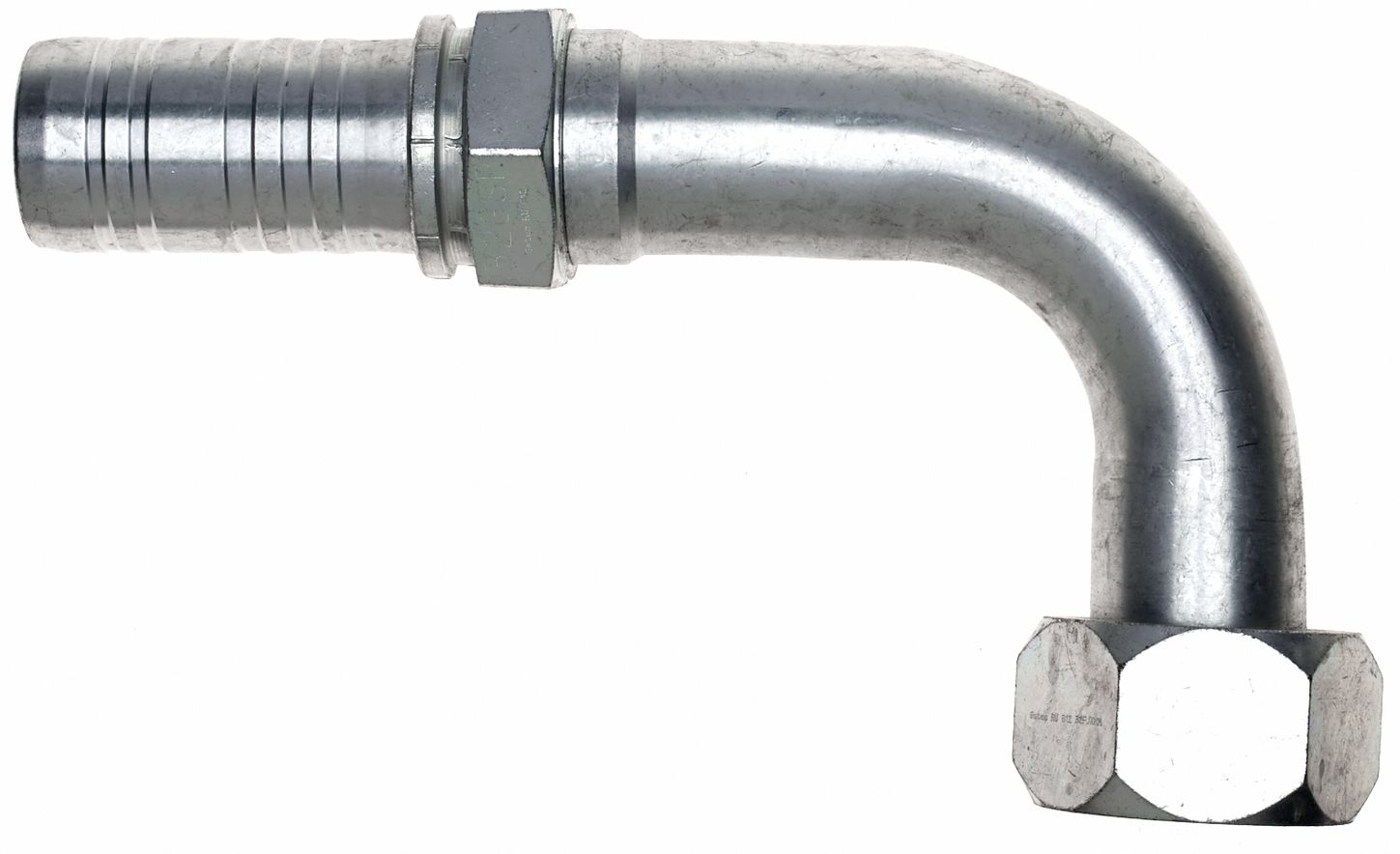

Gates G22179-2424 (24GSP-24FJX90-089) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral Plus)
SKU: G22179-2424Cross reference: G221792424GATG22180-2424TEXF6-2424-JFS90MUPC/EAN: 770075396963
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral Plus)
$97.69
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22179-2424 |
|---|---|
| Cross reference | G221792424, GATG22180-2424, TEXF6-2424-JFS90M |
| UPC/EAN | 770075396963 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 90° |
| Seal Type | Mated Angle |
| Thread Size | 1 7/8" (30) |
| Gates Code | G22 |
