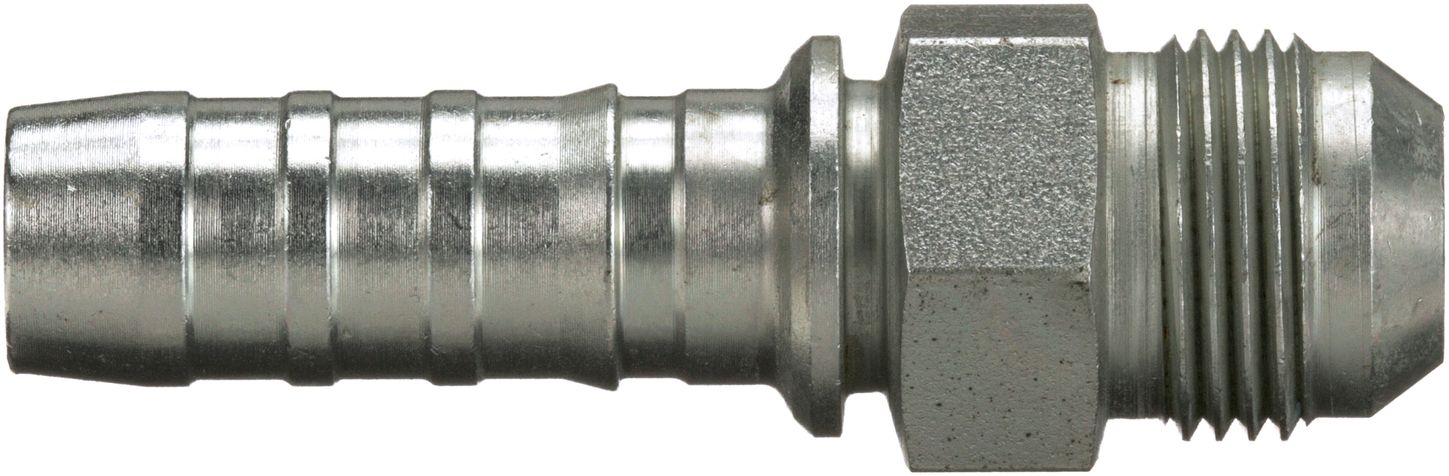

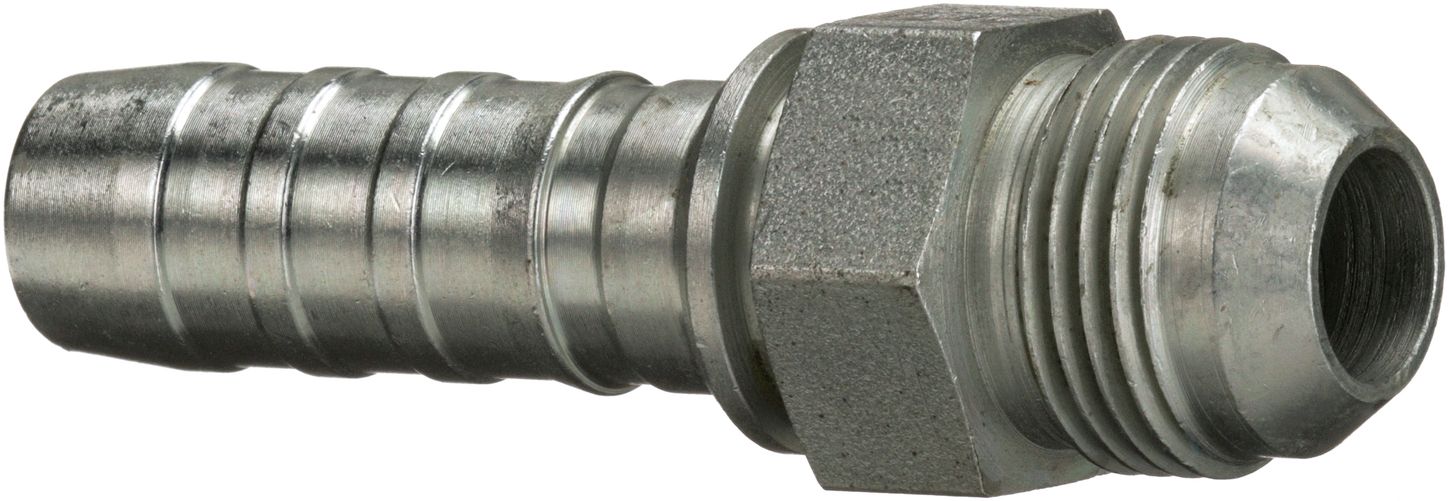

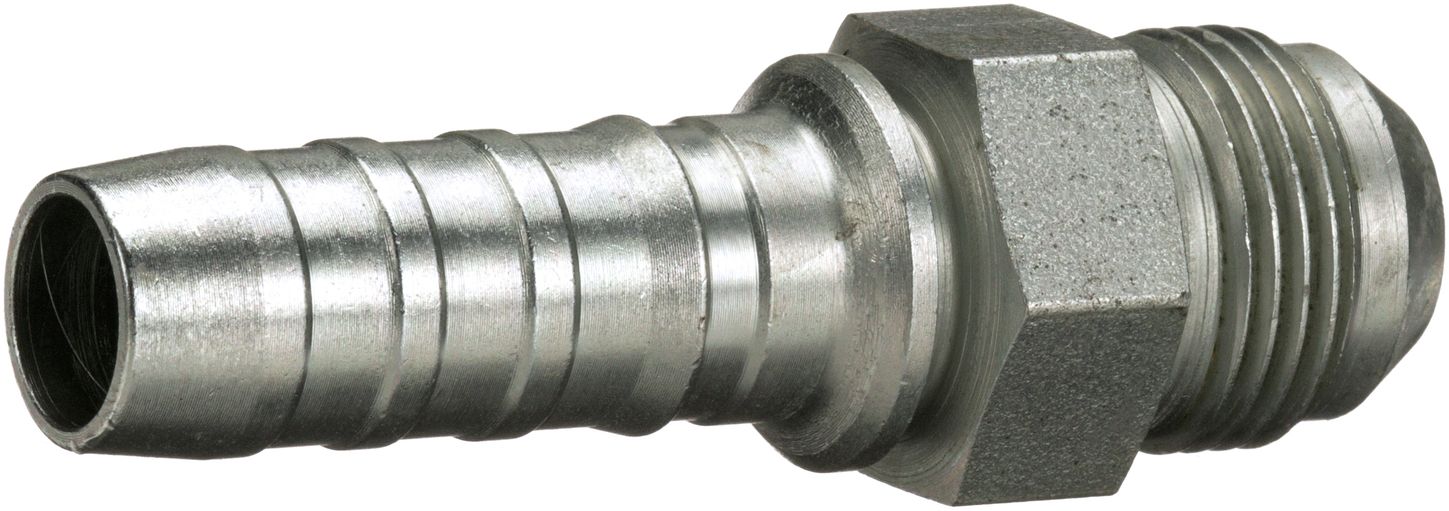

Gates G20165-1620 (16GS-20MJ) Male JIC 37 Flare (GlobalSpiral)
SKU: G20165-1620Cross reference: TEXF4-1620-JMUPC/EAN: 072053297164
Male JIC 37 Flare (GlobalSpiral)
$34.35
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20165-1620 |
|---|---|
| Cross reference | TEXF4-1620-JM |
| UPC/EAN | 072053297164 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Male JIC (MJ) |
| Inside Diameter | 1" (16) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 5/8" (26) |
| Gates Code | G20 |
