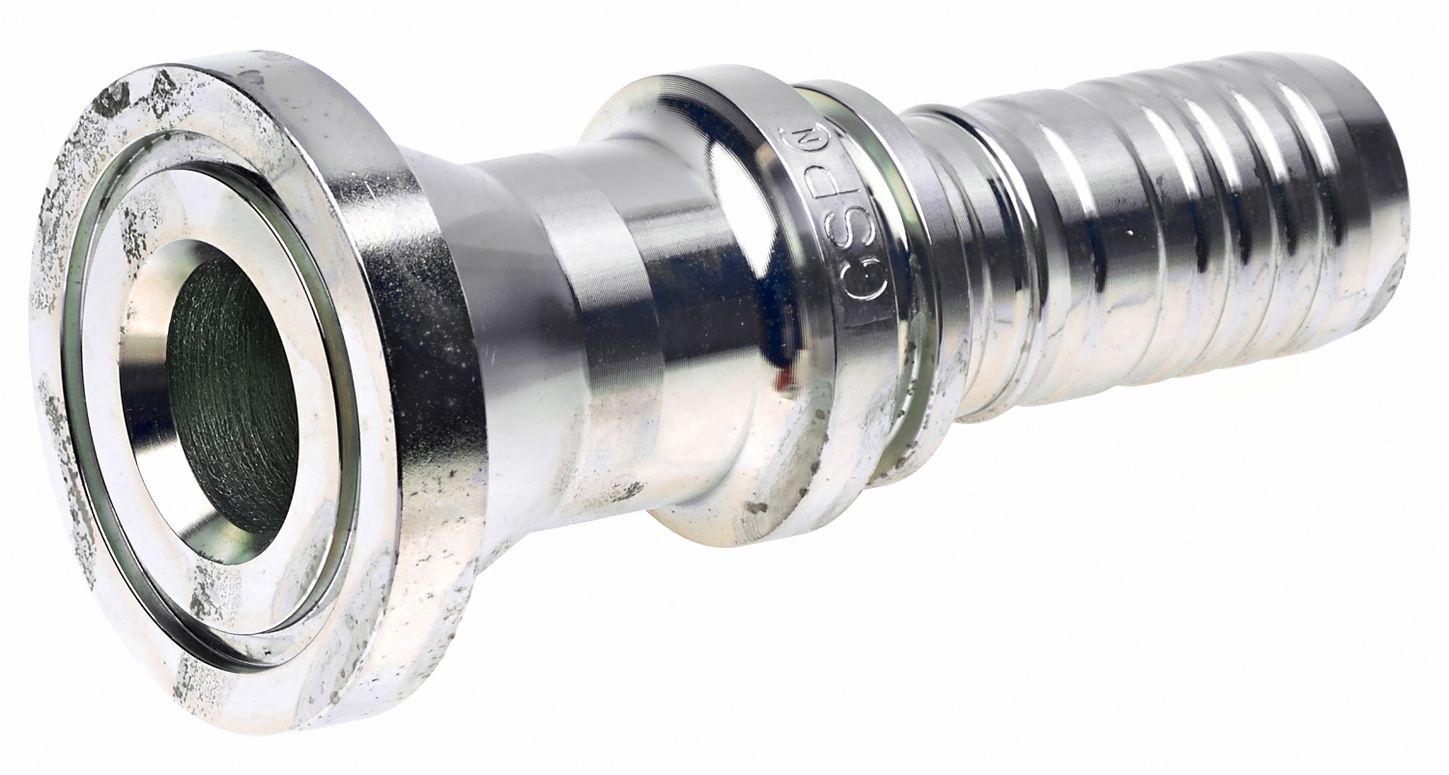

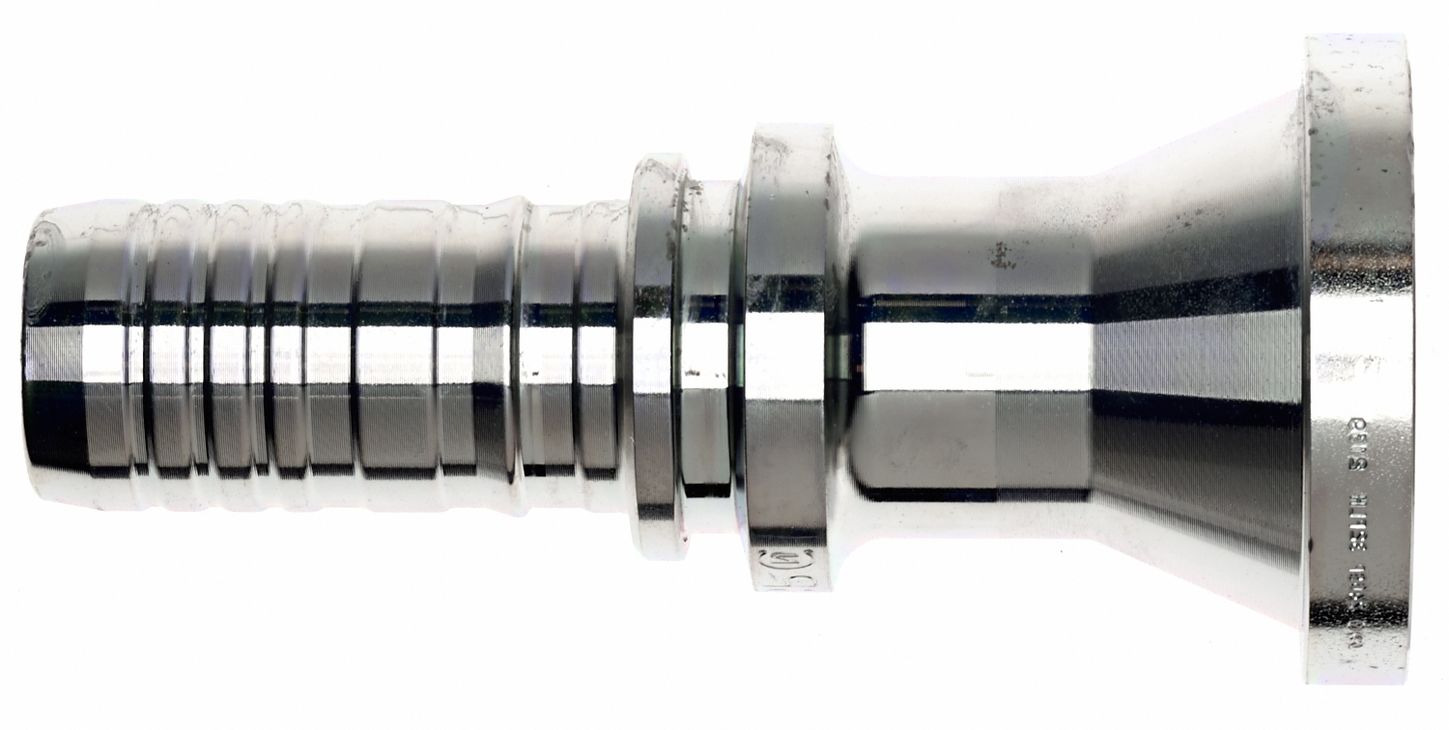

Gates G22350-2424 (24GSP-24FLH) Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)
SKU: G22350-2424Cross reference: G223502424TEXF6-2424-FLHUPC/EAN: 770075374541
Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)
$76.61
EachIn stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Separate ferrules are required for 4-spiral hose and wire braid hose.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G22350-2424 |
|---|---|
| Cross reference | G223502424, TEXF6-2424-FLH |
| UPC/EAN | 770075374541 |
| Coupling Style | GlobalSpiral Plus Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 1/2" (24) |
| Gates Code | G22 |
You may also like
Gates G22350-3232 (32GSP-32FLH) Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)
$101.78Each
Gates G22350-2432 (24GSP-32FLH) Code 62 O-Ring Flange Heavy (GlobalSpiral Plus)
$106.57Each
Gates G22300-2424 (24GSP-24FL) Code 61 O-Ring Flange (GlobalSpiral Plus)
$59.96Each
Gates G22357-2424 (24GSP-24FLH45M) Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral Plus)
$113.12Each

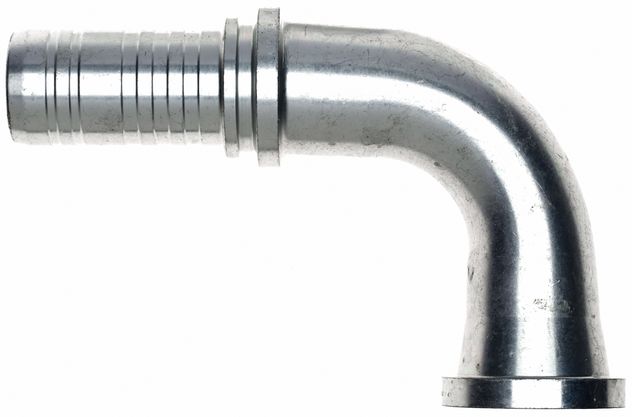

Gates G22365-2424 (24GSP-24FLH90-094) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral Plus)
$125.81Each
Gates G22306-2424 (24GSP-24FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral Plus)
$78.32Each
Gates G22370-2424 (24GSP-24FLFF) Code 61 Flange Without O-Ring Groove (GlobalSpiral Plus)
$91.85Each
Gates G22315-2424 (24GSP-24FL90M) Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral Plus)
$89.27Each

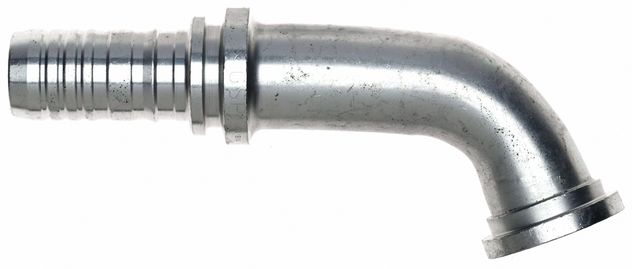

Gates G22357-2432 (24GSP-32FLH45S) Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral Plus)
$157.29Each

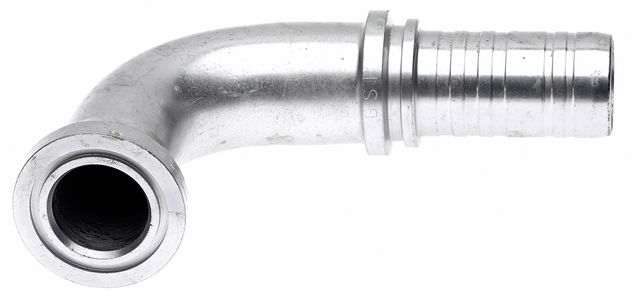

Gates G22364-2432 (24GSP-32FLH90S) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral Plus)
