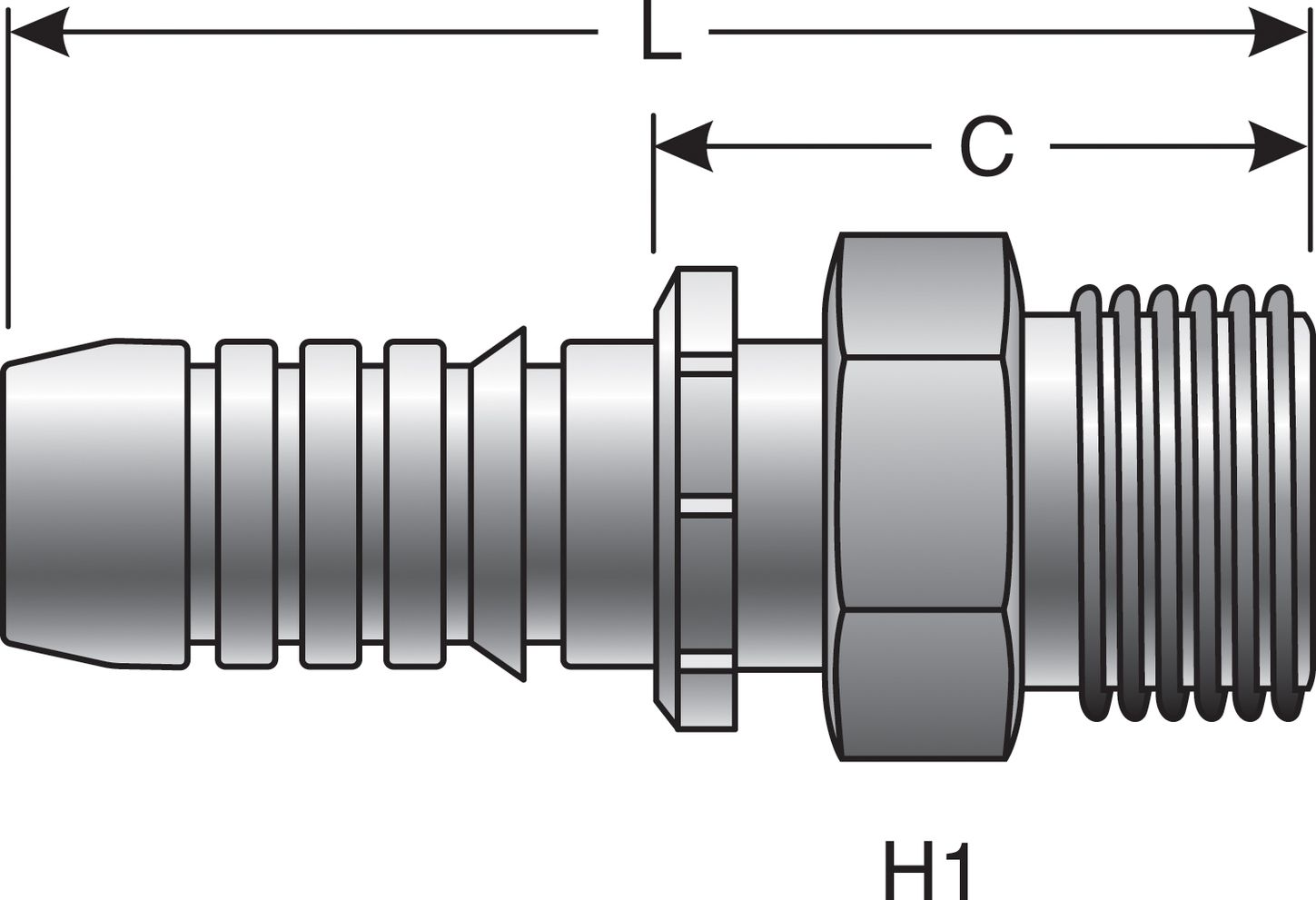

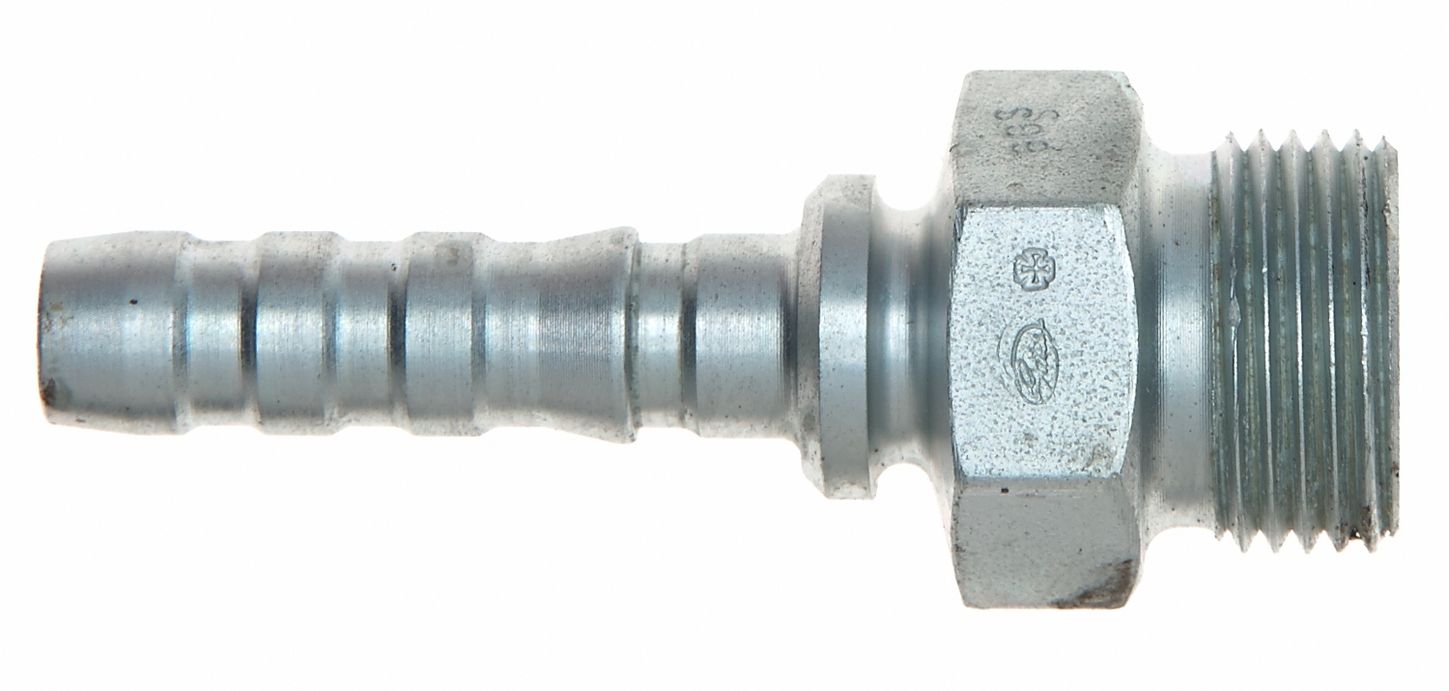

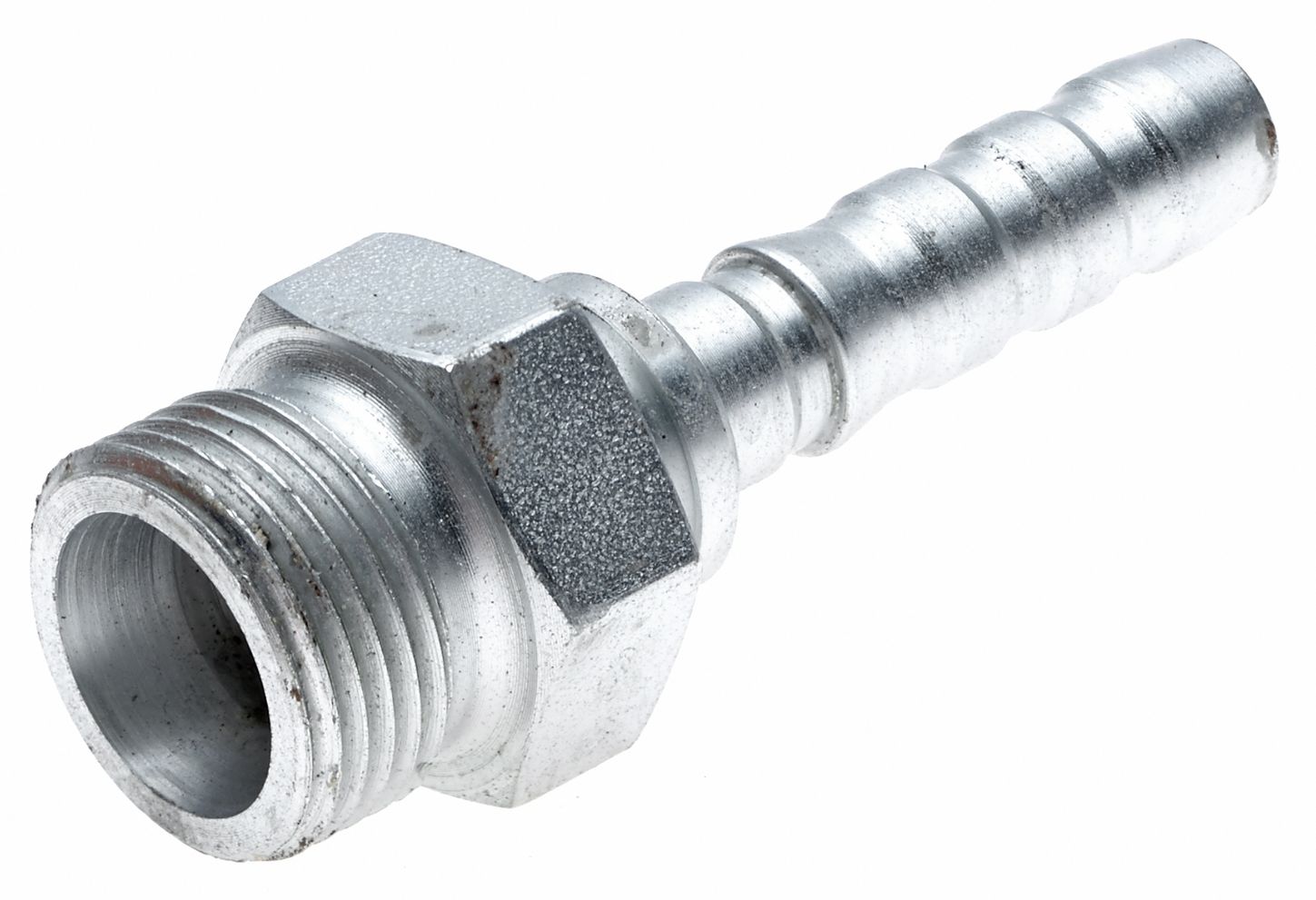

Gates G20715-1630 (16GS-30MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)

Male DIN 24 Cone - Heavy Series (GlobalSpiral)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.

• “Bite-the-wire” crimp for improved coupling retention
