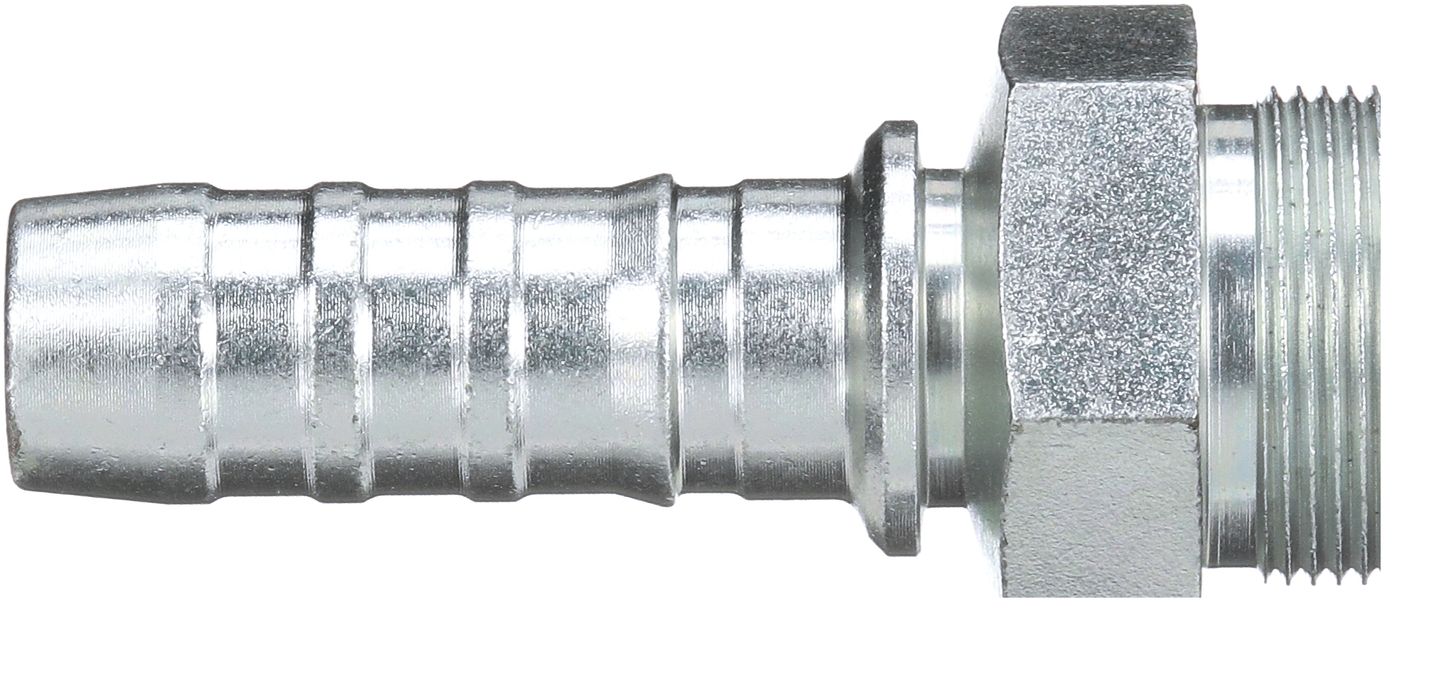

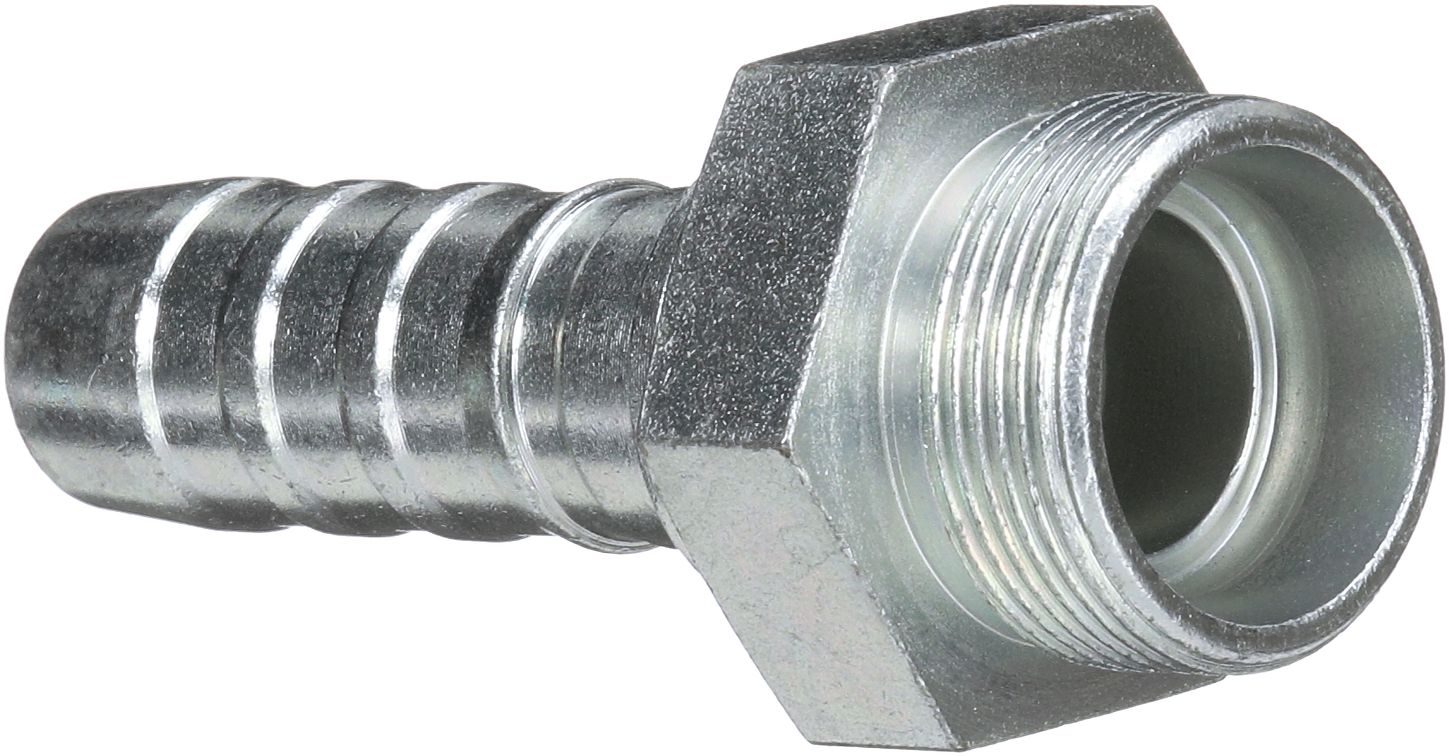

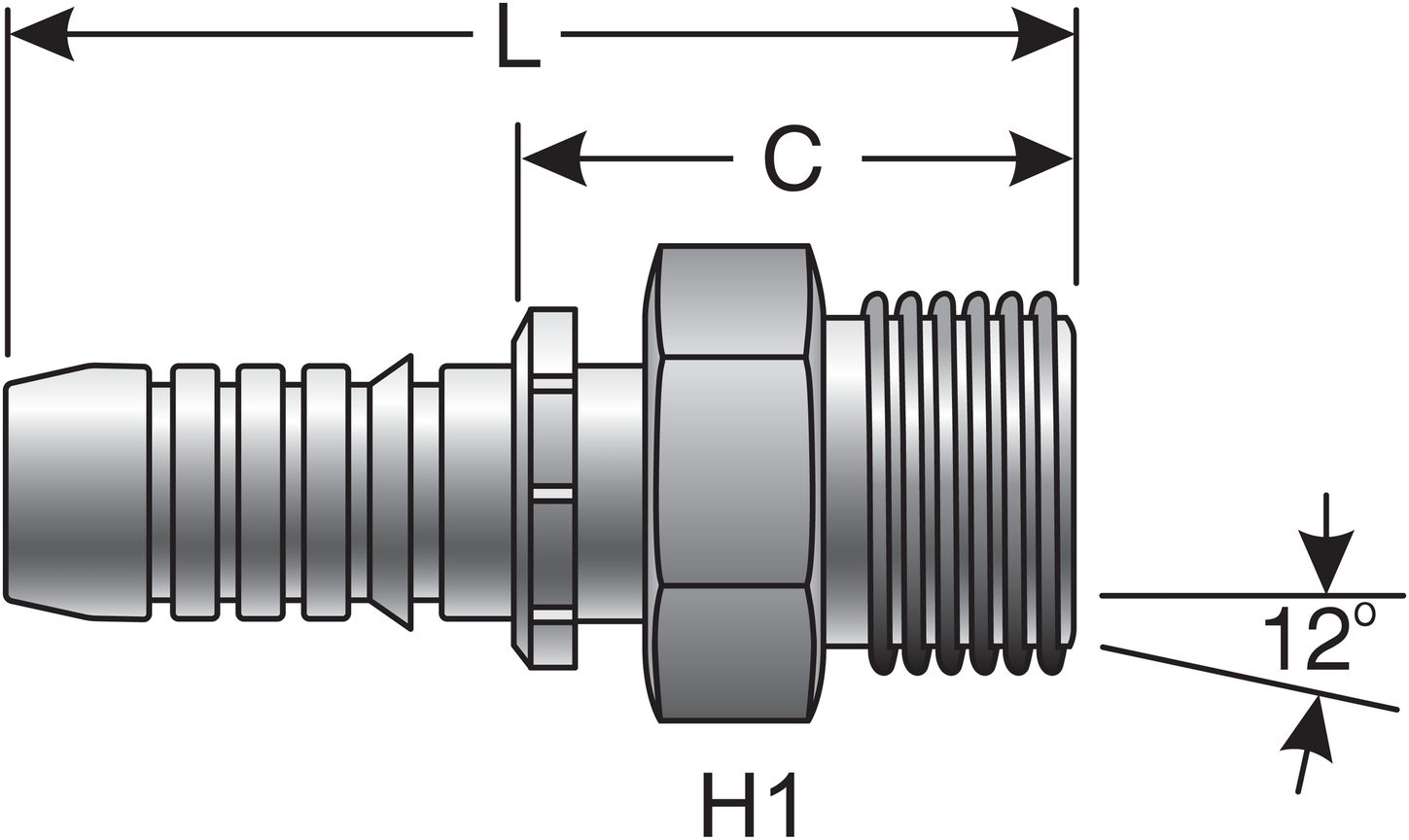

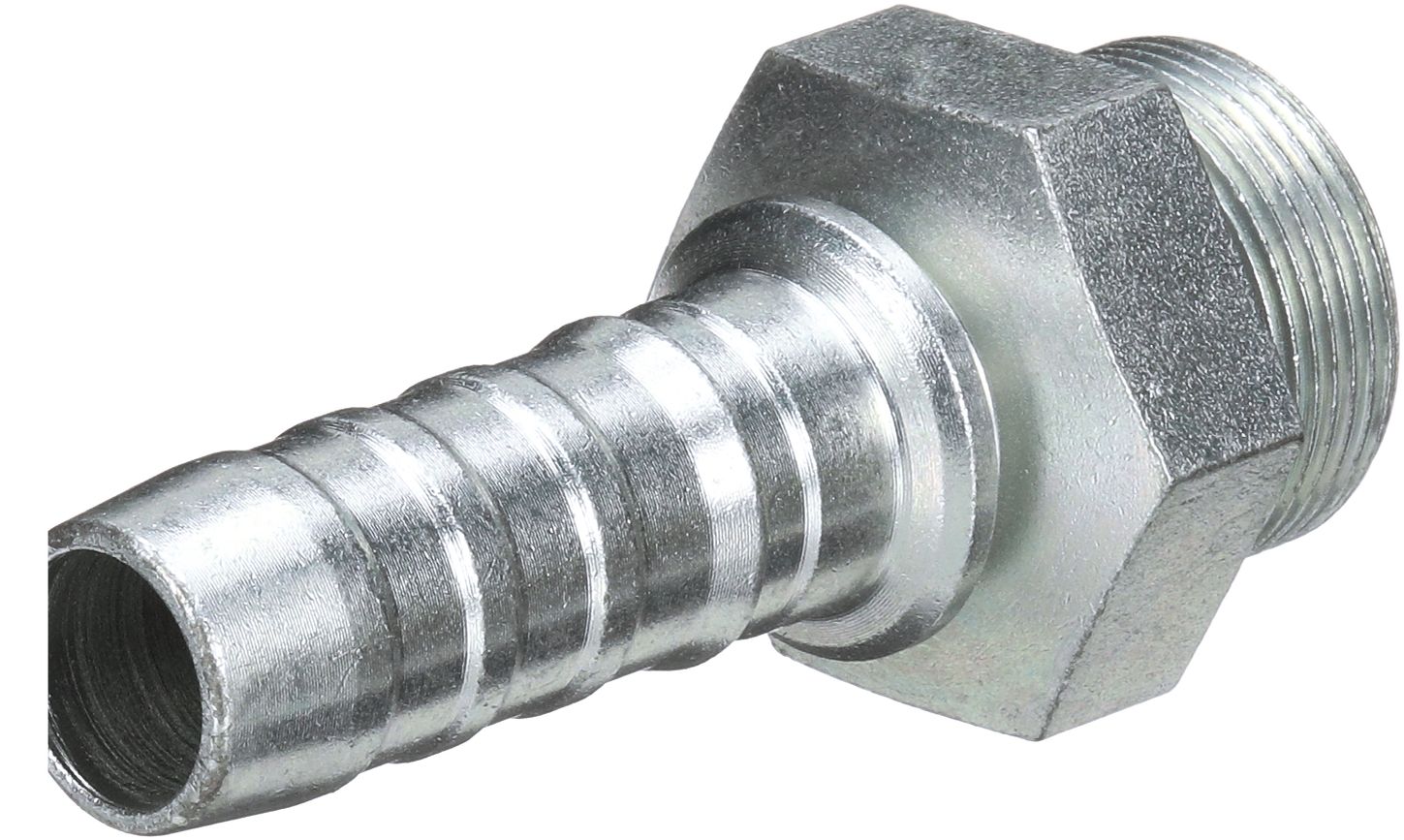

Gates G20735-1222 (12GS-22MKB) Male Kobelco GAZ - Male French GAZ (GlobalSpiral)
SKU: G20735-1222Cross reference: G207351222TEXF4-1230-KBMUPC/EAN: 072053408409
Male Kobelco GAZ - Male French GAZ (GlobalSpiral)
$56.90
EachIn stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20735-1222 |
|---|---|
| Cross reference | G207351222, TEXF4-1230-KBM |
| UPC/EAN | 072053408409 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Male Kobelco (MKB) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Thread Size | 1 3/16" (19) |
| Gates Code | G20 |
