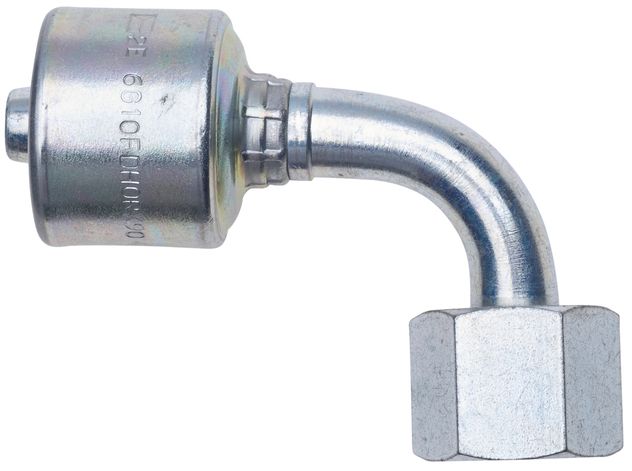

Gates G25655-1222 (12G-22FDLORX90) Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
SKU: G25655-1222Cross reference: G256551222TEXF2-1230-DLFS90UPC/EAN: 072053449976
Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
$104.79
EachLow stock
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25655-1222 |
|---|---|
| Cross reference | G256551222, TEXF2-1230-DLFS90 |
| UPC/EAN | 072053449976 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 90° |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 1 3/16" (19) |
| Gates Code | G25 |
