Gates 70086 (20EFG4KL) EFG4KL Low Temp Spiral Wire Hose
SKU: 70086UPC/EAN: 072053289428

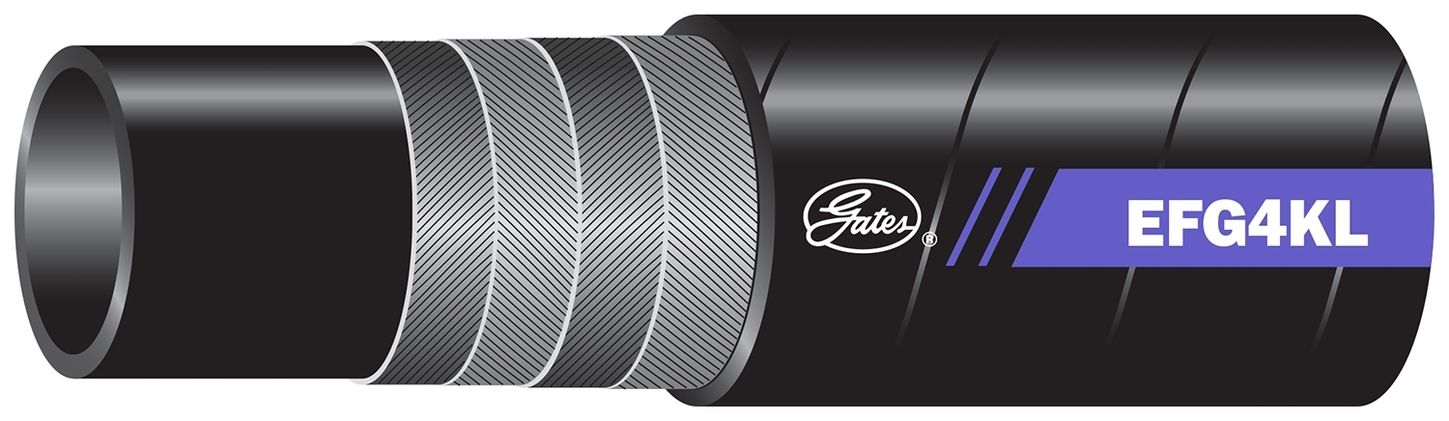

EFG4KL Low Temp Spiral Wire Hose
$2,246.36
Roll 50Usually ships within 4-10 days
Product Details
EFG4KL Low-Temp hose is recommended for very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluid.
- For use with GlobalSpiral Couplings [G20 Series] and GlobalSpiral One-Piece Couplings [G21 Series, -20 Only]
Specifications
| SKU | 70086 |
|---|---|
| UPC/EAN | 072053289428 |
| Inside Diameter | 1 1/4" (20) |
| Hose Layer Count | 4 |
| Hose Reinforcement | Alternating Spiral Wire |
| Hose Reinforcement Material | Wire |
| Industry Specification | SAE 100R12 |
| Hose Series | EFG4KL |
| Working Pressure Rating (PSI) | 4000 |
