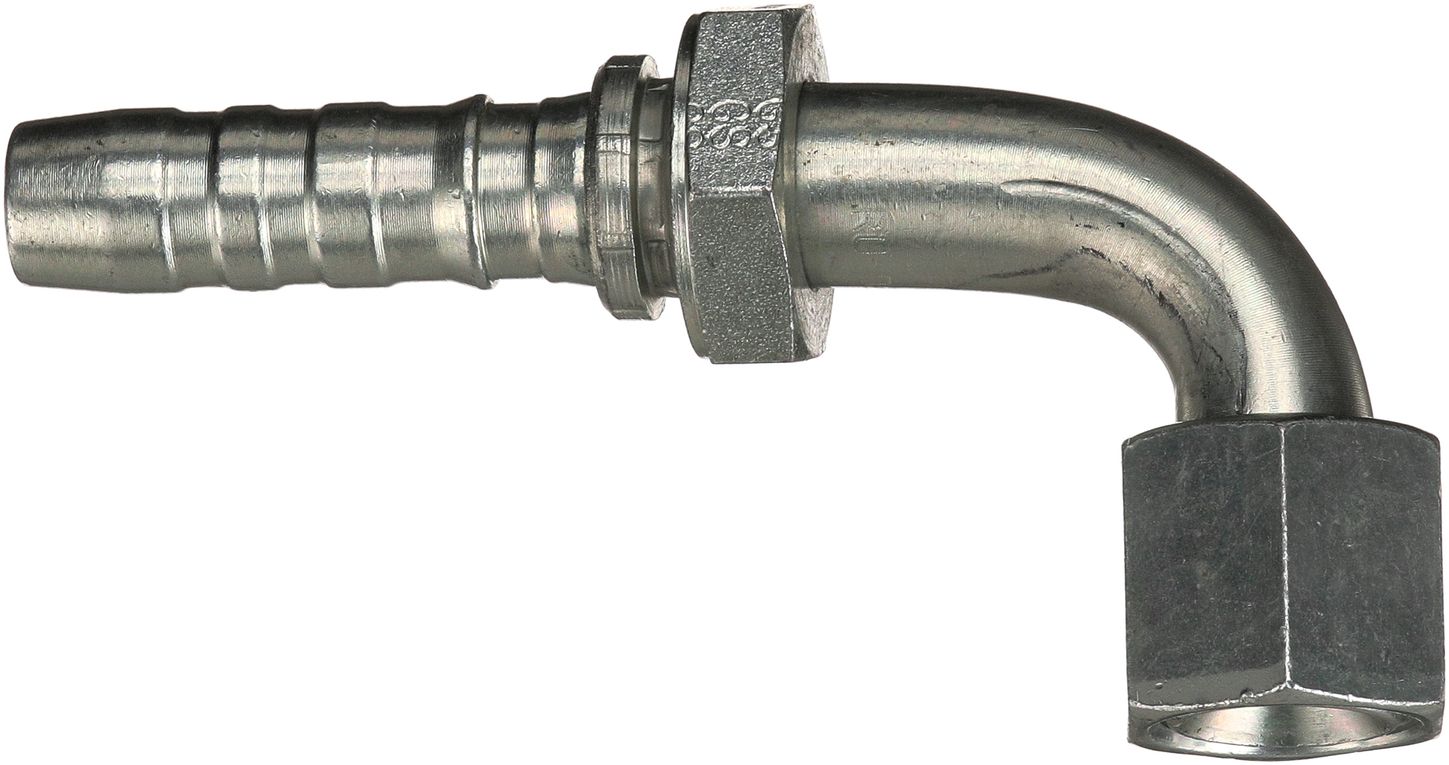

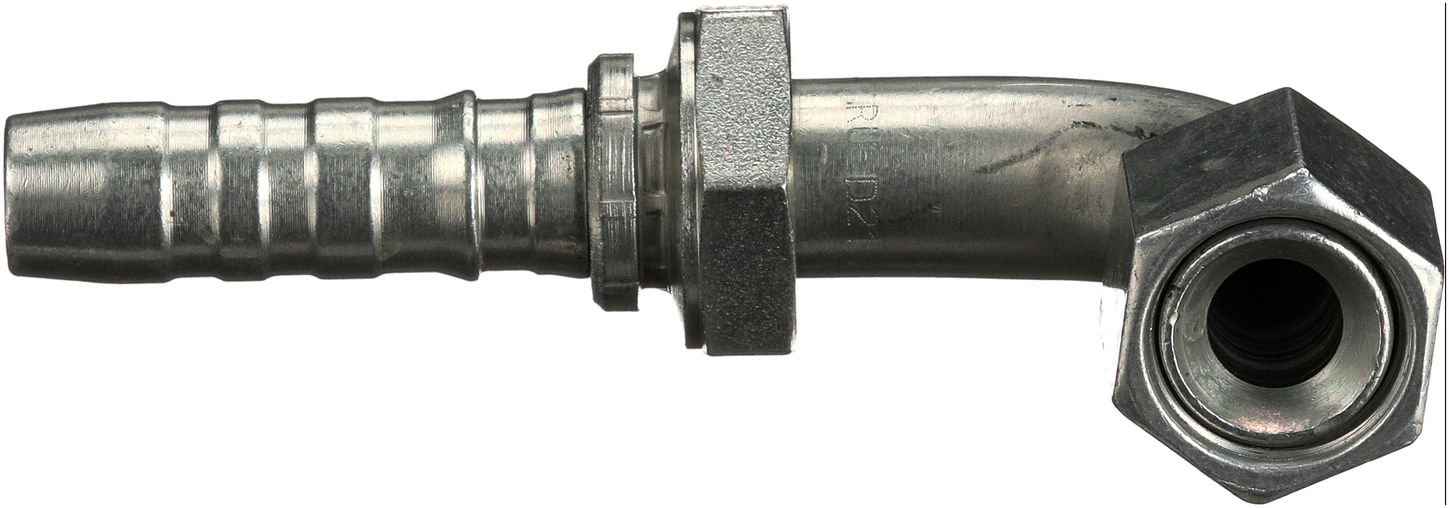

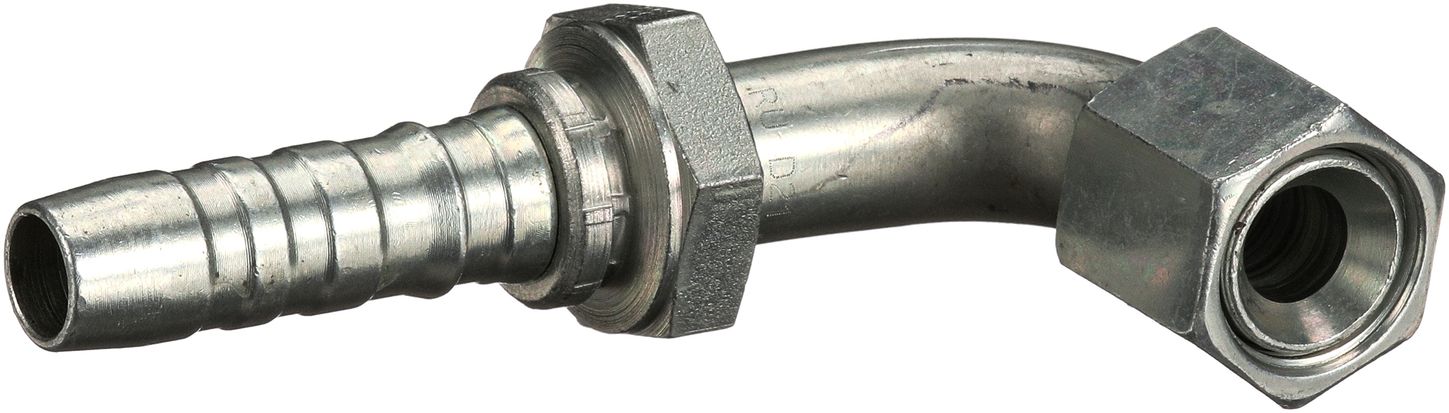

Gates G20180-0606 (6GS-6FJXMM90M) Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
SKU: G20180-0606Cross reference: G201800606UPC/EAN: 770075356387
Female JIC 37 Flare Swivel - 90 Bent Tube (GlobalSpiral)
$19.50
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20180-0606 |
|---|---|
| Cross reference | G201800606 |
| UPC/EAN | 770075356387 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC Metric (FJM) |
| Inside Diameter | 3/8" (06) |
| Bend Angle | 90° |
| Seal Type | Mated Angle |
| Thread Size | 9/16" (09) |
| Gates Code | G20 |
