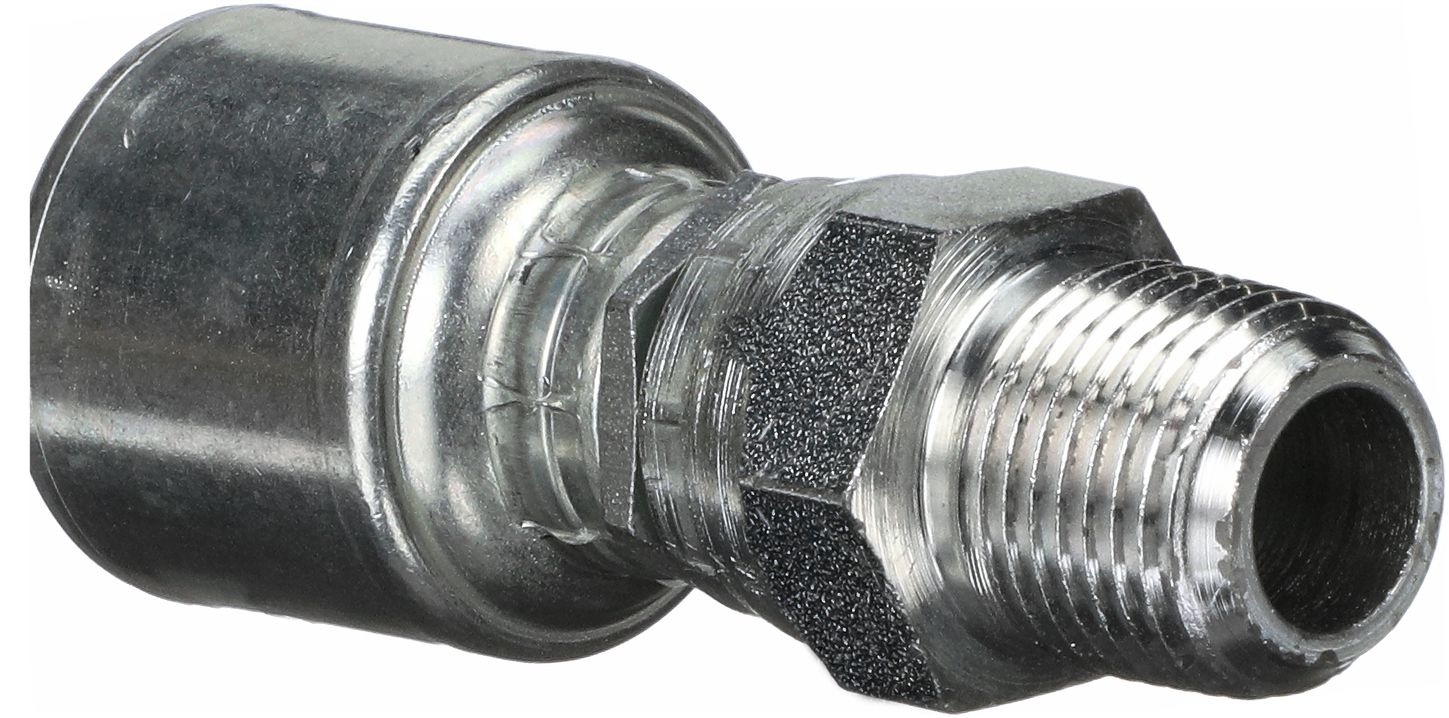

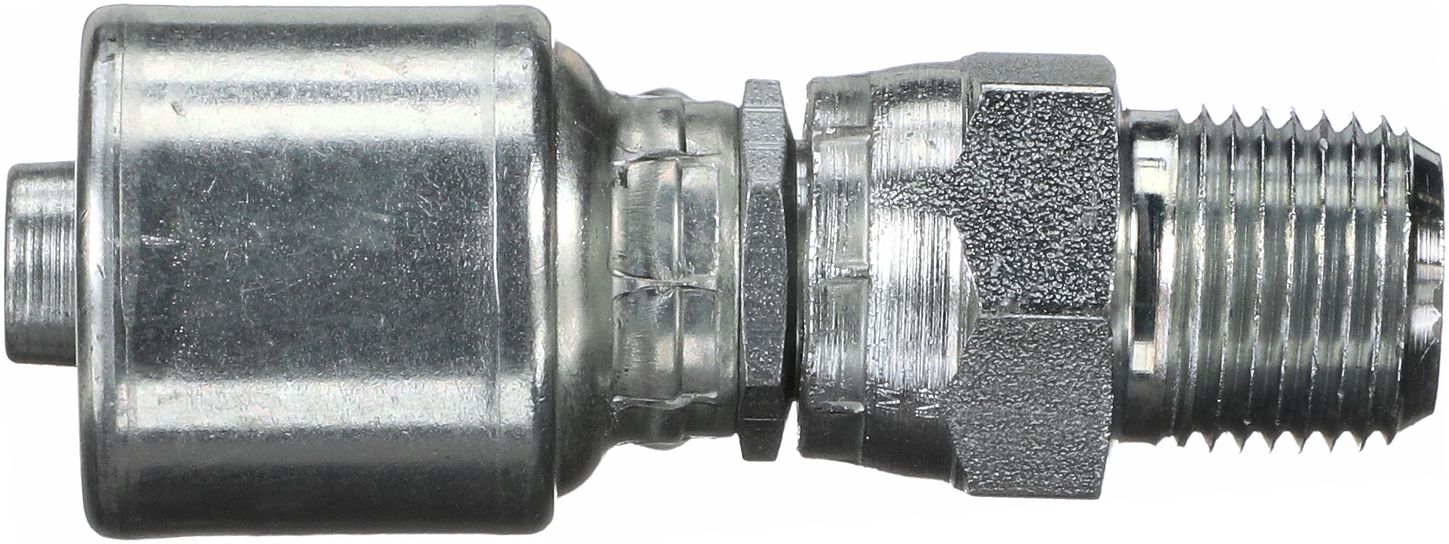

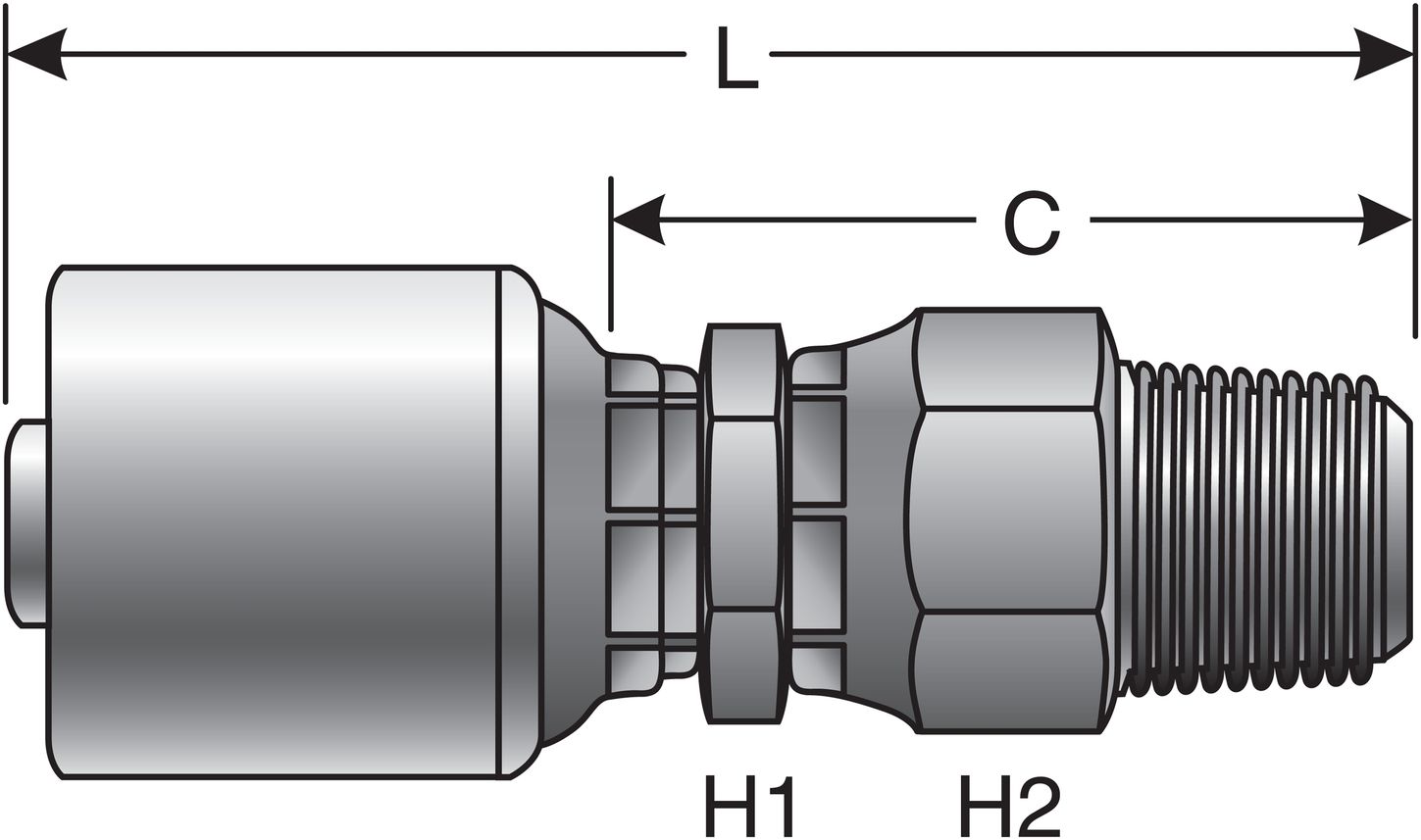

Gates G25105-0408 (4G-8MPX) Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
SKU: G25105-0408Cross reference: G251050408TEXF2-0408-PMSUPC/EAN: 072053407945
Male Pipe Swivel (NPTF - Without 30 Cone Seat) (MegaCrimp)
$16.59
EachLow stock
Product Details
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel.
- Robust “bite-the-wire” crimp
Specifications
| SKU | G25105-0408 |
|---|---|
| Cross reference | G251050408, TEXF2-0408-PMS |
| UPC/EAN | 072053407945 |
| Coupling Style | MegaCrimp Couplings |
| Swivel | Yes |
| Thread Configuration | Male Pipe (MP) |
| Inside Diameter | 1/4" (04) |
| Bend Angle | Straight |
| Seal Type | Thread Interference |
| Thread Size | 1/2" (08) |
| Gates Code | G25 |
