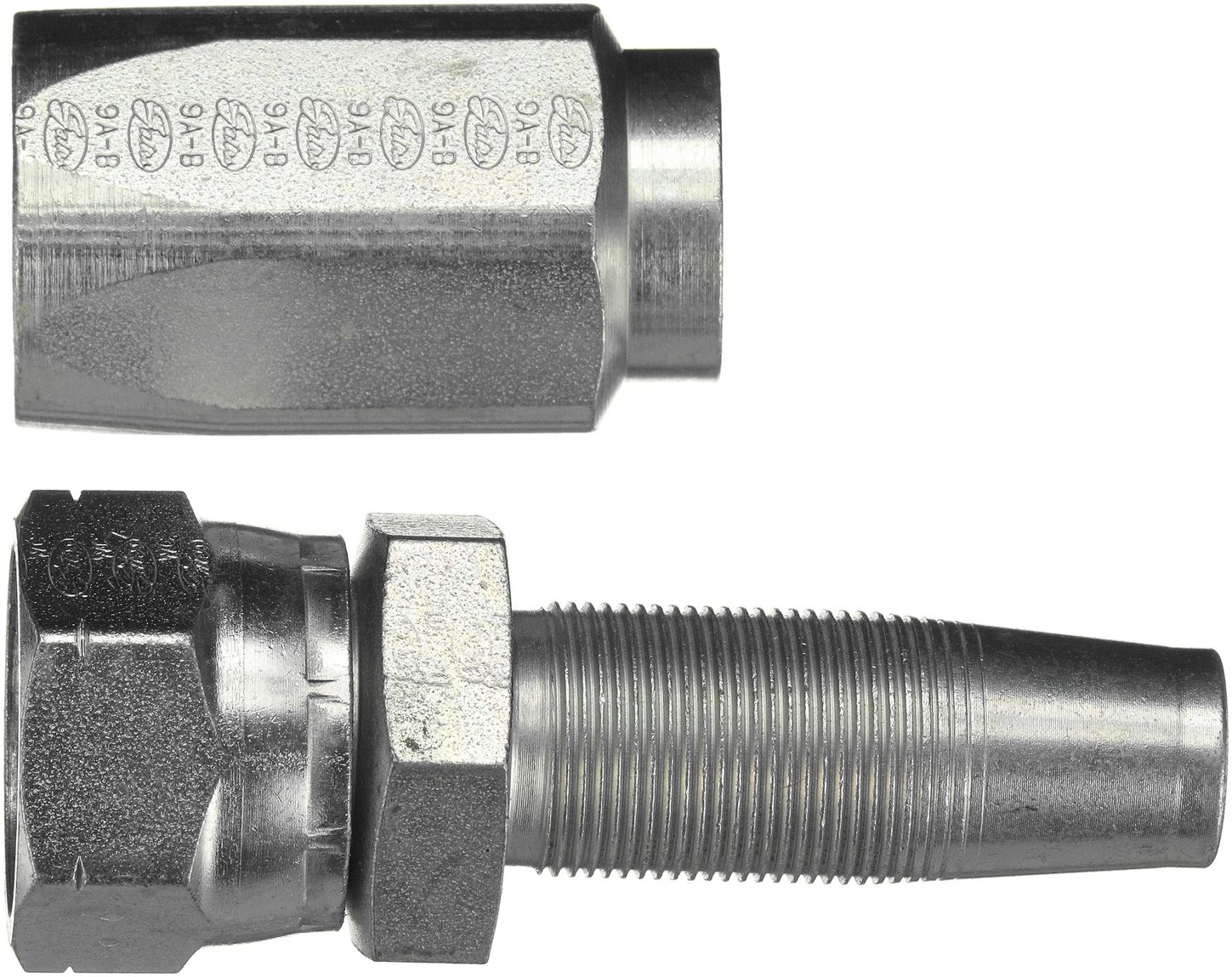

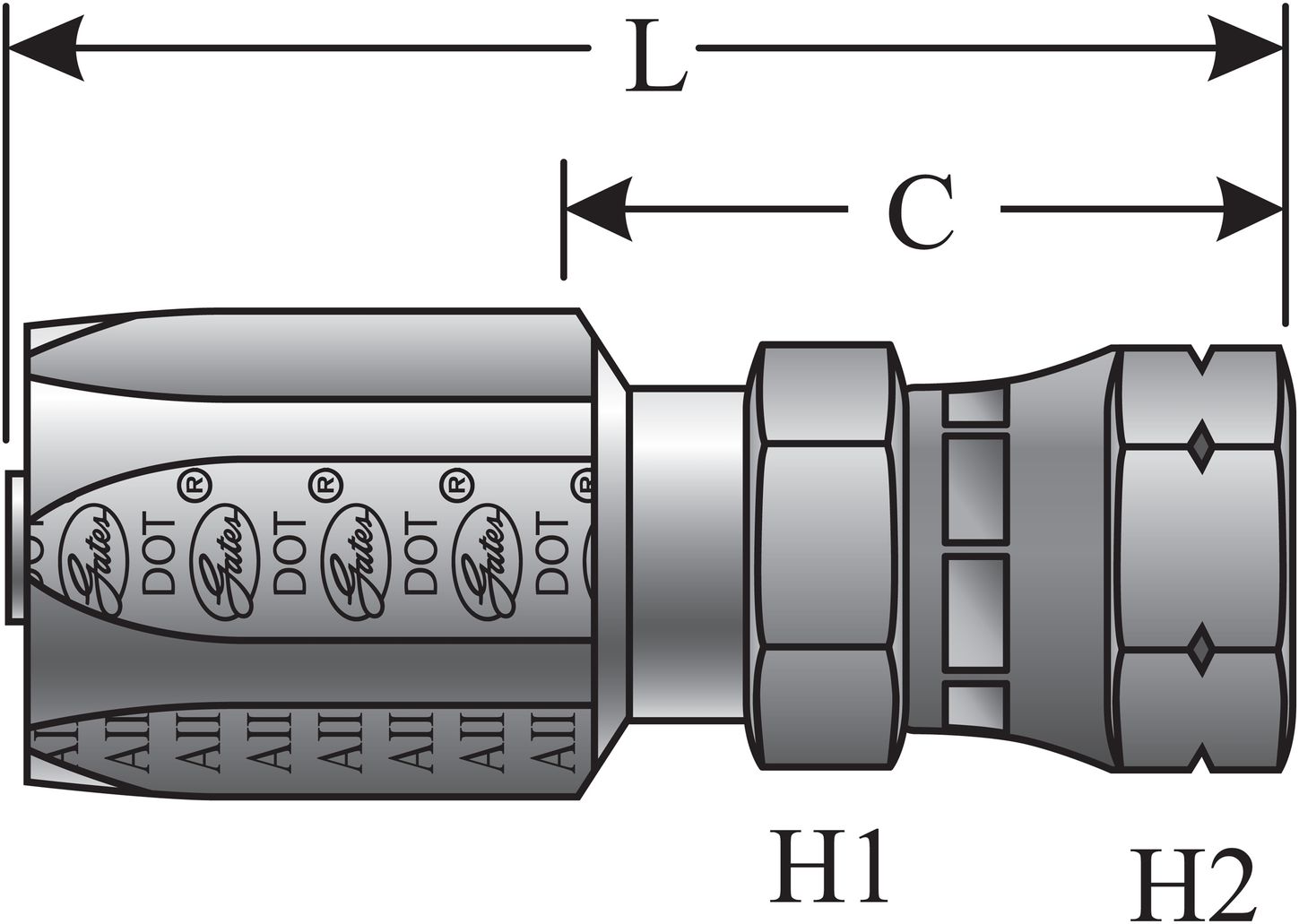

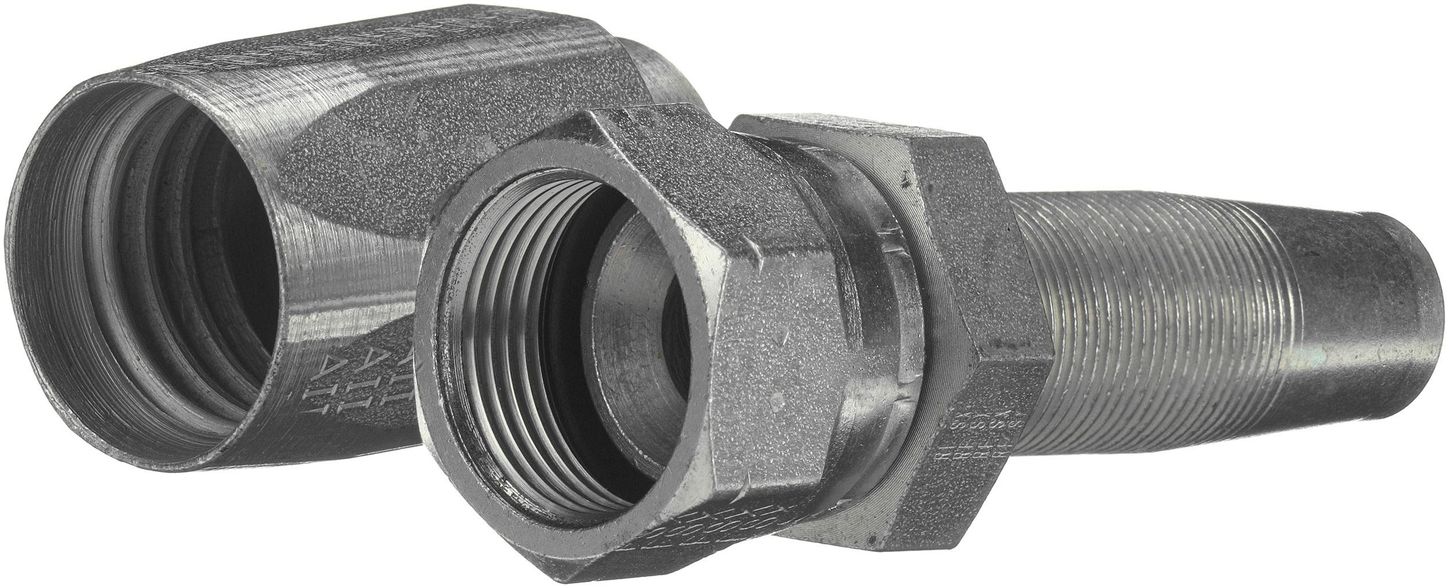

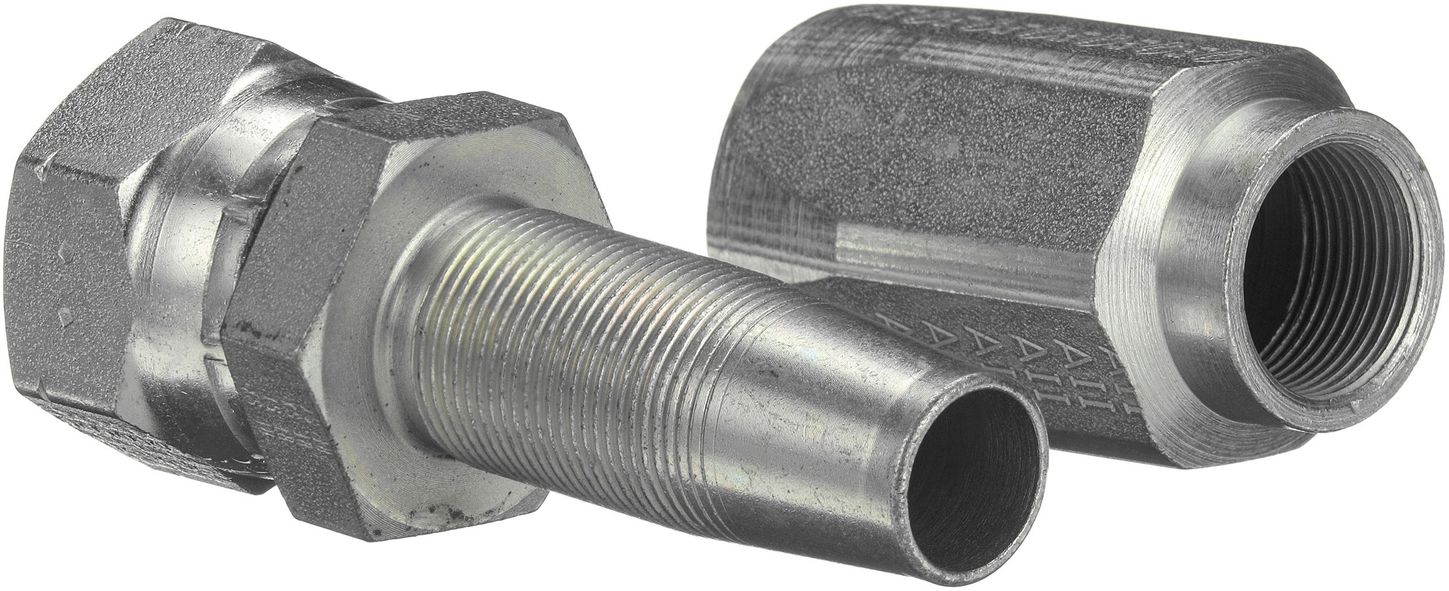

Gates G34200-1212 (12C5X-12RFSX) Female SAE 45 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
SKU: G34200-1212Cross reference: G342001212TEXFA5-1212-SFSUPC/EAN: 072053169515
Female SAE 45 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
$39.75
EachIn stock
Product Details
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5 hose
Specifications
| SKU | G34200-1212 |
|---|---|
| Cross reference | G342001212, TEXFA5-1212-SFS |
| UPC/EAN | 072053169515 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female SAE Flare (FS) |
| Inside Diameter | 5/8" (10) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 1/16" (17) |
| Gates Code | G34 |
