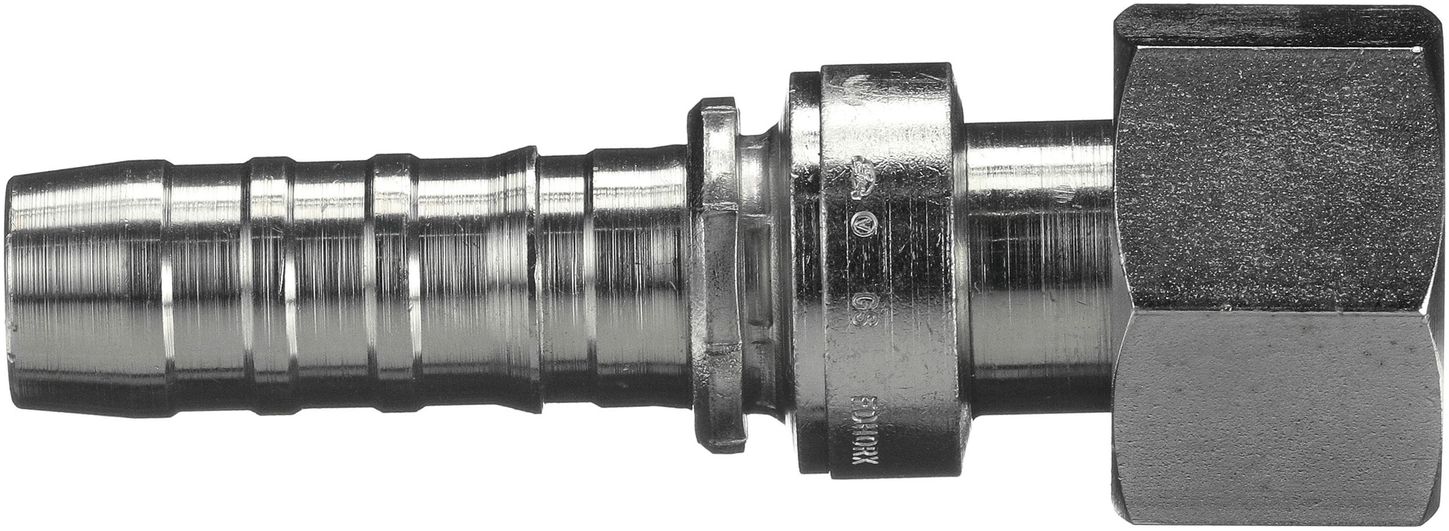

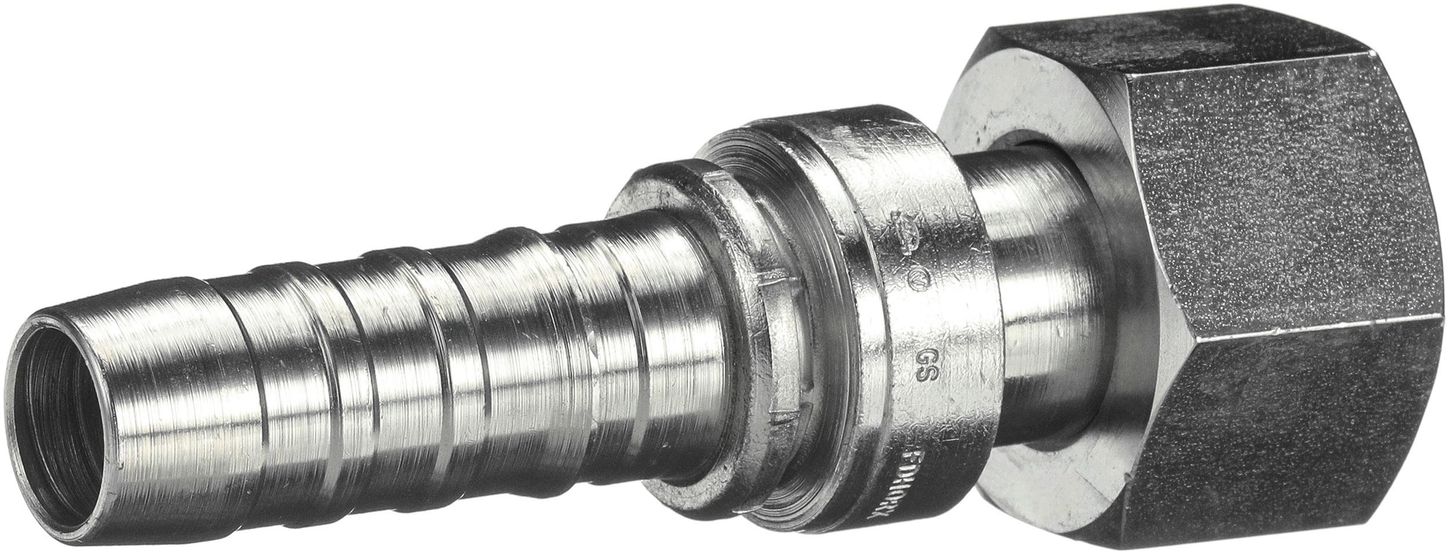

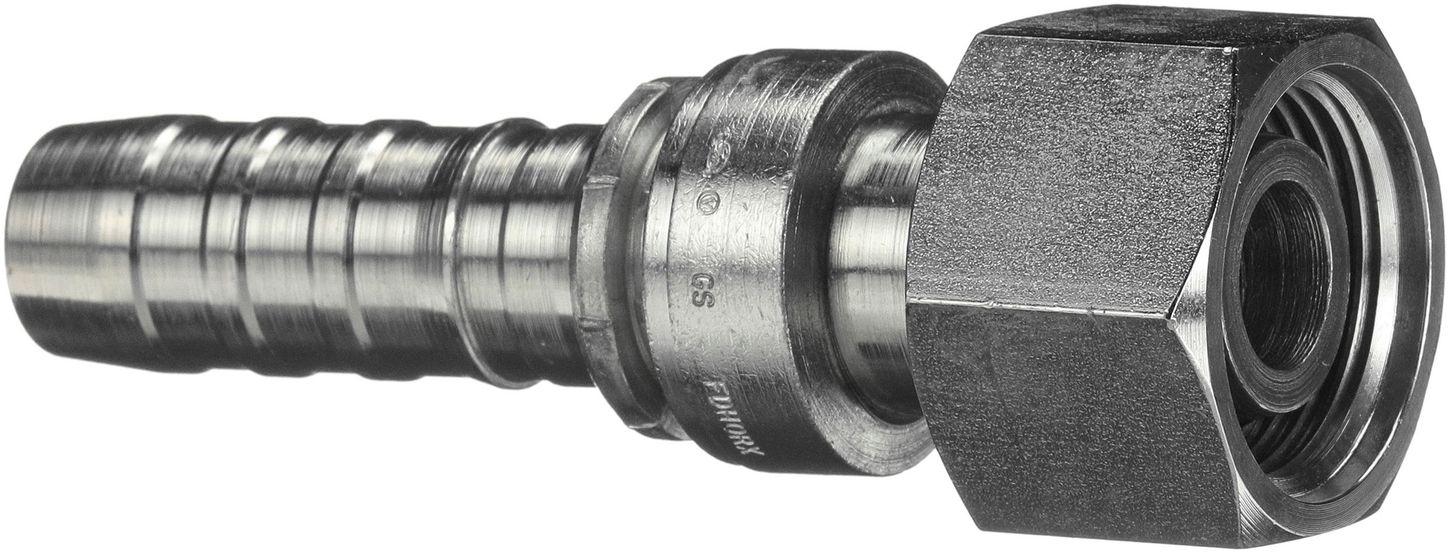

Gates G20720-2038 (20GS-38FDHORX) Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral)
SKU: G20720-2038Cross reference: TEXF4-2052-DHFSTEXF6-2052-DHFSUPC/EAN: 072053474770
Female DIN 24 Cone Swivel - Heavy Series with O-Ring (GlobalSpiral)
$129.77
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20720-2038 |
|---|---|
| Cross reference | TEXF4-2052-DHFS, TEXF6-2052-DHFS |
| UPC/EAN | 072053474770 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 1 1/4" (20) |
| Bend Angle | Straight |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 2 1/16" (33) |
| Gates Code | G20 |
