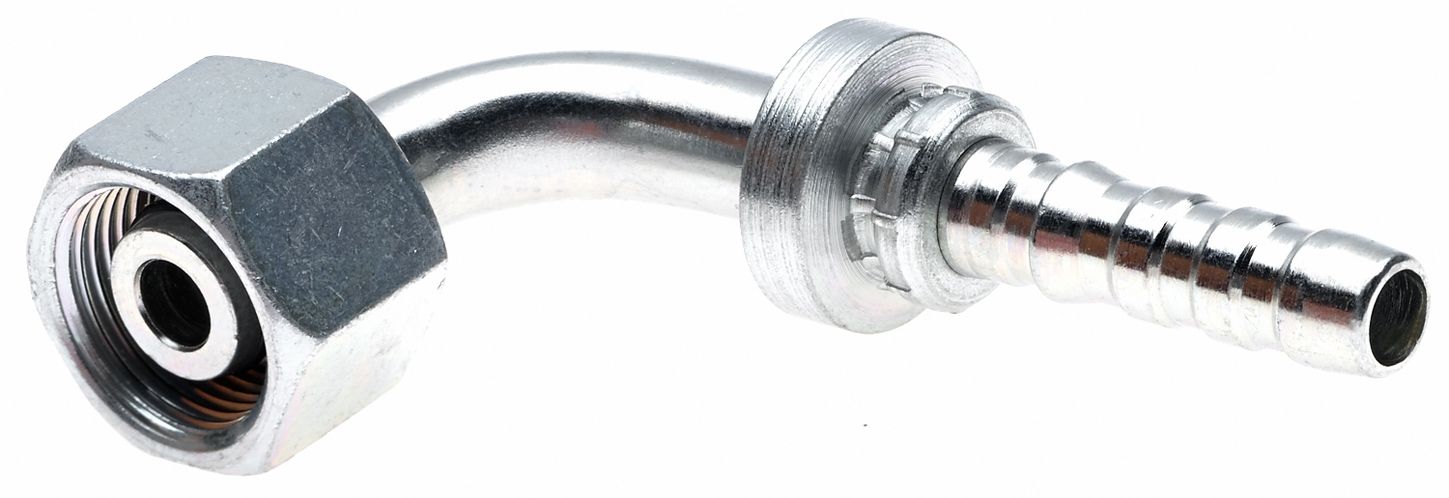

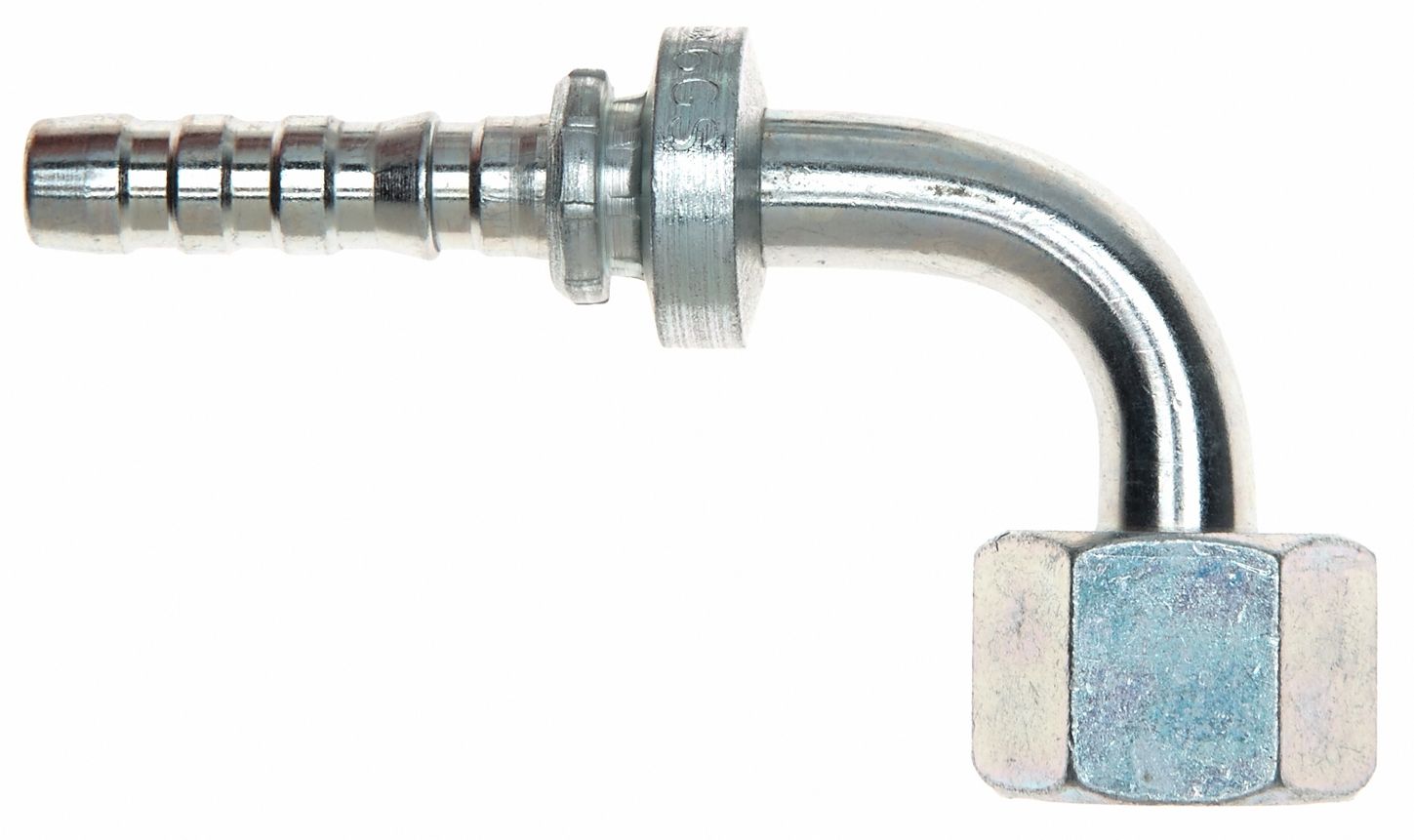

Gates G20730-1625 (16GS-25FDHORX90) Female DIN 24 Cone Swivel-Hvy Series with O-Ring-90 Bent Tube (GlobalSpiral)
SKU: G20730-1625Cross reference: G207301625UPC/EAN: 072053674460
Female DIN 24 Cone Swivel-Hvy Series with O-Ring-90 Bent Tube (GlobalSpiral)
$123.66
EachLow stock
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention

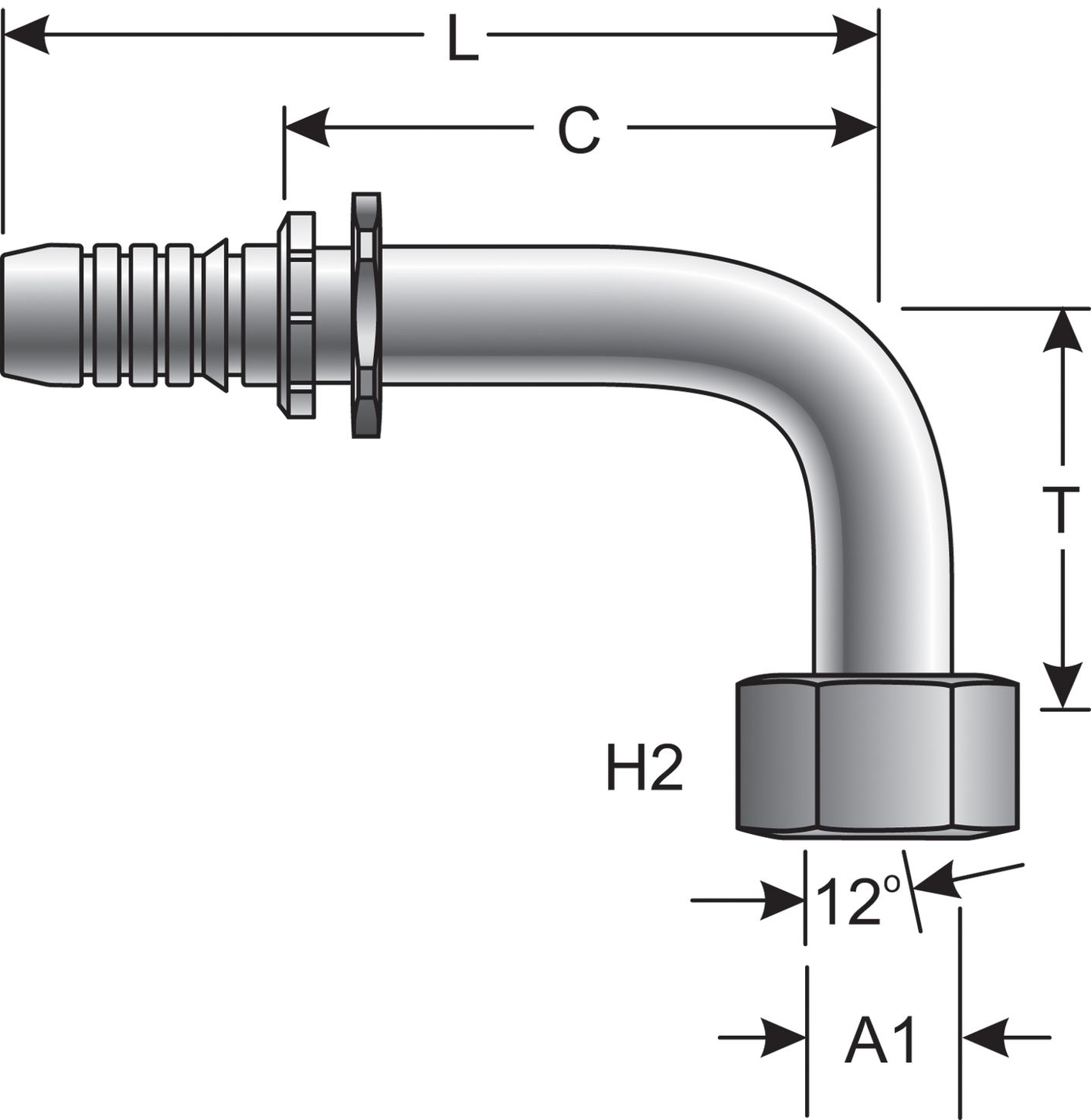

Specifications
| SKU | G20730-1625 |
|---|---|
| Cross reference | G207301625 |
| UPC/EAN | 072053674460 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 1" (16) |
| Bend Angle | 90° |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 1 7/16" (23) |
| Gates Code | G20 |
