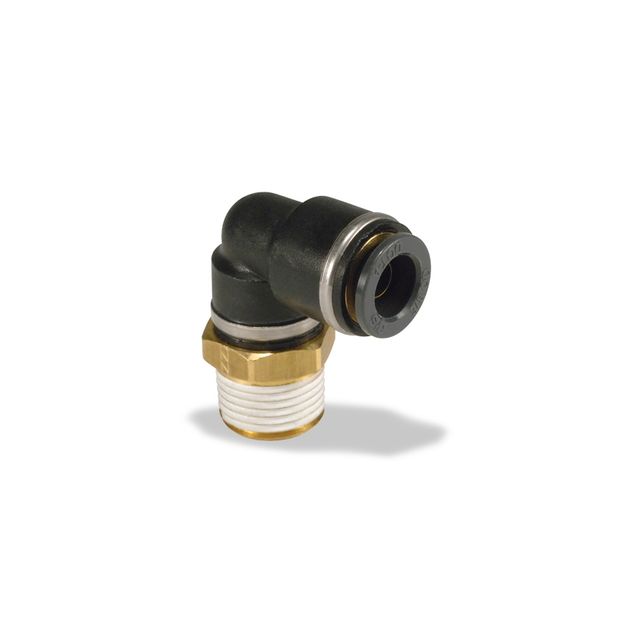

Velvac 016214 90 DEG. MALE SWIVEL ELBOW 1/8 X 1/4

The Velvac Push-Lock Air Brake Fitting, 90° Male Swivel Elbow, is designed for SAE J844 nylon tubing, ensuring optimal performance in air brake and pneumatic systems. With a maximum operating pressure of 145 psi and a temperature range of -45°F to +140°F, this fitting provides secure and leak-free connections. A built-in swivel feature allows easy positioning, while the pre-applied thread sealant minimizes installation time.

Velvac Push-Lock Air Brake Fitting, 90° Male Swivel Elbow ⅛” x ¼” (016214)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting is designed for use with SAE J844 nylon tubing, ensuring reliable performance in pneumatic applications. The built-in swivel feature on elbows and male branch fittings allows for easy positioning during installation. Engineered for durability, this fitting features a composite body with a brass pipe fitting end, providing superior strength and longevity. The advanced tube retention system ensures a secure hold, while the pre-applied thread sealant reduces installation time and prevents leaks.

SPECIFICATIONS:

• Type: 90° Male Swivel Elbows
• Material: Composite
• Pipe Size: ¼”
• Tube Size: ⅛”
• Note: Does not meet DOT or SAE specifications for air brake applications.

KEY FEATURES:

• Designed for SAE J844 nylon tubing
• Operating temperature range: -45°F to +140°F
• Maximum operating pressure: 145 psi
• Built-in swivel feature for easy positioning
• Advanced tube retention system for superior hold
• Positive release bushing for quick tube insertion and removal
• Pre-applied thread sealant minimizes installation time and prevents leaks
• Composite body with a durable brass pipe fitting end
