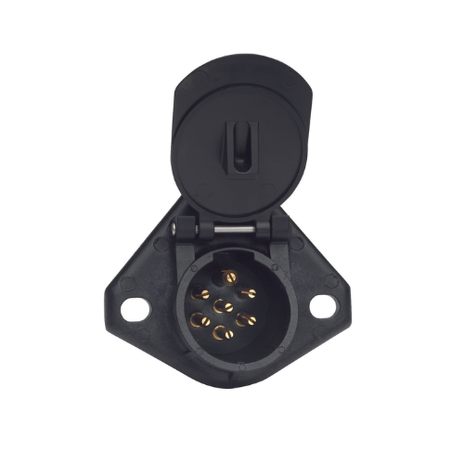

Phillips 16-725 Socket

Engineered for demanding environments, these termination sockets feature a sealed inner cavity and non-corrosive housing that resists magnesium chloride, salt, oils, grease, and fuels. With an extended front barrel slanted at 5° for effective moisture drainage and split brass pins for superior conductivity, they meet SAE J560 specifications for robust performance.

STA-DRY® Ring & Bullet Termination Sockets

INCLUDES: (1) STA-DRY® Ring & Bullet Termination Sockets (16-725)

PRODUCT OVERVIEW

Designed for heavy-duty electrical systems, the STA-DRY® Ring & Bullet Termination Sockets provide advanced protection against corrosion and contaminants. The inner cavity is sealed to prevent debris from reaching the wire harness, while the non-corrosive housing withstands harsh chemicals and fuels. An extended front barrel, slanted at 5°, offers additional cable support and promotes efficient moisture drainage, ensuring long-term reliability. Built with an unbreakable housing and lid, featuring a stainless steel hinge pin and spring, these sockets are crafted to excel in the toughest conditions. The split brass pins deliver superior conductivity and consistent performance, meeting SAE J560 standards.

KEY FEATURES:

• Sealed inner cavity prevents contaminants from reaching the wiring harness
• Non-corrosive housing resists magnesium chloride, salt, oils, grease, and fuels
• Extended front barrel with 5° slant provides enhanced cable support and moisture drainage
• Unbreakable housing and lid with stainless steel hinge pin and spring for long-lasting durability
• Split brass pins offer superior electrical conductivity
• Meets SAE J560 specifications for robust performance
• Optional socket boot (P/N 15-740) available for extra moisture protection
• Solid pin socket options available via customer service
