Velvac 016343 COMP FIT-M.BRNCH TEE 1/4X1/4X3/8PPRE

The Velvac Push-Lock Air Brake Fitting, Male Branch Swivel Tee is designed for connecting ¼” x ¼” x ⅜” SAE J844 nylon tubing. With a high-strength composite body and brass pipe fitting end, it offers weight savings without compromising durability. The built-in swivel feature allows for flexible positioning, and the engineered tube retention system ensures secure connections. Compliant with DOT 49 CFR 571.106 standards, this fitting supports a maximum operating pressure of 145 psi and a temperature range of -45°F to +140°F. Its positive release bushing and pre-applied thread sealant make installation quick and leak-free.

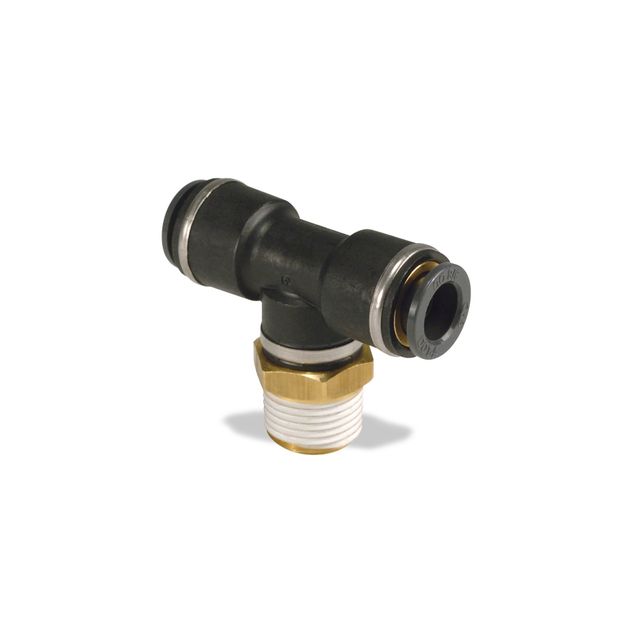

Velvac Push-Lock Air Brake Fitting, Male Branch Swivel Tee, ¼” x ¼” x ⅜” (016343)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting, Male Branch Swivel Tee provides a reliable and versatile solution for air brake connections in commercial vehicles. Designed for use with ¼” x ¼” x ⅜” SAE J844 nylon tubing, its lightweight composite construction offers significant weight savings compared to brass fittings, while the brass pipe fitting end enhances strength and corrosion resistance. This fitting is equipped with a built-in swivel feature, allowing for easy positioning in tight or confined spaces. The engineered tube retention system and advanced seal design ensure superior holding power and side load retention, preventing leaks and disconnections. The positive release bushing further simplifies the installation and removal of tubing. DOT 49 CFR 571.106 compliant and meeting SAE J1131 standards, the Velvac Male Branch Swivel Tee is built for reliable, long-term performance in demanding environments. With a maximum operating pressure of 145 psi and an operating temperature range from -45°F to +140°F, it offers exceptional durability and performance.

KEY FEATURES:

• Designed for use with SAE J844 nylon tubing
• Fits ¼” x ¼” x ⅜” tubing configurations
• Male Branch Swivel Tee design for flexible positioning
• High-strength composite body for weight savings
• Brass pipe fitting end for added durability and corrosion resistance
• Built-in swivel feature for easy adjustment and installation
• Compliant with DOT 49 CFR 571.106 and SAE J1131 standards
• Operating temperature range from -45°F to +140°F
• Maximum operating pressure of 145 psi
• Engineered tube retention system for superior holding and side load retention
• Positive release bushing for easy insertion and removal of tubing
• Pre-applied thread sealant on male pipe threads for leak-free installation
