Velvac 017980 45DEG.FXD ELB, PSH-LK, 1/4 X 1/8 NPTF

The Velvac Push-Lock Air Brake Fitting, 45° Male Fixed Elbow is designed for use with ¼” x ⅛” SAE J844 nylon tubing. Built from high-quality brass, it withstands temperatures from -40°F to +212°F and pressures up to 150 psi. This fitting meets DOT 49 CFR 571.106 standards and SAE J1131 “Hot Pull” requirements, ensuring safety and reliability. Featuring a collet with multiple teeth for a strong grip, a positive release bushing for easy installation, and pre-applied thread sealant for leak prevention, it’s ideal for commercial vehicle applications.

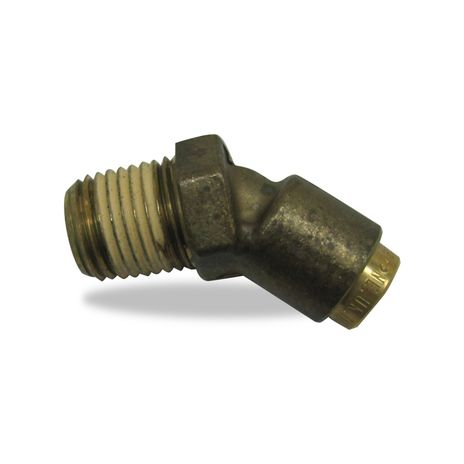

Velvac Push-Lock Air Brake Fitting, 45° Male Fixed Elbow, Brass, ¼” x ⅛” (017980)

PRODUCT OVERVIEW

The Velvac Push-Lock Air Brake Fitting, 45° Male Fixed Elbow offers a secure and durable connection for air brake systems in commercial vehicles. Made from corrosion-resistant brass, this fitting is designed for use with ¼” x ⅛” SAE J844 nylon tubing, providing long-term reliability in demanding environments. Compliant with DOT 49 CFR 571.106 and SAE J1131 standards, this fitting ensures safe performance. The 45° fixed elbow design allows for easy routing in tight spaces, while the collet with multiple teeth delivers a secure grip for side load retention. Its engineered positive release bushing simplifies tubing insertion and removal. Additionally, pre-applied thread sealant on male pipe threads prevents leaks, reducing installation time and ensuring a reliable seal.

Important Note: Velvac’s push-lock fittings are intended for use with air brake systems only, within specified pressure and temperature limits. Misuse may result in injury or property damage.

KEY FEATURES:

• Designed for use with SAE J844 nylon tubing
• Fits ¼” x ⅛” tubing configurations
• Durable brass construction for corrosion resistance and longevity
• Fixed 45° elbow design for tight-space installation
• Compliant with DOT 49 CFR 571.106 and SAE J1131 “Hot Pull” requirements
• Operating temperature range from -40°F to +212°F
• Maximum operating pressure of 150 psi
• Collet with multiple teeth for strong tube retention and side load support
• Positive release bushing for easy tube insertion and removal
• Pre-applied thread sealant for leak-free installation
