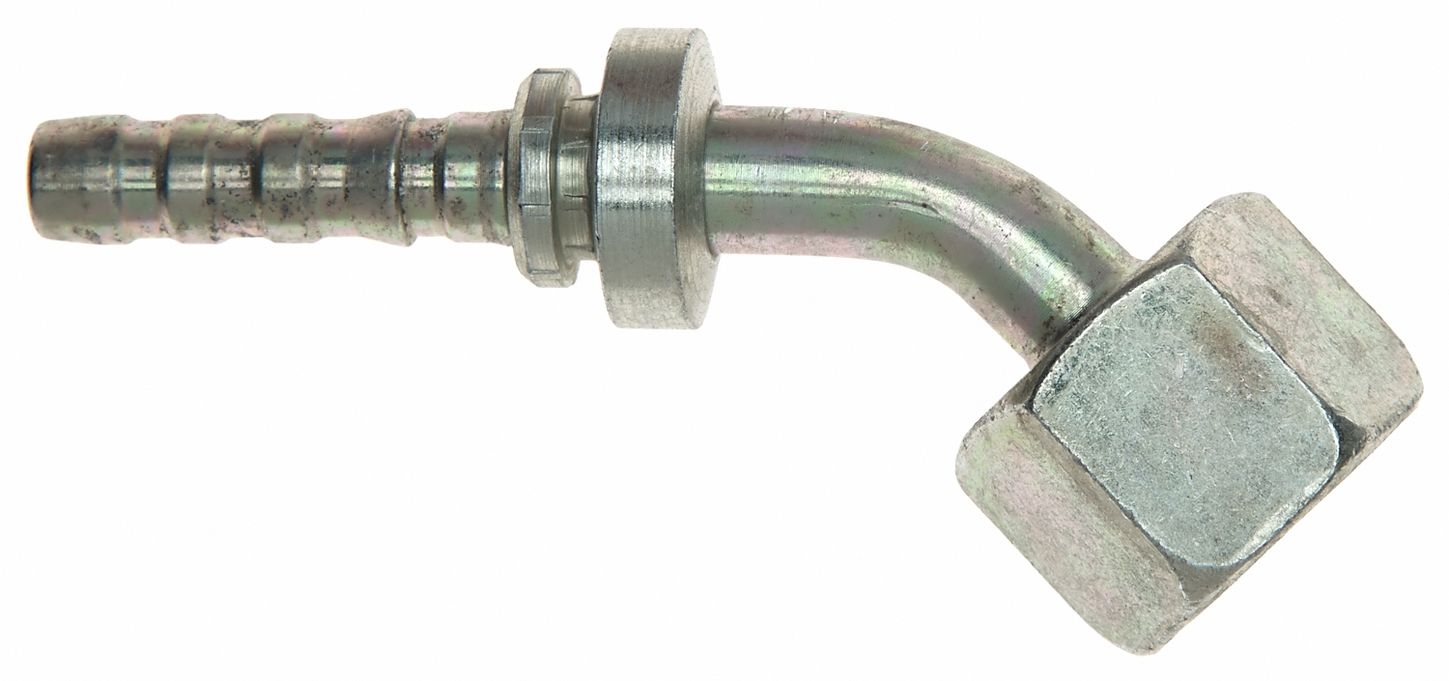

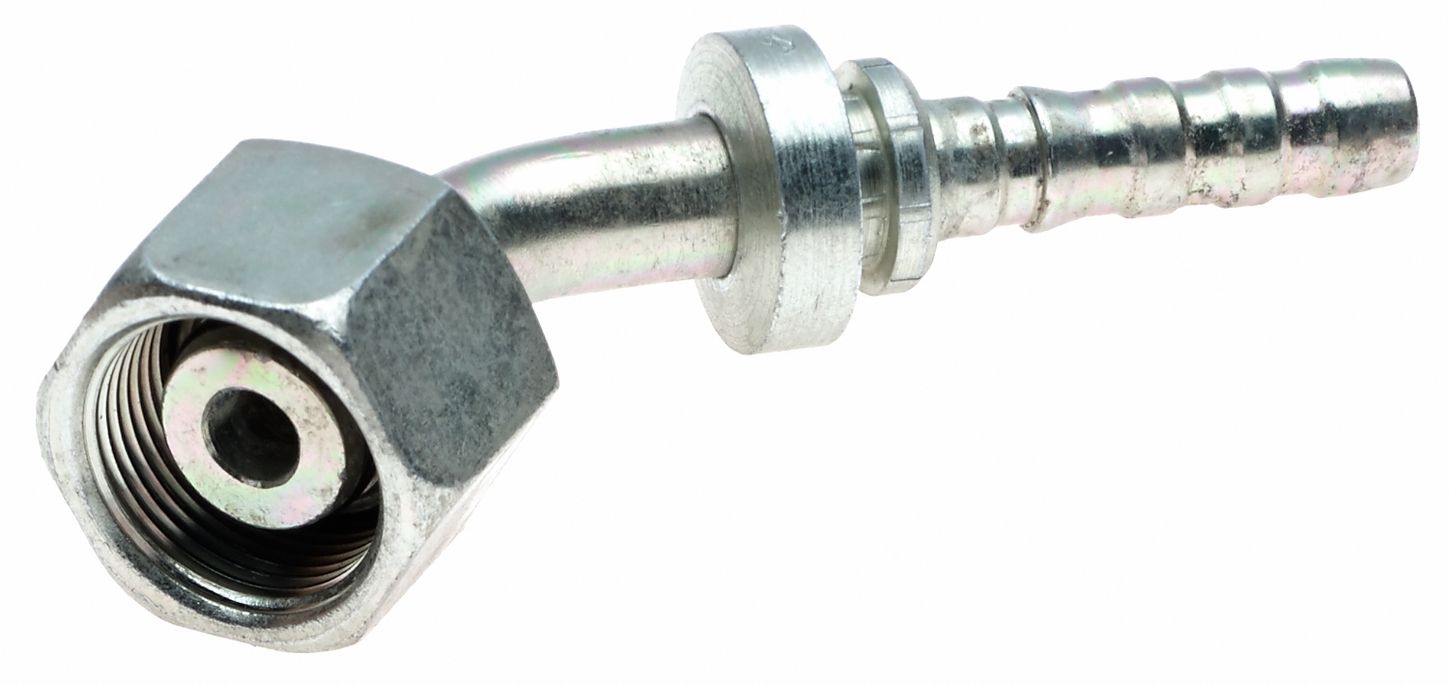

Gates G20725-1020 (10GS-20FDHORX45) Female DIN 24 Cone Swivel-Hvy Series with O-Ring-45 Bent Tube (GlobalSpiral)
SKU: G20725-1020UPC/EAN: 072053811681
Female DIN 24 Cone Swivel-Hvy Series with O-Ring-45 Bent Tube (GlobalSpiral)
$109.81
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20725-1020 |
|---|---|
| UPC/EAN | 072053811681 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | Yes |
| Thread Configuration | Female DIN Cone with O-Ring (FDOR) |
| Inside Diameter | 5/8" (10) |
| Bend Angle | 45° |
| Seal Type | Mated Angle with O-Ring |
| Thread Size | 1 3/16" (19) |
| Gates Code | G20 |
