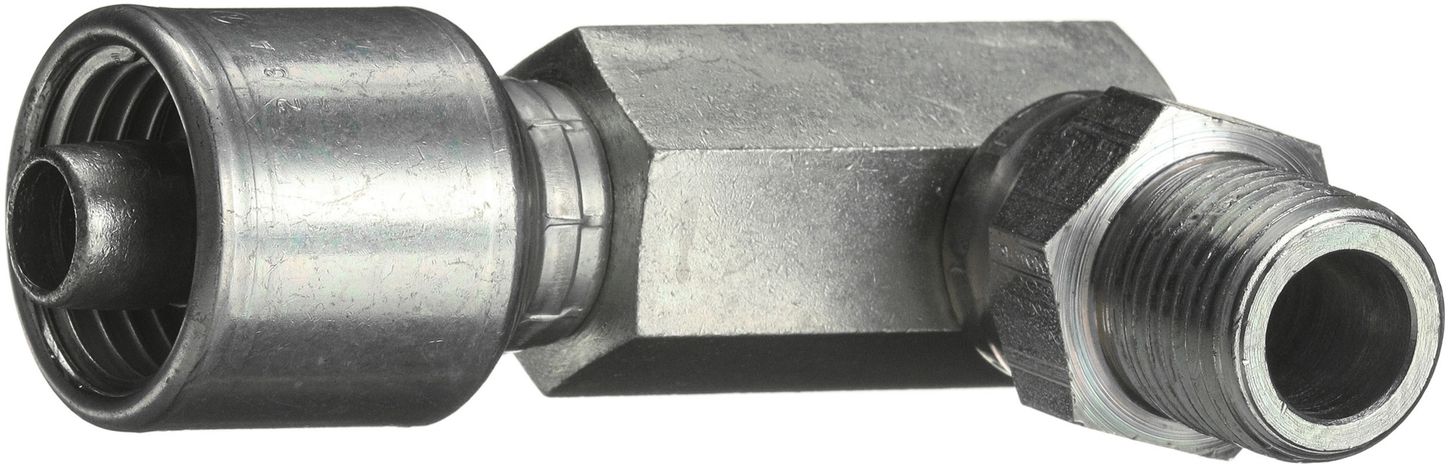

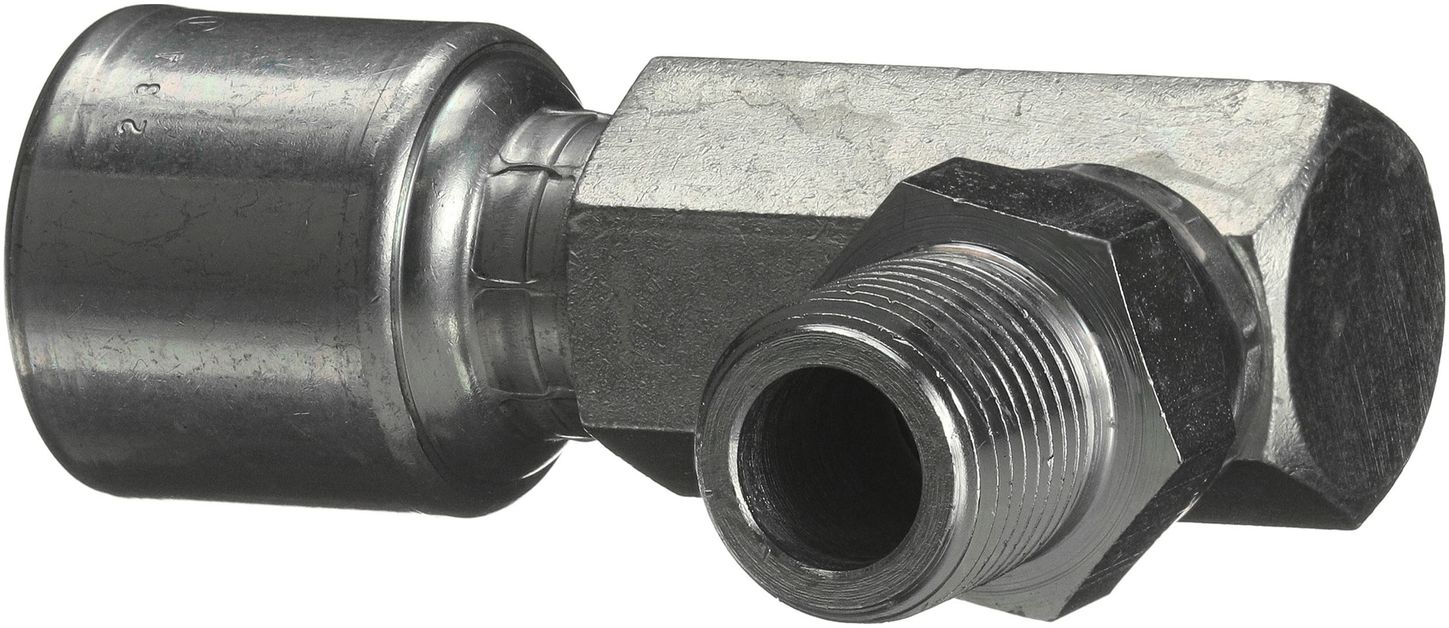

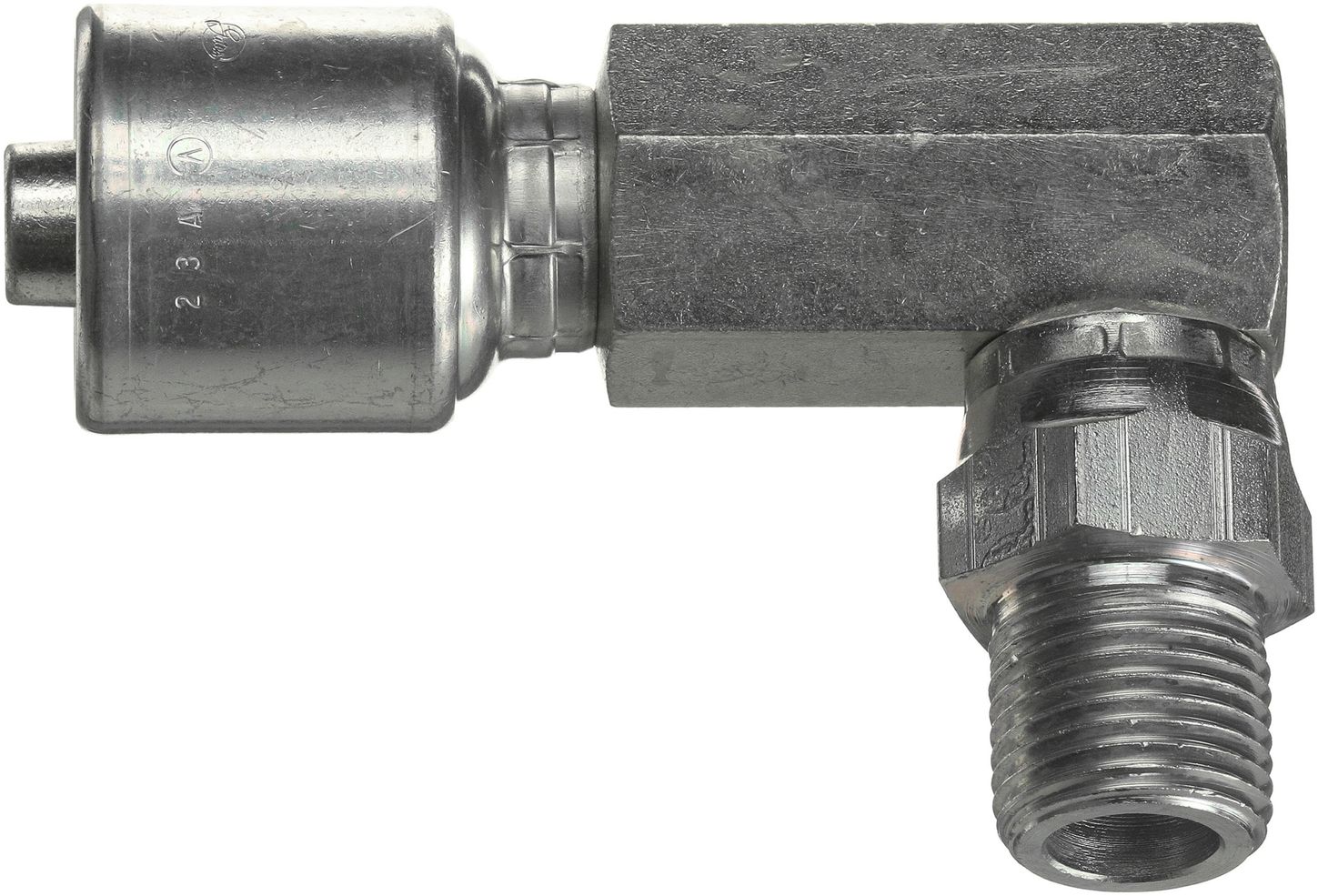

Gates G25107-0808 (8G-8MPX90L) Male Pipe Swivel - 90 Long Block (NPTF - Without 30 Cone Seat) (MegaCrimp)

Male Pipe Swivel - 90 Long Block (NPTF - Without 30 Cone Seat) (MegaCrimp)

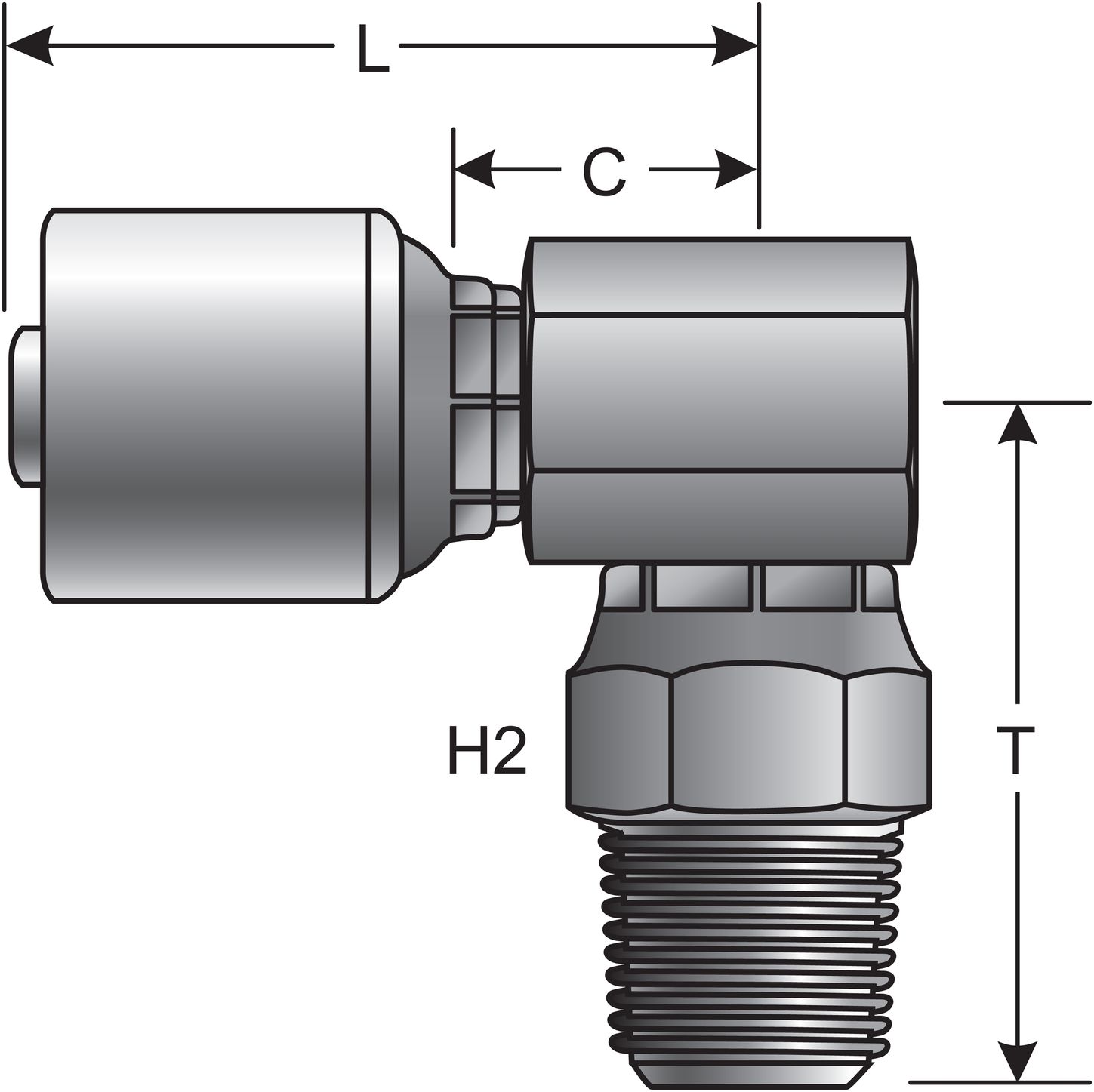

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel. These couplings have a longer reach (Length dimension) to accommodate the OmniCrimp 21 crimper.

• Robust “bite-the-wire” crimp
