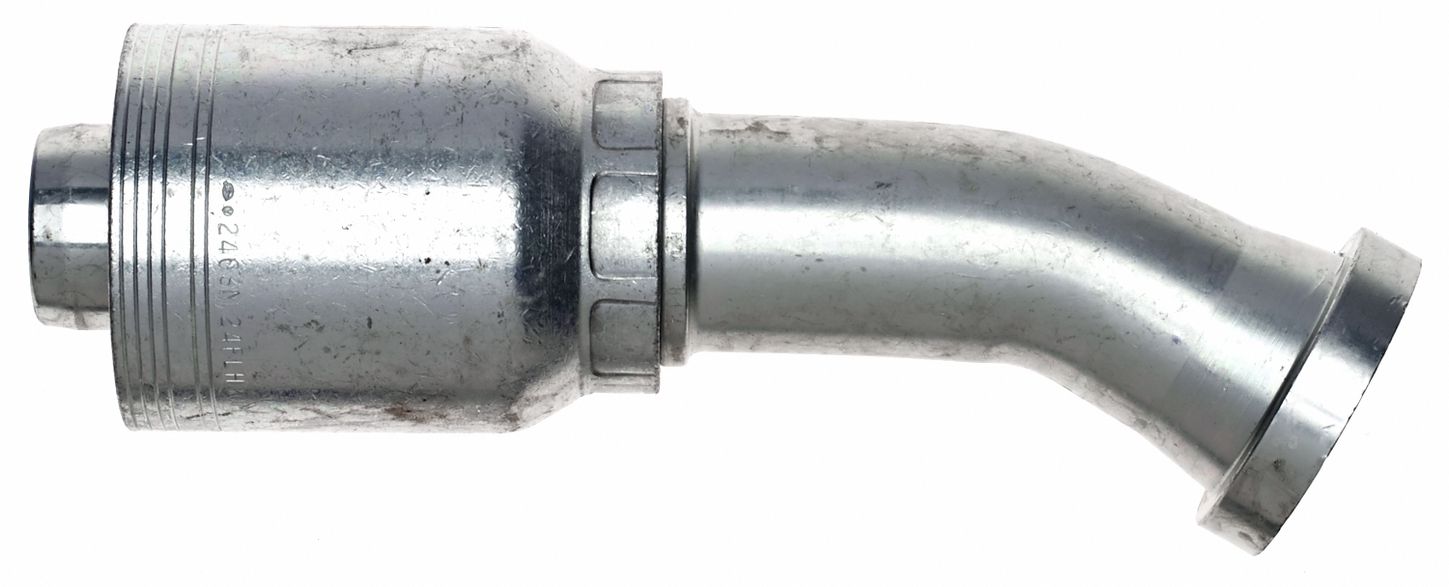

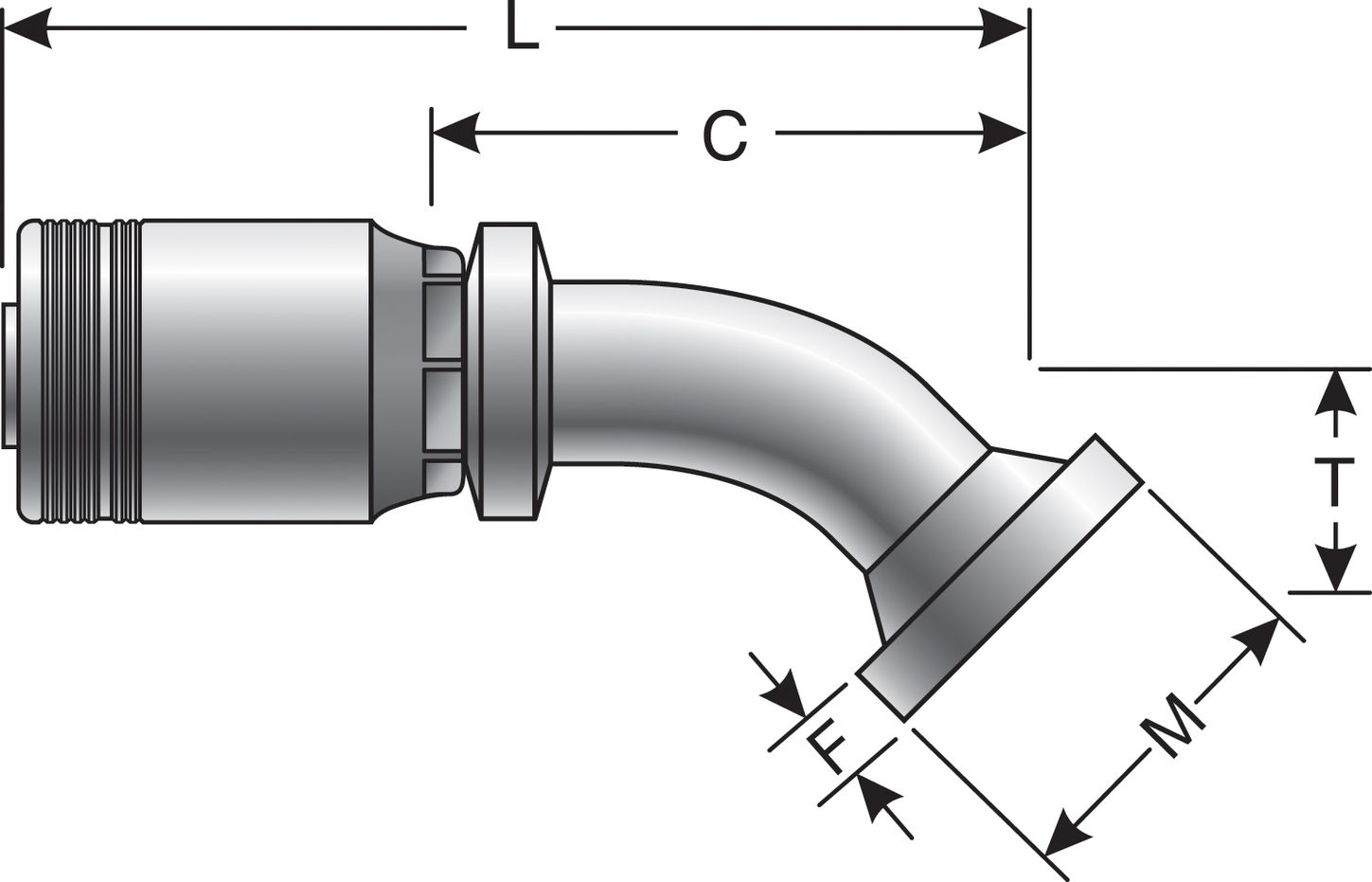

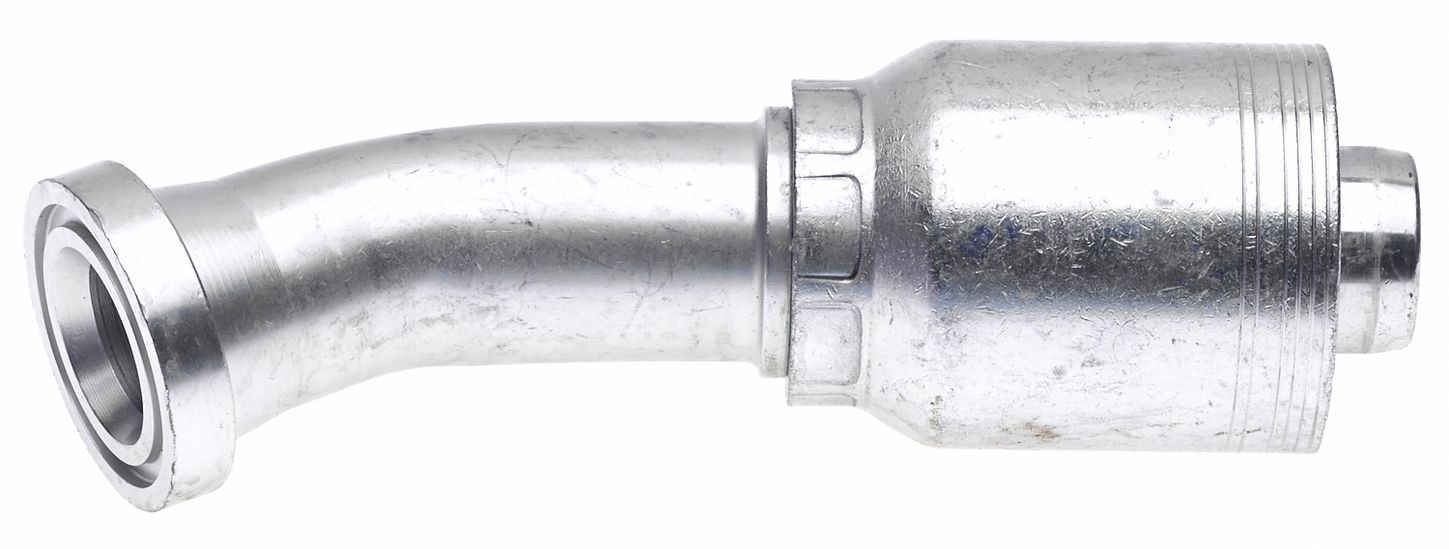

Gates G24354-2424 (24GSM-24FLH30M) Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral MAX Pressure)
SKU: G24354-2424UPC/EAN: 770075378617
Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral MAX Pressure)
$172.60
EachUsually ships within 4-10 days
Product Details
As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas, and construction are pushing current hose size and pressure limits. To meet this demand, Gates introduces an industry first: the 32GSM no-skive coupling.
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
Specifications
| SKU | G24354-2424 |
|---|---|
| UPC/EAN | 770075378617 |
| Coupling Style | GlobalSpiral Max Pressure Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 30° |
| Seal Type | O-Ring |
| Thread Size | 1 1/2" (24) |
| Gates Code | G24 |
