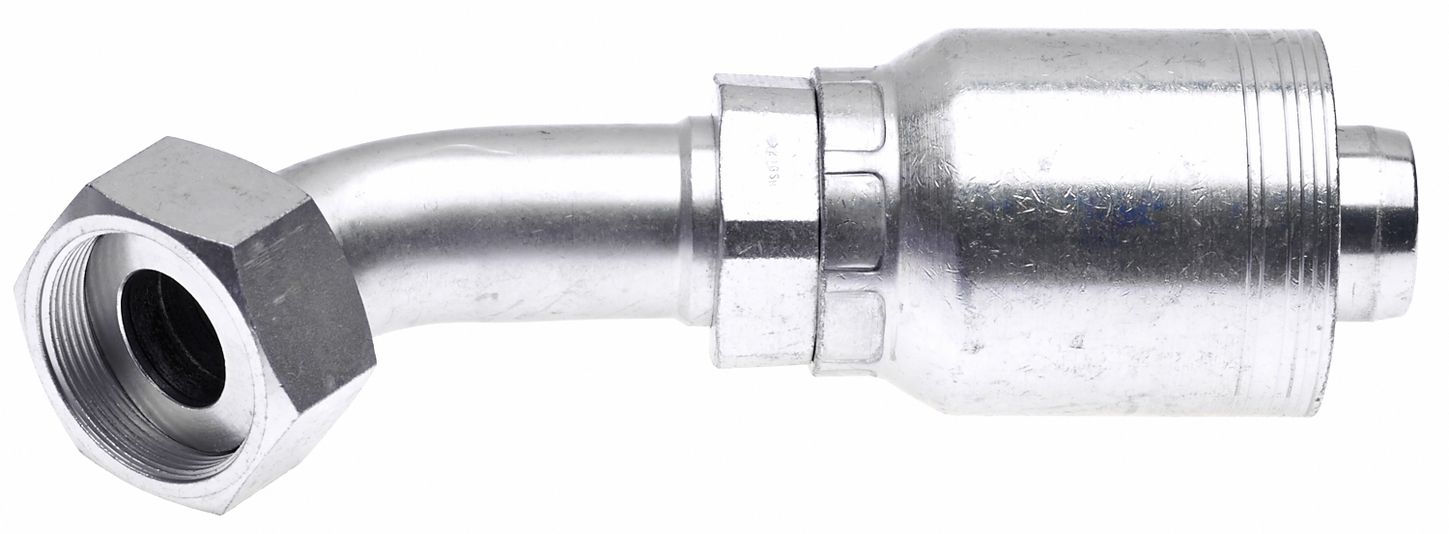

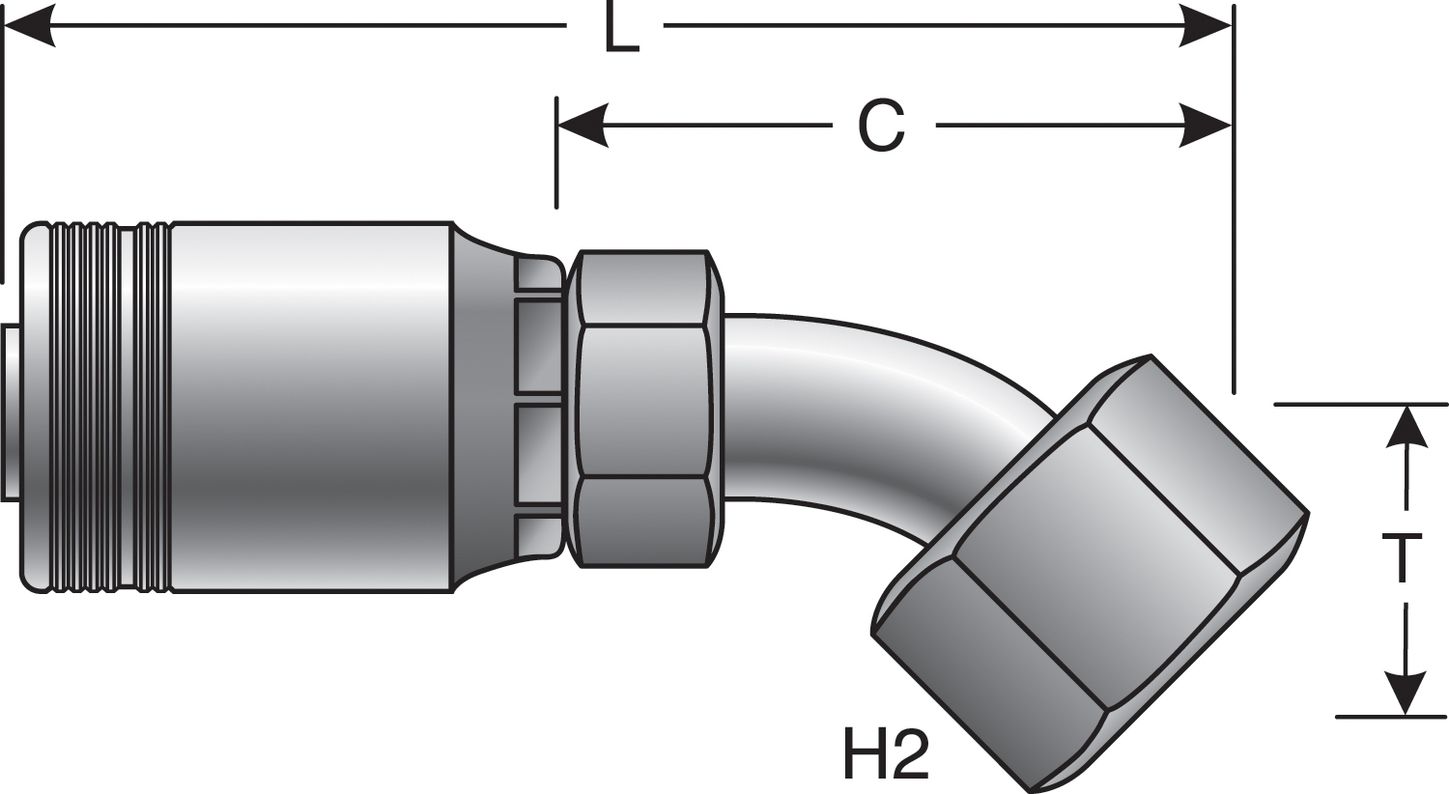

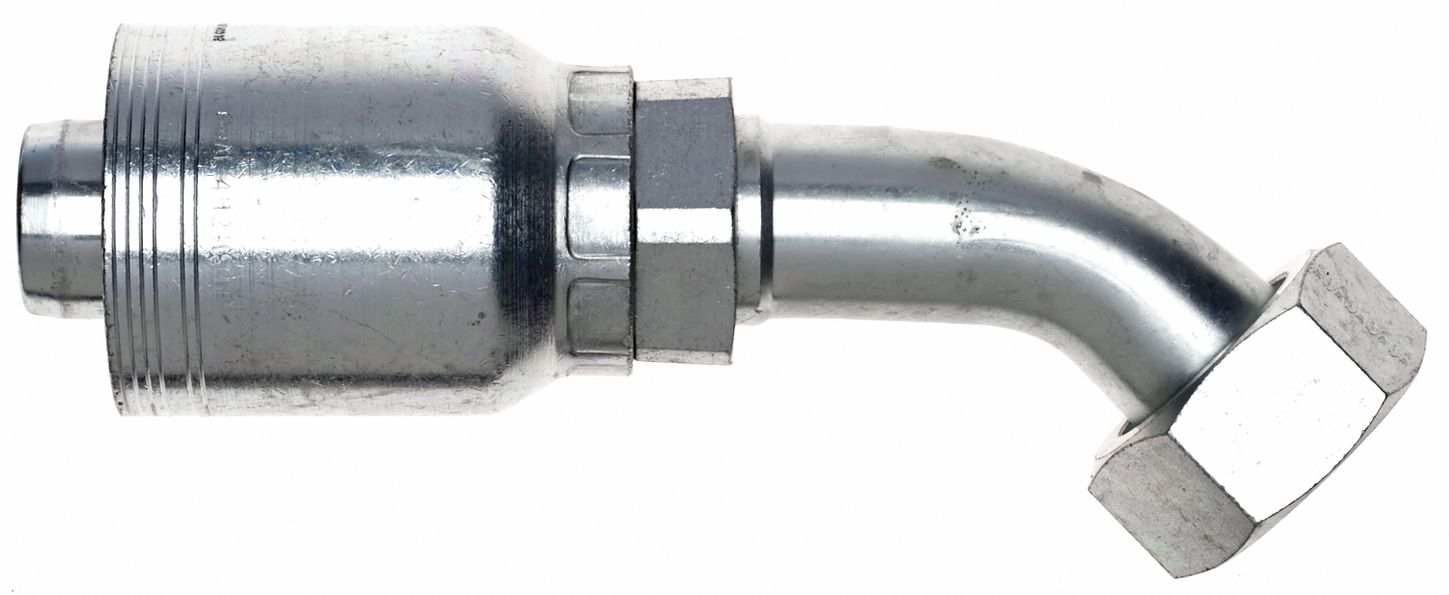

Gates G24234-2424 (24GSM4K-24FFORX45-038) Female Flat-Face Swivel - 45 Bent Tube (GlobalSpiral MAX Pressure)
SKU: G24234-2424UPC/EAN: 770075417668
Female Flat-Face Swivel - 45 Bent Tube (GlobalSpiral MAX Pressure)
$289.39
EachUsually ships within 4-10 days
Product Details
As mobile equipment platforms become more compact and powerful, they require larger diameter hydraulic hose with higher working pressures to meet performance demands. Large equipment used in industries like mining, oil and gas, and construction are pushing current hose size and pressure limits. To meet this demand, Gates introduces an industry first: the 32GSM no-skive coupling.
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
Specifications
| SKU | G24234-2424 |
|---|---|
| UPC/EAN | 770075417668 |
| Coupling Style | GlobalSpiral Max Pressure Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 2" (32) |
| Gates Code | G24 |
