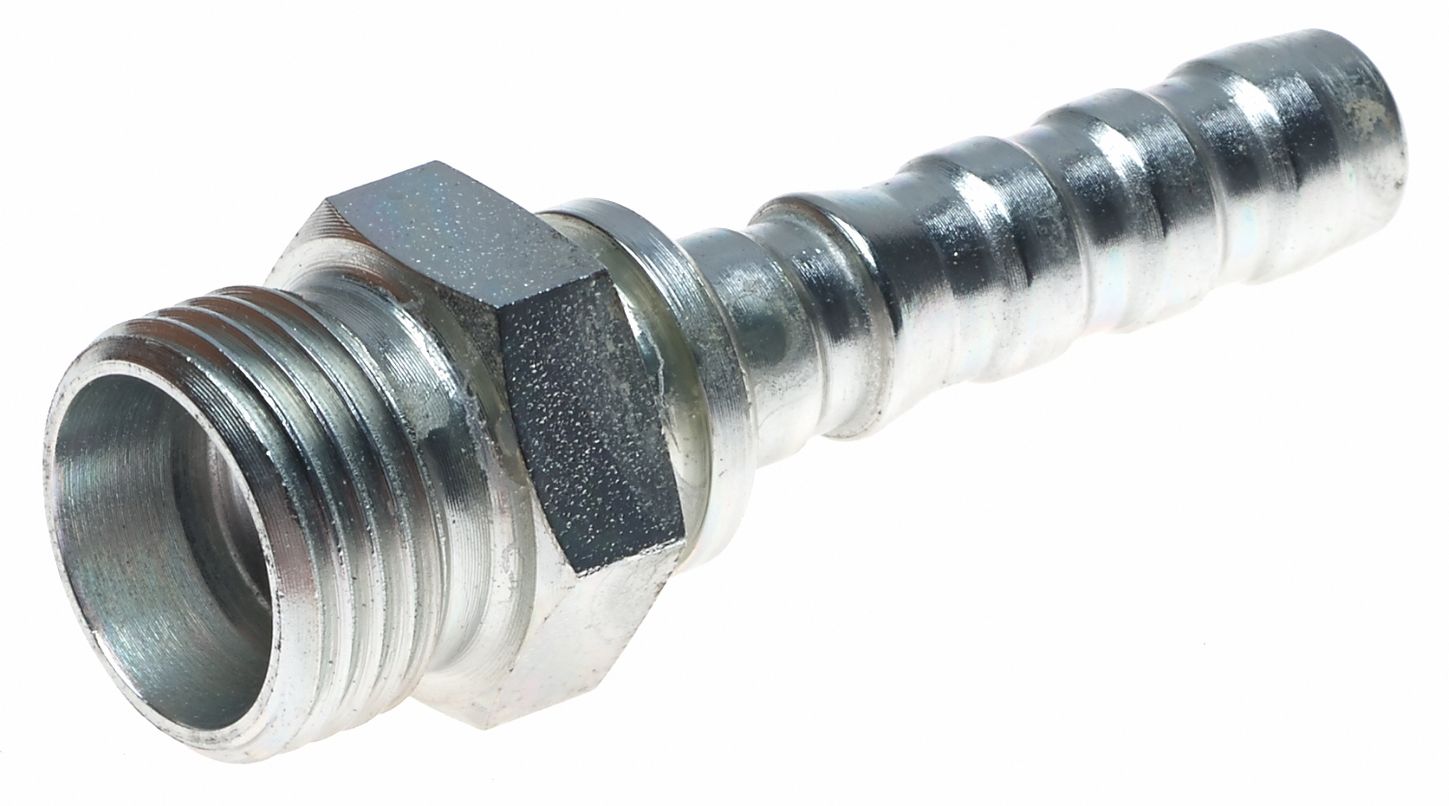

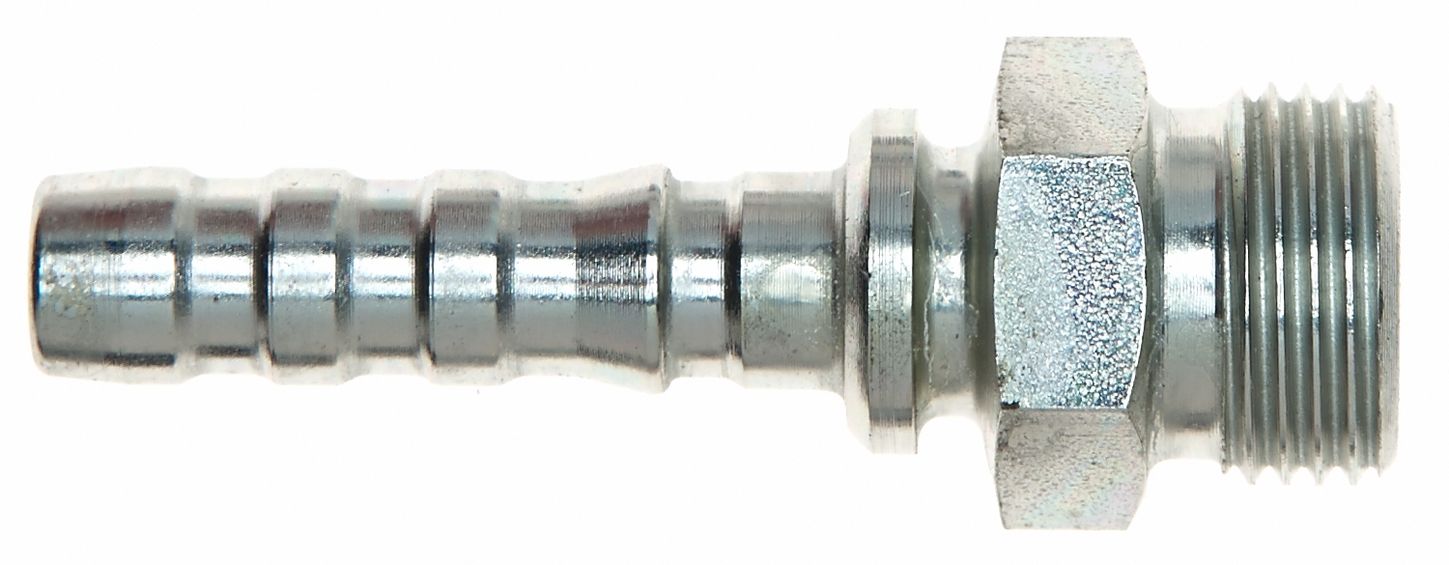

Gates G20615-1222 (12GS-22MDL) Male DIN 24 Cone - Light Series (GlobalSpiral)
SKU: G20615-1222UPC/EAN: 072053497366
Male DIN 24 Cone - Light Series (GlobalSpiral)
$47.98
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Do not use at a pressure above DIN Light ratings. Nut Hex per ISO Draft International Standards 12151-2. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention

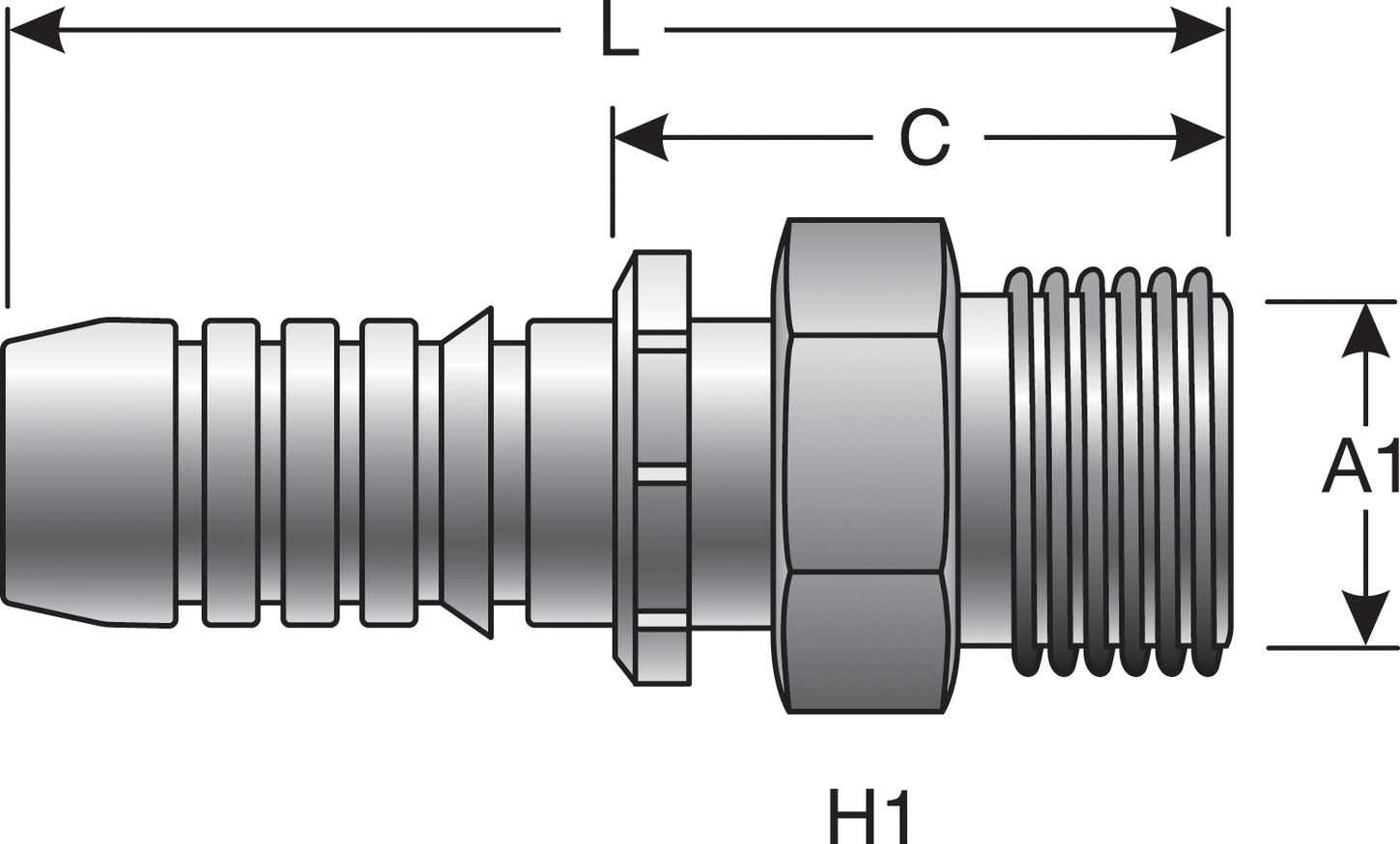

Specifications
| SKU | G20615-1222 |
|---|---|
| UPC/EAN | 072053497366 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | Male DIN Cone (MD) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 3/16" (19) |
| Gates Code | G20 |
You may also like
Gates G20645-1222 (12GS-22FDLORX) Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
$69.89Each
Gates G20650-1222 (12GS-22FDLORX45) Female DIN 24 Cone Swvl-Light Series with O-Ring-45 Bent Tube (GlobalSpiral)
$64.11Each
Gates G20615-1628 (16GS-28MDL) Male DIN 24 Cone - Light Series (GlobalSpiral)
$60.98Each

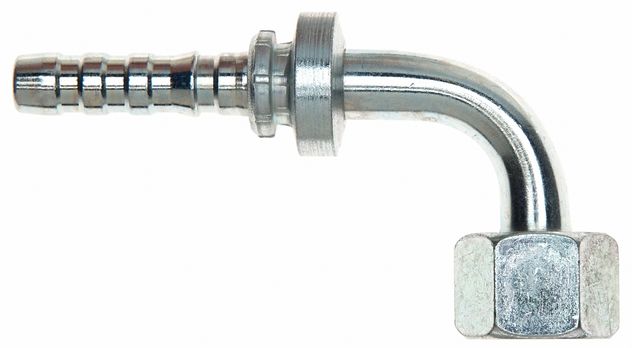

Gates G20655-1222 (12GS-22FDLORX90) Female DIN 24 Cone Swvl-Light Series with O-Ring-90 Bent Tube (GlobalSpiral)
$67.24Each
Gates G20645-1228 (12GS-28FDLORX) Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
$50.04Each
Gates G20715-1220 (12GS-20MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$45.79Each
Gates G25615-1222 (12G-22MDL) Male DIN 24 Cone - Light Series (MegaCrimp)
$47.30Each
Gates G20645-0612 (6GS-12FDLORX) Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
$32.23Each
Gates G20715-1225 (12GS-25MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$54.54Each
Gates G20715-1230 (12GS-30MDH) Male DIN 24 Cone - Heavy Series (GlobalSpiral)
$63.89Each

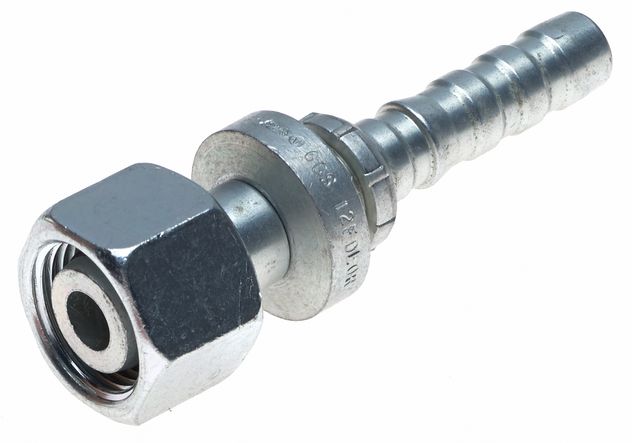

Gates G20645-2035 (20GS-35FDLORX) Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
