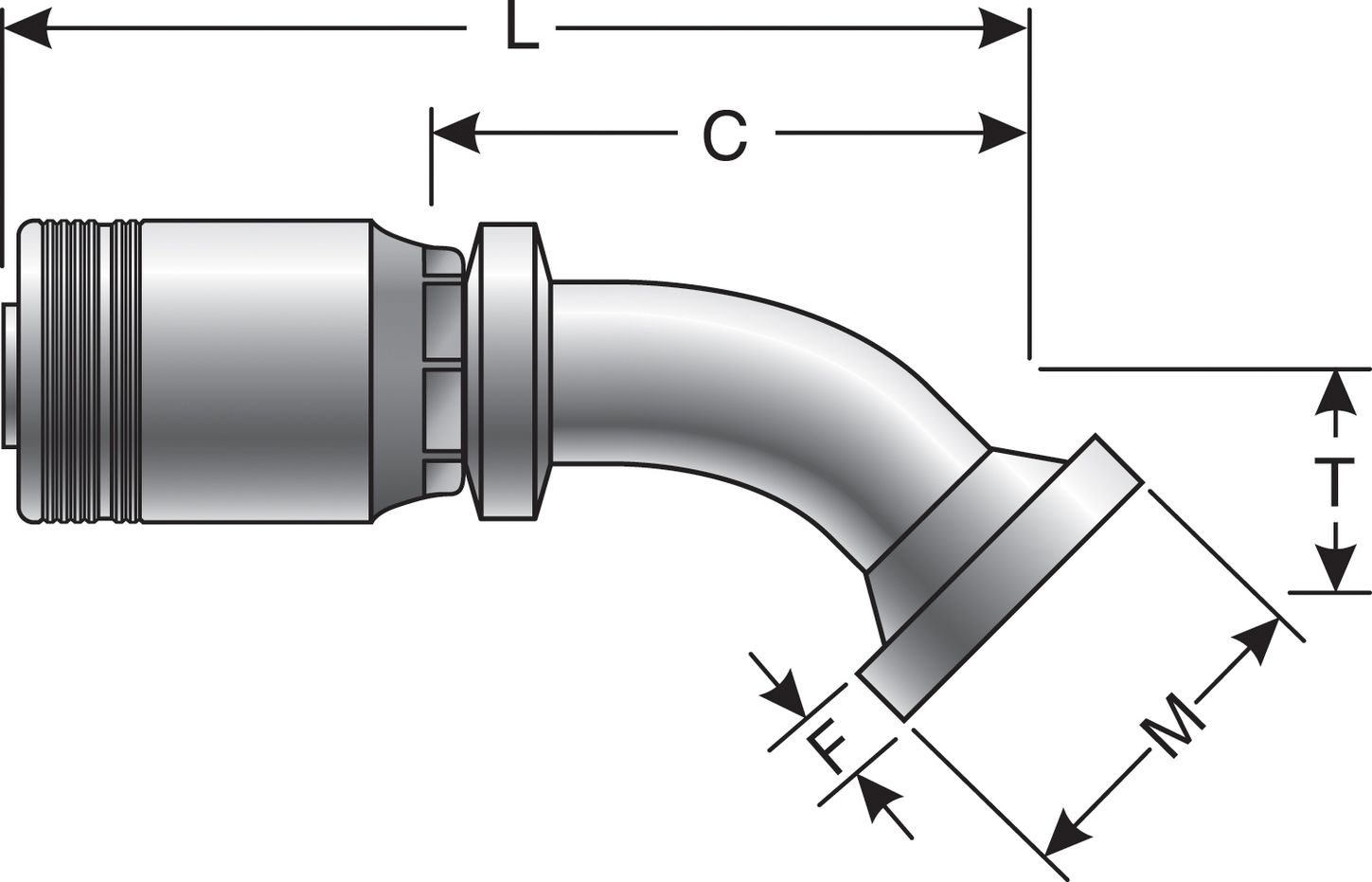

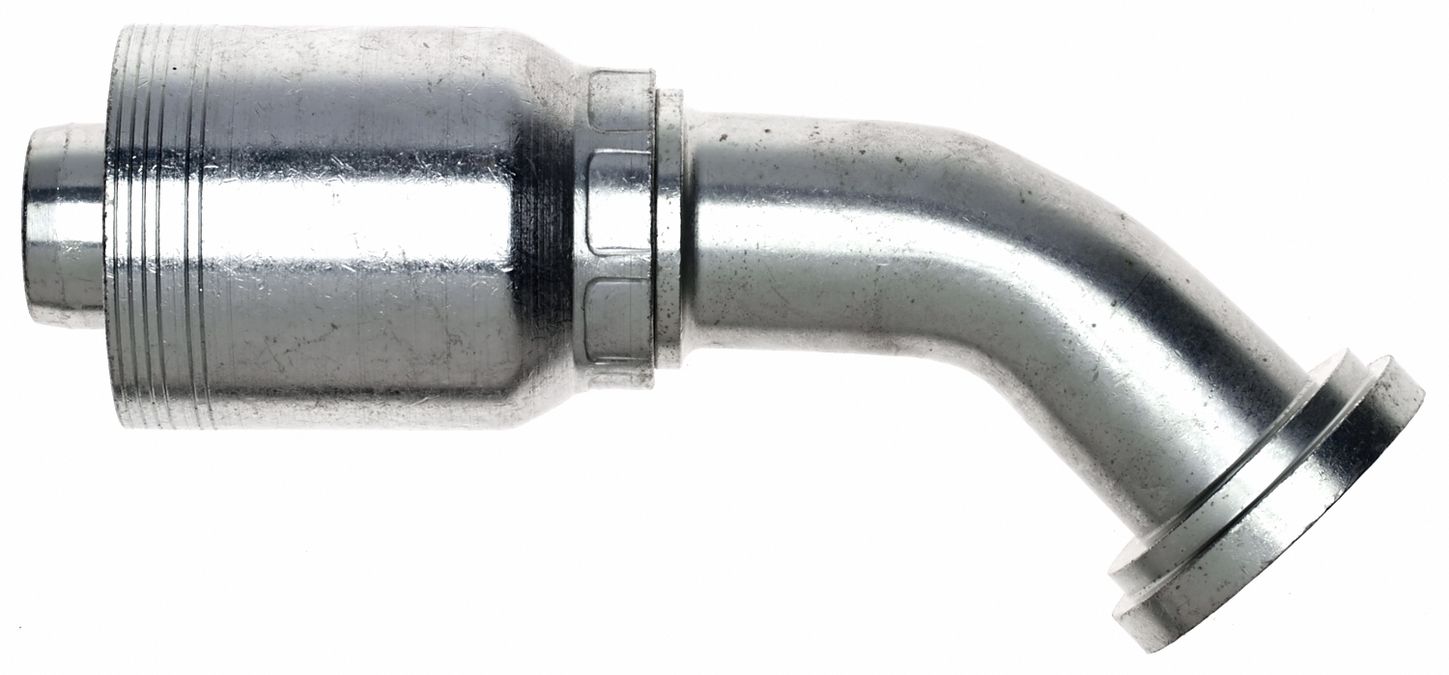

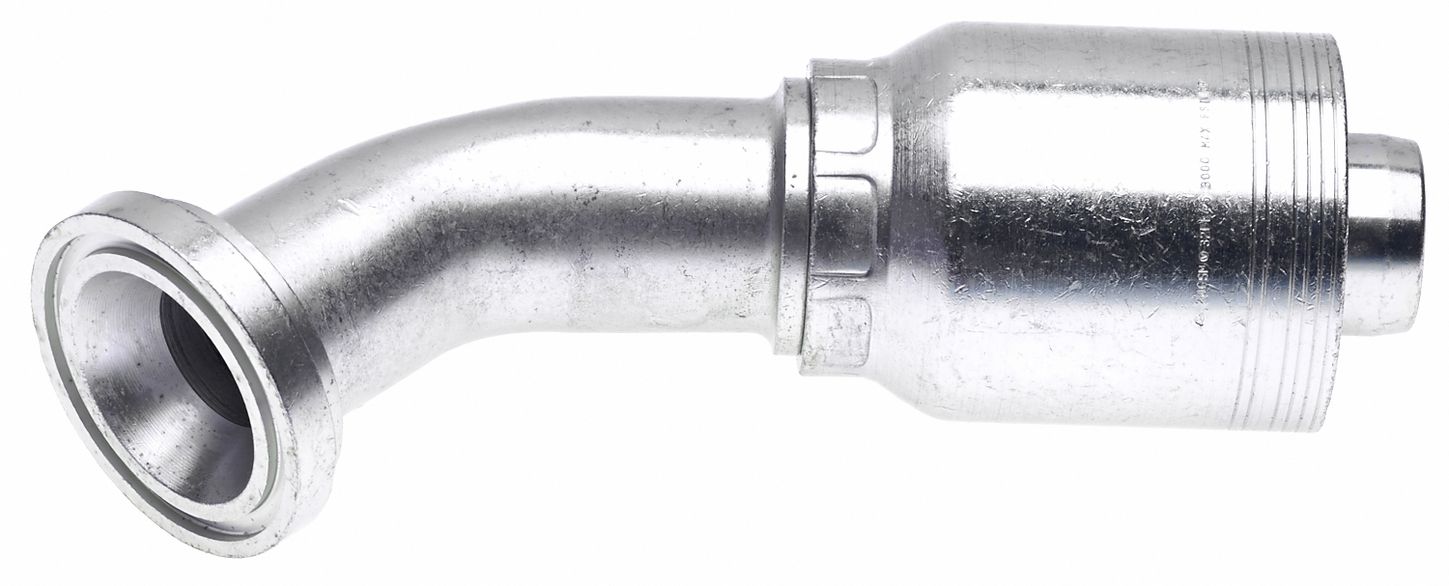

Gates G24306-2432 (24GSM-32FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral MAX Pressure)

Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral MAX Pressure)

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. During testing, the 32GSM coupling and -32 EFG6K and EFG6K-MTF hose assemblies withstood 1,000,000 impulse cycles at +250 Deg. F (+121 Deg. C) with no evidence of stress cracks in the tubing. The assembly exceeds all performance requirements of SAE, ISO, and EN. Maximum working pressure 3,000 psi.

• “Bite-the-wire” crimp for improved coupling retention
