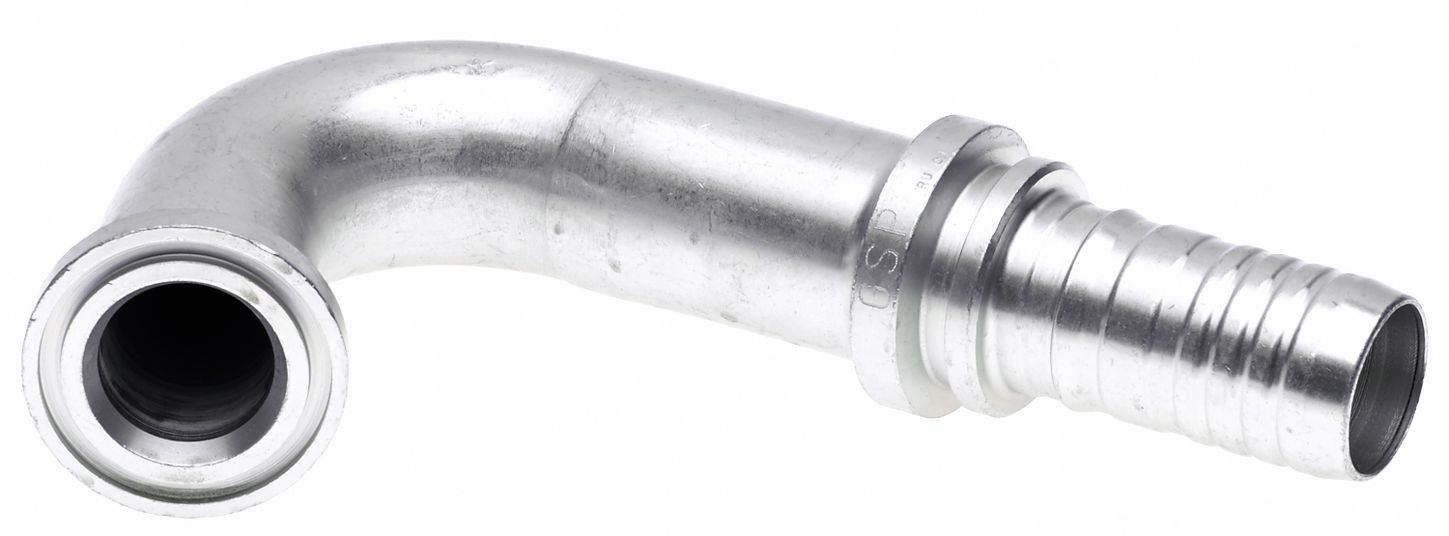

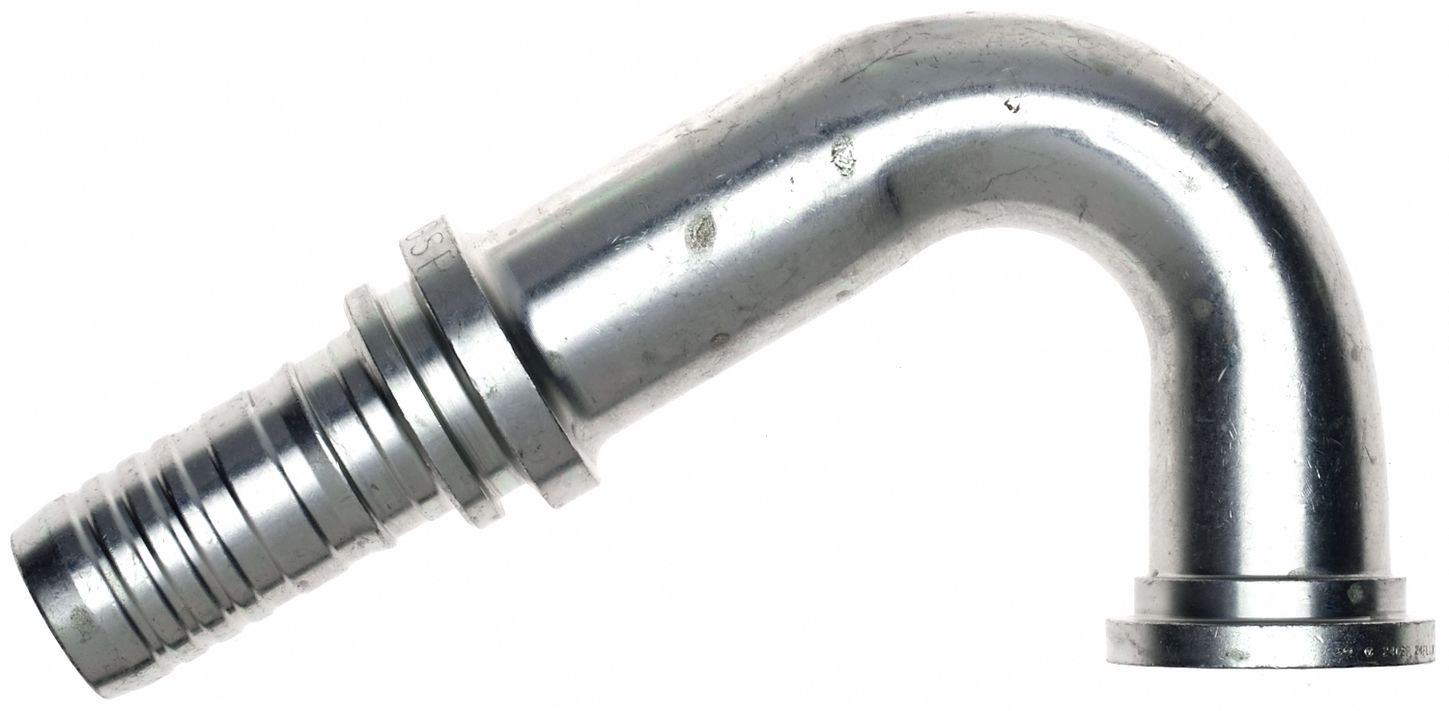

Gates G22329-3232 (32GSP-32FL125-150) Code 61 O-Ring Flange - 125 Bent Tube (GlobalSpiral Plus)

Code 61 O-Ring Flange - 125 Bent Tube (GlobalSpiral Plus)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 3,000 psi. See Accessories for O-Rings.

• “Bite-the-wire” crimp for improved coupling retention
