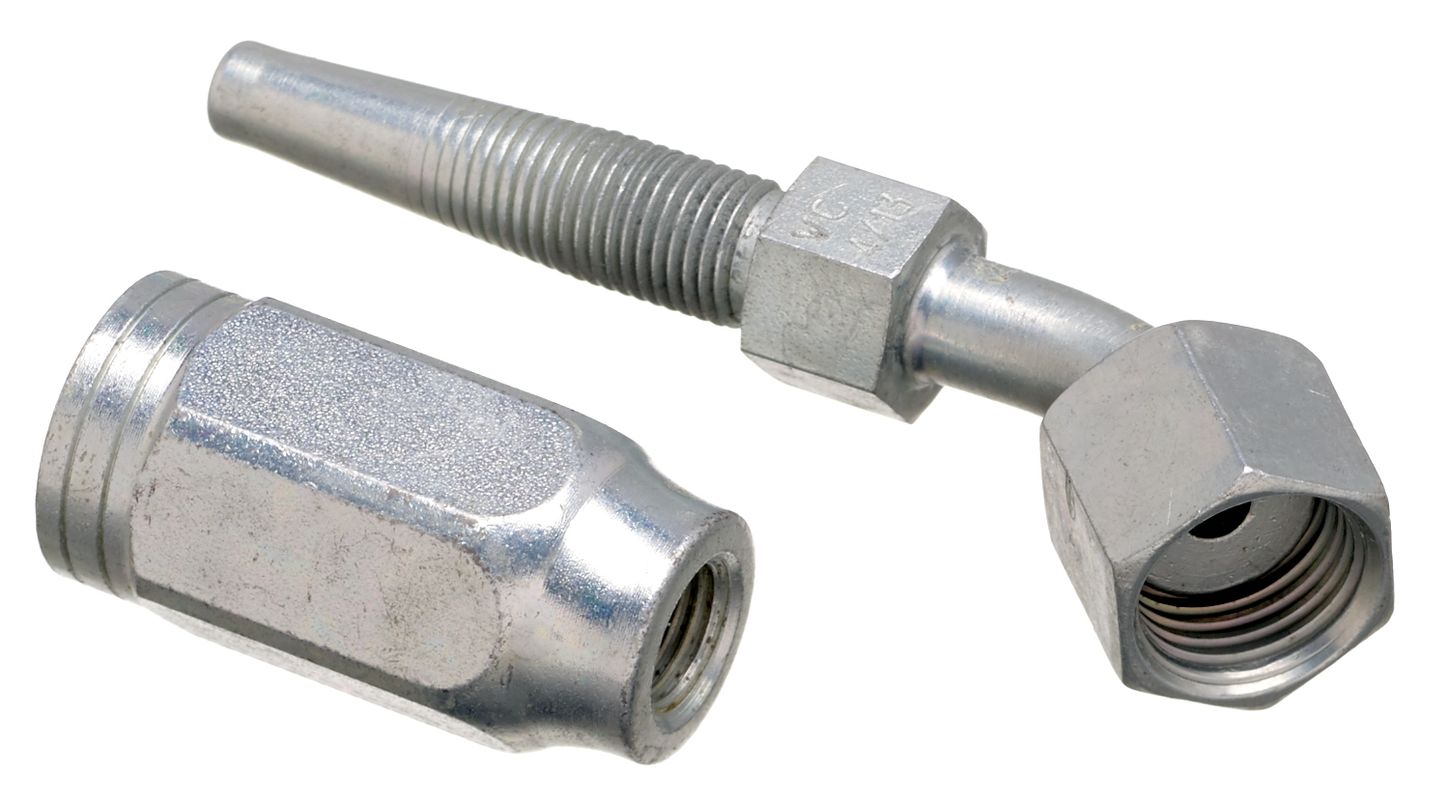

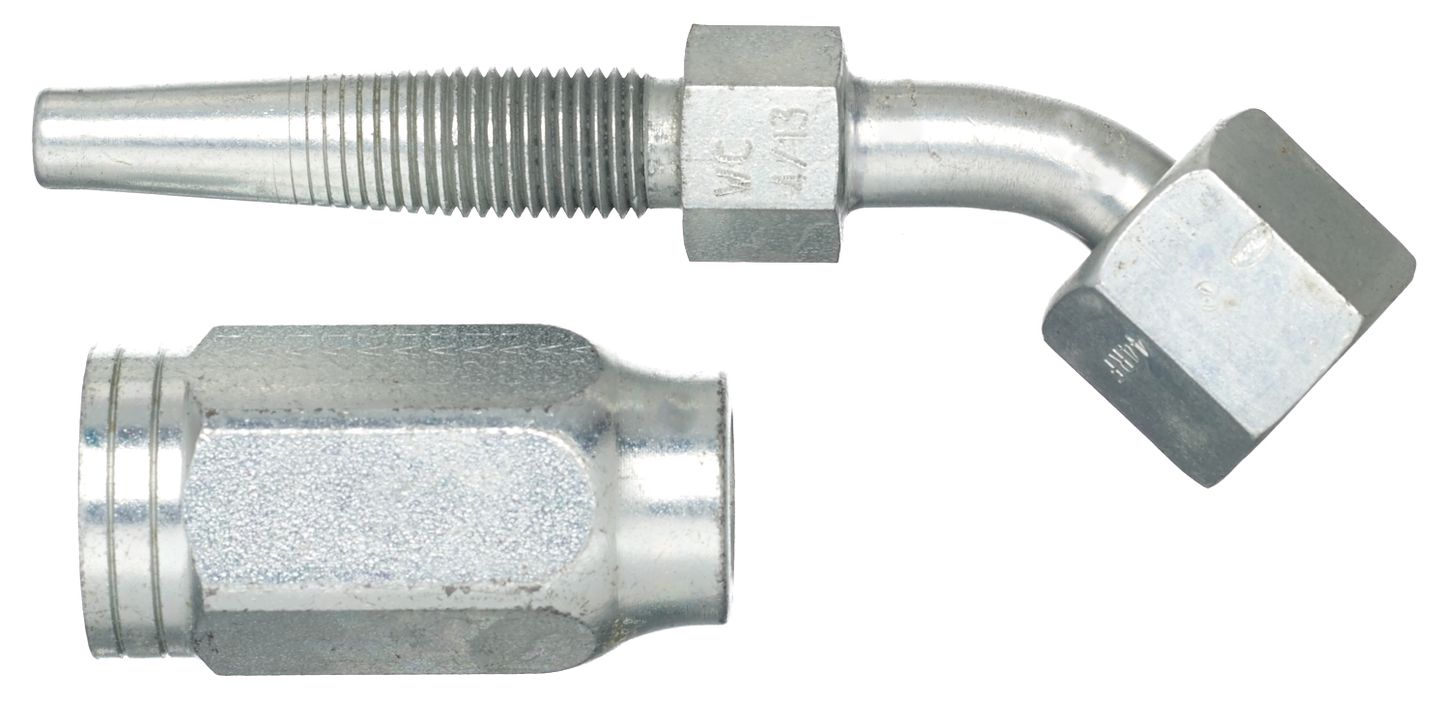

Gates G28234-1212 (12C2AT-12RFFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
SKU: G28234-1212UPC/EAN: 072053982596
Female Flat-Face O-Ring Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
$103.98
EachUsually ships within 4-10 days
Product Details
Field Attachable Type T couplings provide a solution when crimping is not available. SAE J1453 O-Ring Face Seal.
- For use with G1, G2H and G2L hoses
Specifications
| SKU | G28234-1212 |
|---|---|
| UPC/EAN | 072053982596 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 1 13/16" (29) |
| Gates Code | G28 |
You may also like
Gates G28234-0404 (4C2AT-4RFFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
$55.68Each
Gates G28234-0606 (6C2AT-6RFFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
$59.13Each
Gates G28230-1212 (12C2AT-12RFFORX) Female Flat-Face O-Ring Swivel (Type T for G2 Hose - 2 Wire)
$78.62Each
Gates G28239-1212 (12C2AT-12RFFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
$80.99Each
Gates G28234-0808 (8C2AT-8RFFORX45S) Female Flat-Face O-Ring Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
$65.81Each
Gates G28239-0808 (8C2AT-8RFFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
$69.65Each
Gates G28230-0808 (8C2AT-8RFFORX) Female Flat-Face O-Ring Swivel (Type T for G2 Hose - 2 Wire)
$40.85Each
Gates G28239-0404 (4C2AT-4RFFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
$55.68Each
Gates G28239-0606 (6C2AT-6RFFORX90S) Female Flat-Face O-Ring Swivel - 90 Bent Tube (Type T for G2 Hose - 2 Wire)
$56.13Each
Gates G28230-0404 (4C2AT-4RFFORX) Female Flat-Face O-Ring Swivel (Type T for G2 Hose - 2 Wire)
$28.06Each
Gates G28230-0606 (6C2AT-6RFFORX) Female Flat-Face O-Ring Swivel (Type T for G2 Hose - 2 Wire)
$38.63Each

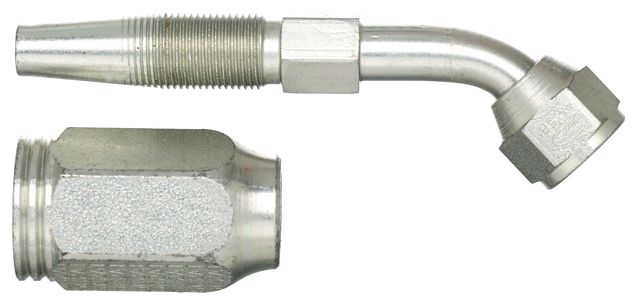

Gates G28175-1212 (12C2AT-12RFJX45) Female JIC 37 Flare Swivel - 45 Bent Tube (Type T for G2 Hose - 2 Wire)
