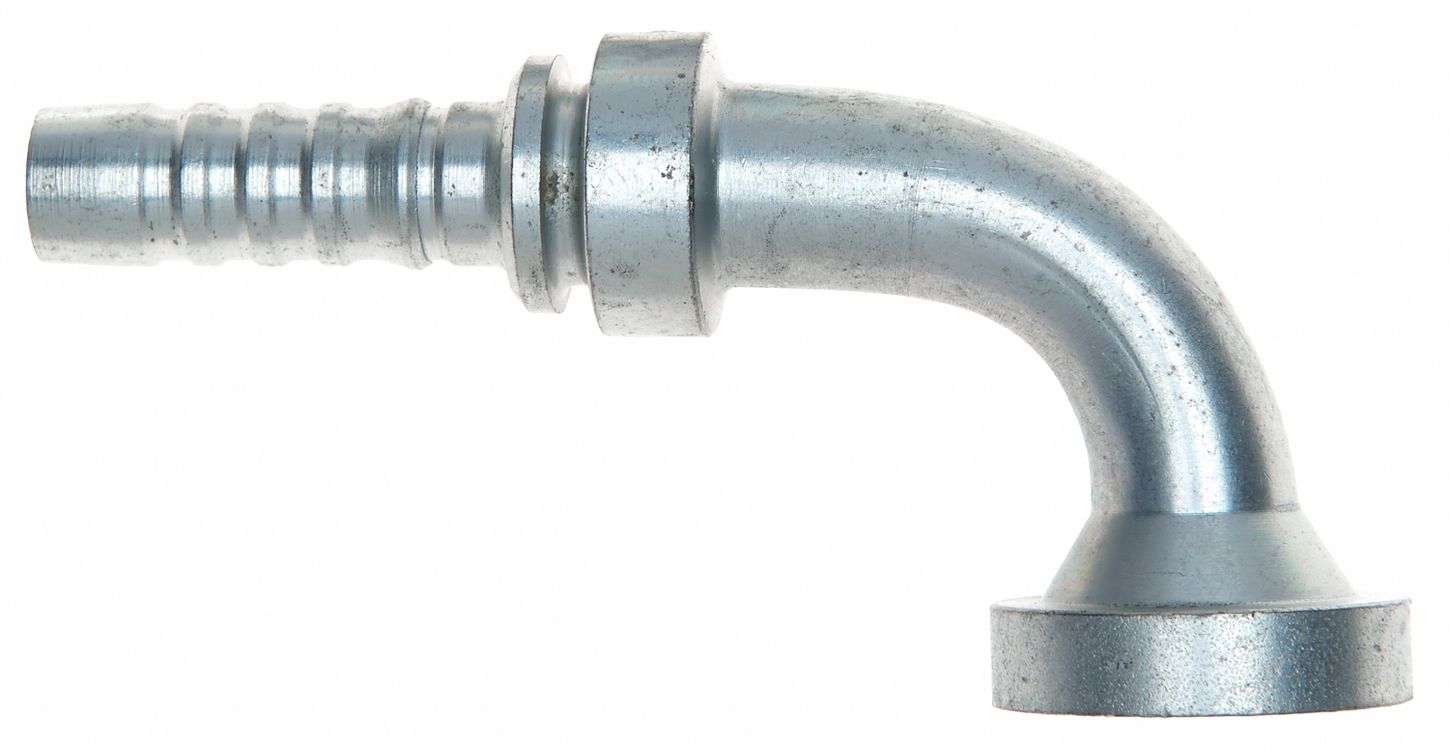

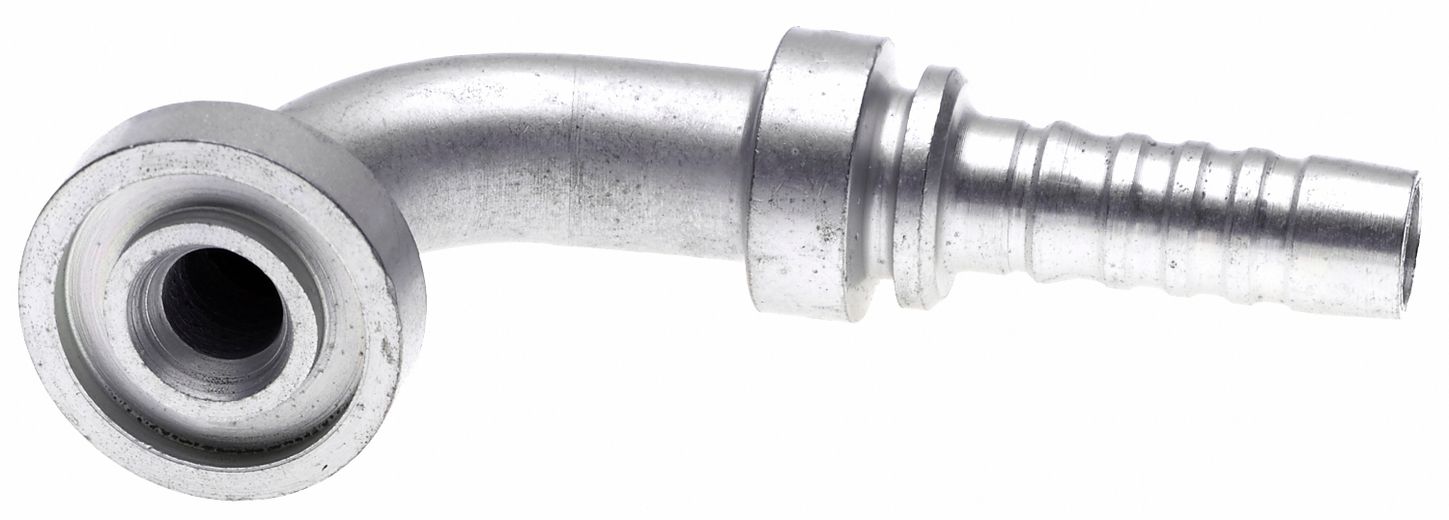

Gates G20363-1616 (16GS-16FLH90-450) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
SKU: G20363-1616UPC/EAN: 770075798507
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$169.69
EachUsually ships within 4-10 days
Product Details

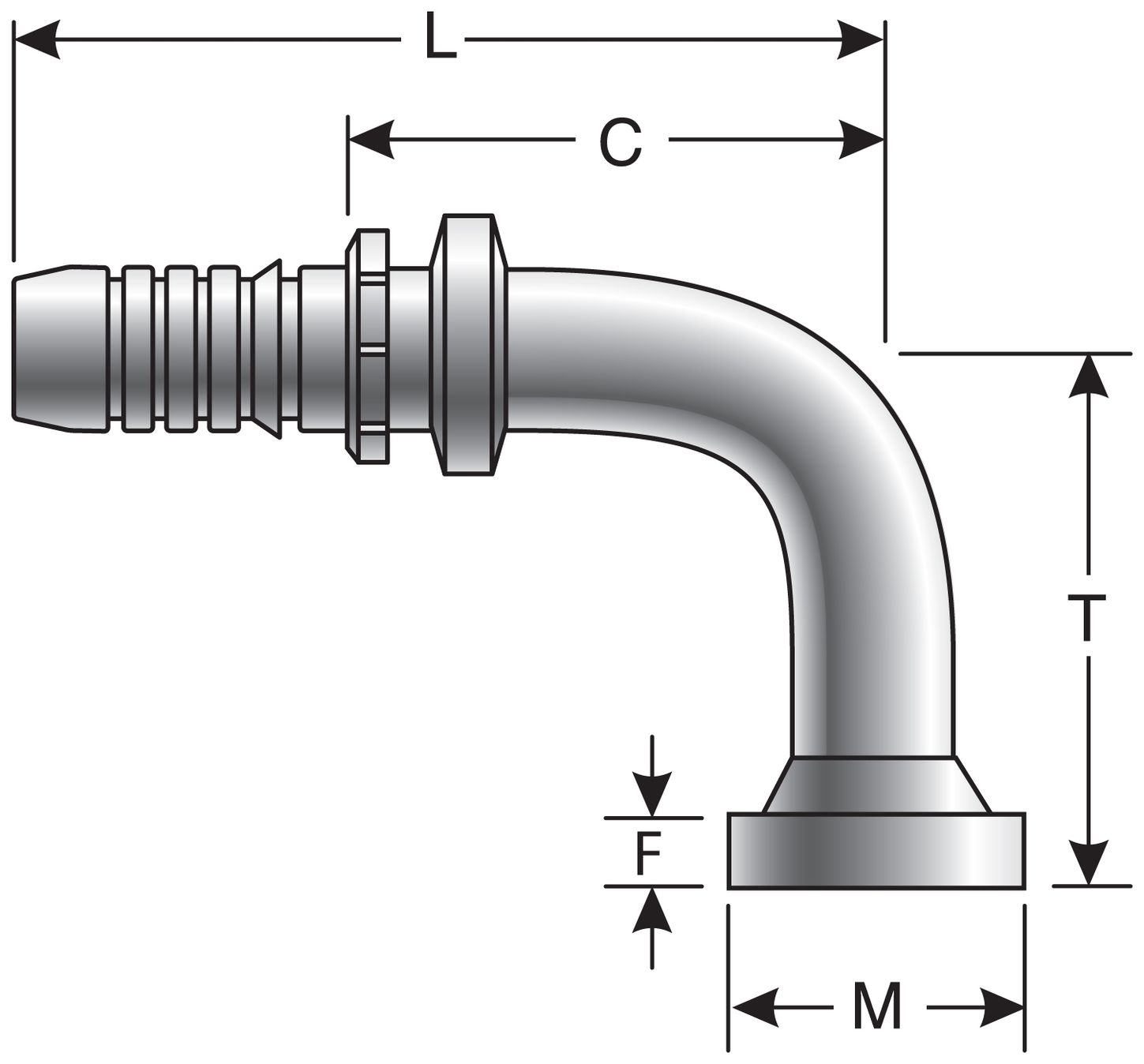

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. All FLH sizes maximum working pressure of 6,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20363-1616 |
|---|---|
| UPC/EAN | 770075798507 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1" (16) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Working Pressure Rating (PSI) | 6000 |
| Gates Code | G20 |
You may also like
Gates G20364-1616 (16GS-16FLH90S) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$81.49Each
Gates G20366-1616 (16GS-16FLH90-120) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$88.06Each
Gates G20367-1616 (16GS-16FLH90-090) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$67.56Each
Gates G20365-1616 (16GS-16FLH90M) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$70.23Each
Gates G20354-1616 (16GS-16FLH30M) Code 62 O-Ring Flange Heavy - 30 Bent Tube (GlobalSpiral)
$89.67Each
Gates G20359-1616 (16GS-16FLH60M) Code 62 O-Ring Flange Heavy - 60 Bent Tube (GlobalSpiral)
$91.91Each
Gates G20357-1616 (16GS-16FLH45M) Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
$71.81Each
Gates G20352-1616 (16GS-16FLH22M) Code 62 O-Ring Flange Heavy - 22 1/2 Bent Tube (GlobalSpiral)
$89.17EachGates G20365-1612 (16GS-12FLH90M) Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$92.46EachGates G20365-1620 (16GS-20FLH90M) 16GS-20FLH90M Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$96.80Each

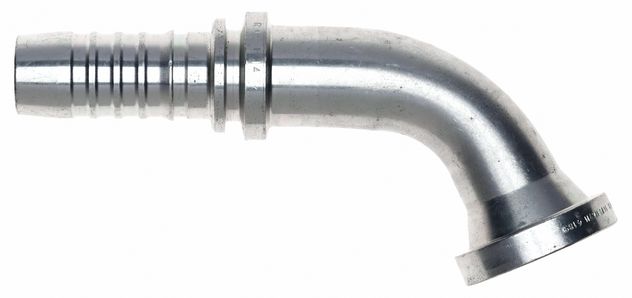

Gates G20360-1616 (16GS-16FLH67M) Code 62 O-Ring Flange Heavy - 67 1/2 Bent Tube (GlobalSpiral)
