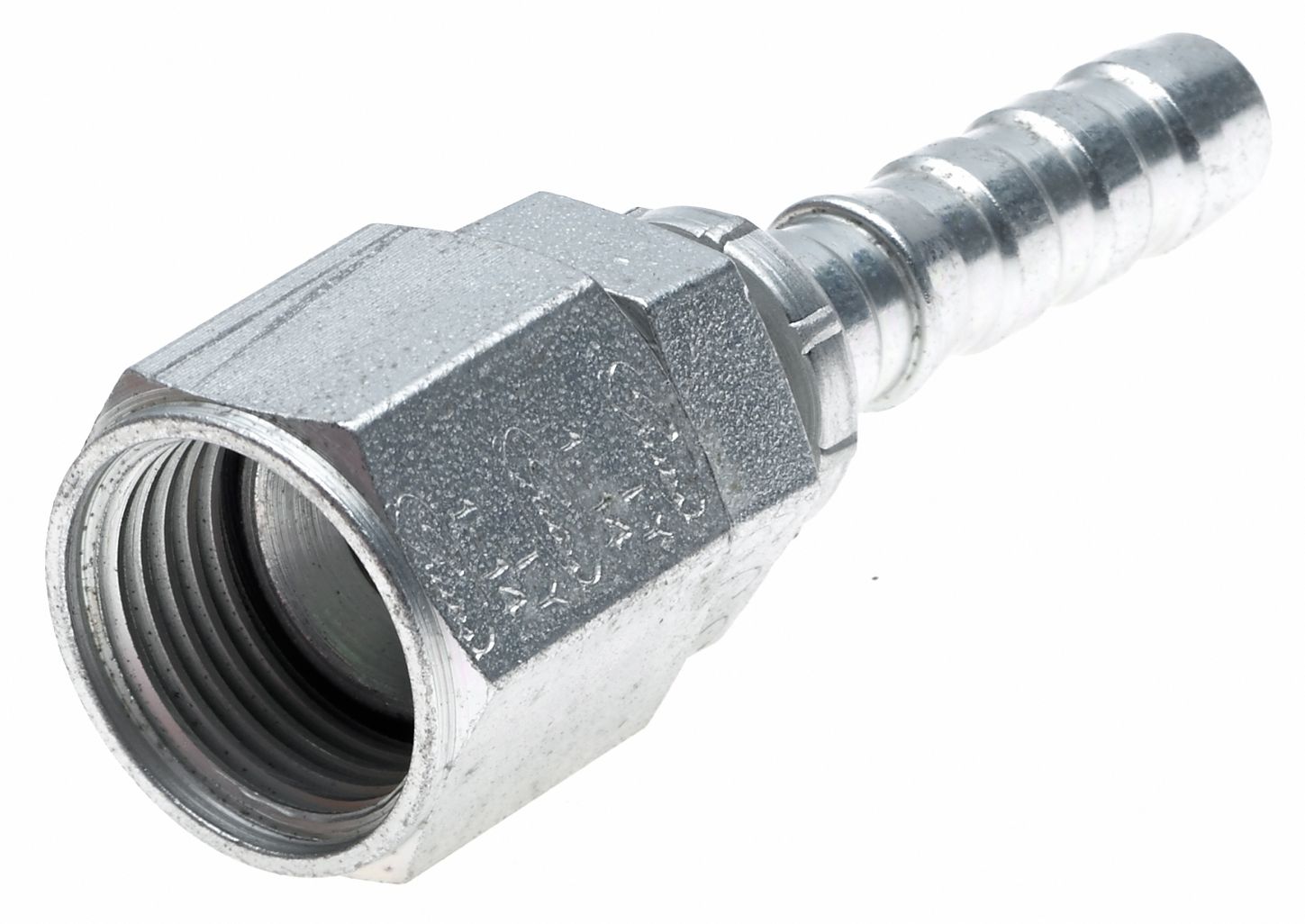

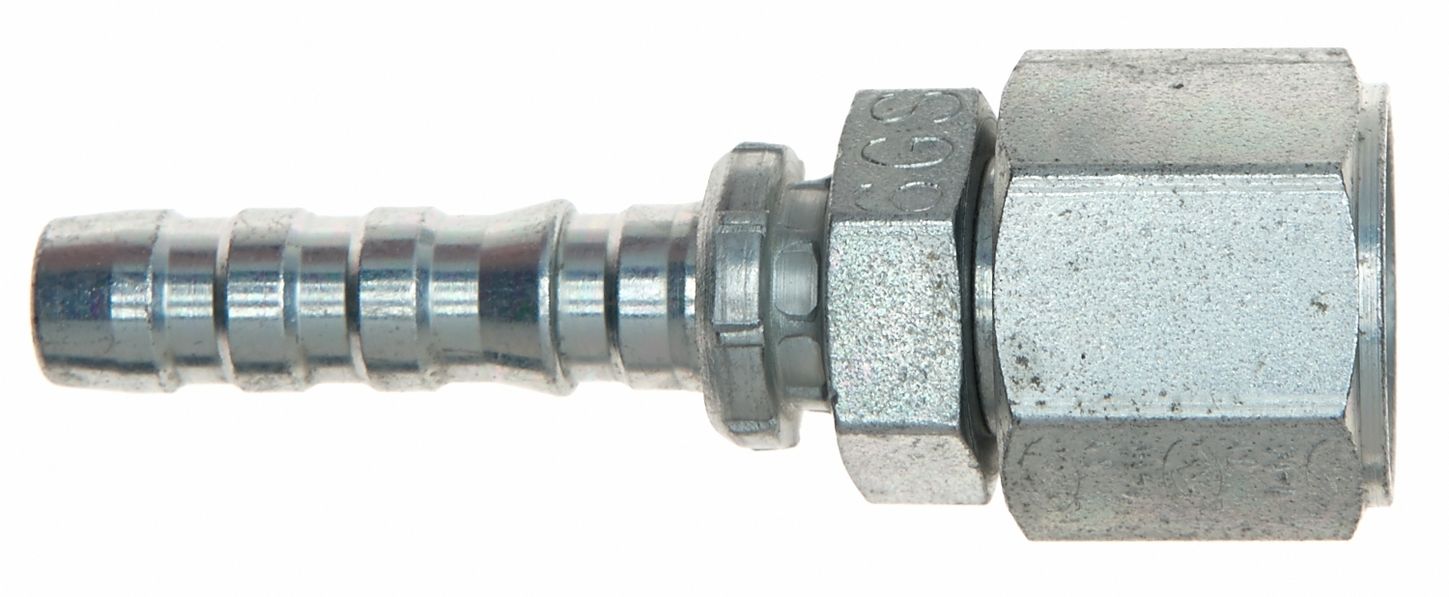

Gates G17200-1212 (12B-12FSX-SS) Female SAE 45 Flare Swivel (Stainless Steel Braid)
SKU: G17200-1212UPC/EAN: 770075521334
Female SAE 45 Flare Swivel (Stainless Steel Braid)
$116.55
EachUsually ships within 4-10 days
Product Details
Gates Stainless Steel Couplings are ideal for use in corrosive conditions such as salt spray in marine operations, caustic chemicals in agriculture applications, frequent wash downs in food and beverage processing and other harsh environments.
- Stainless steel couplings last longer than standard couplings so you can avoid replacing an entire assembly before the hose itself needs replacement
Specifications
| SKU | G17200-1212 |
|---|---|
| UPC/EAN | 770075521334 |
| Coupling Style | Stainless Steel Braid Couplings |
| Swivel | Yes |
| Thread Configuration | Female SAE Flare (FS) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 1/16" (17) |
| Gates Code | G17 |
