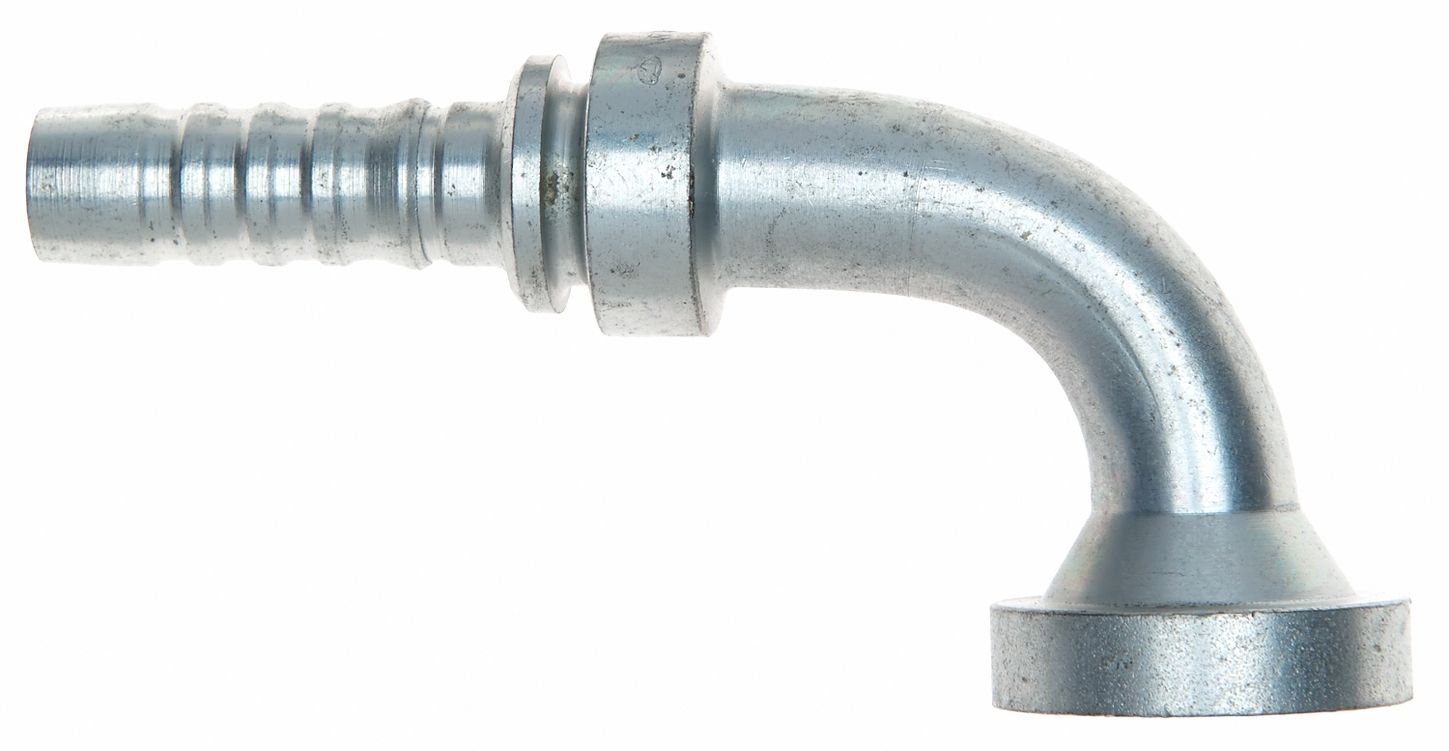

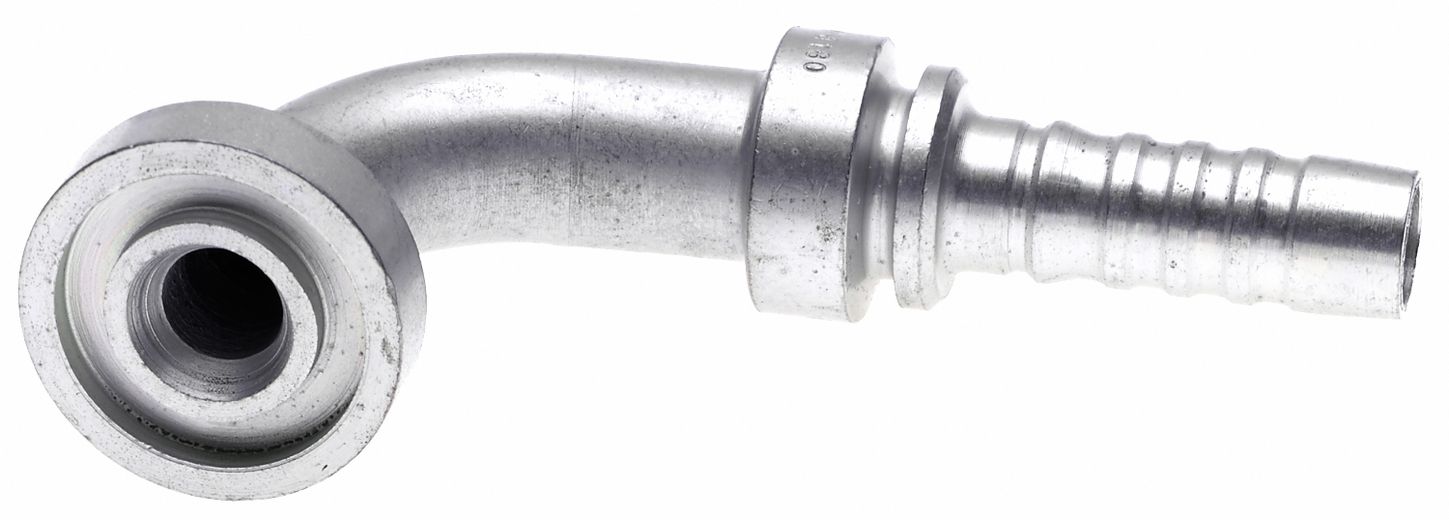

Gates G20367-1216 (12GS-16FLH90-140) 12GS-16FLH90-140 CODE 62 O-RING FLANGE HEAVY-90 BENT TUBE/LONG DROP(140mm/5.5") (GlobalSpiral)
SKU: G20367-1216Cross reference: 12GS-16FLH90-140734776715G20364-1216G20365-1216G203671216UPC/EAN: 072053676143
Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
$109.81
EachUsually ships within 4-10 days
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. All FLH sizes maximum working pressure of 6,000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20367-1216 |
|---|---|
| Cross reference | 12GS-16FLH90-140, 734776715, G20364-1216, G20365-1216, G203671216 |
| UPC/EAN | 072053676143 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Working Pressure Rating (PSI) | 6000 |
| Gates Code | G20 |
