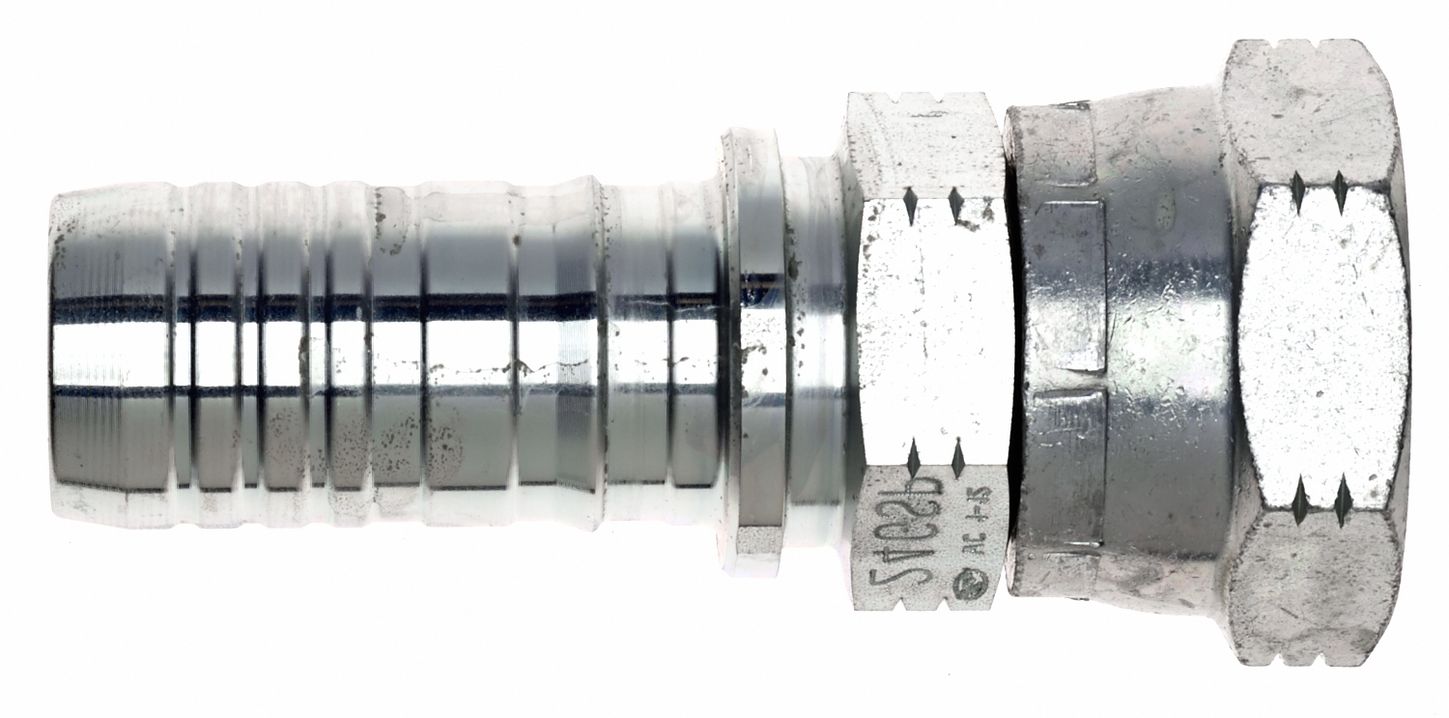

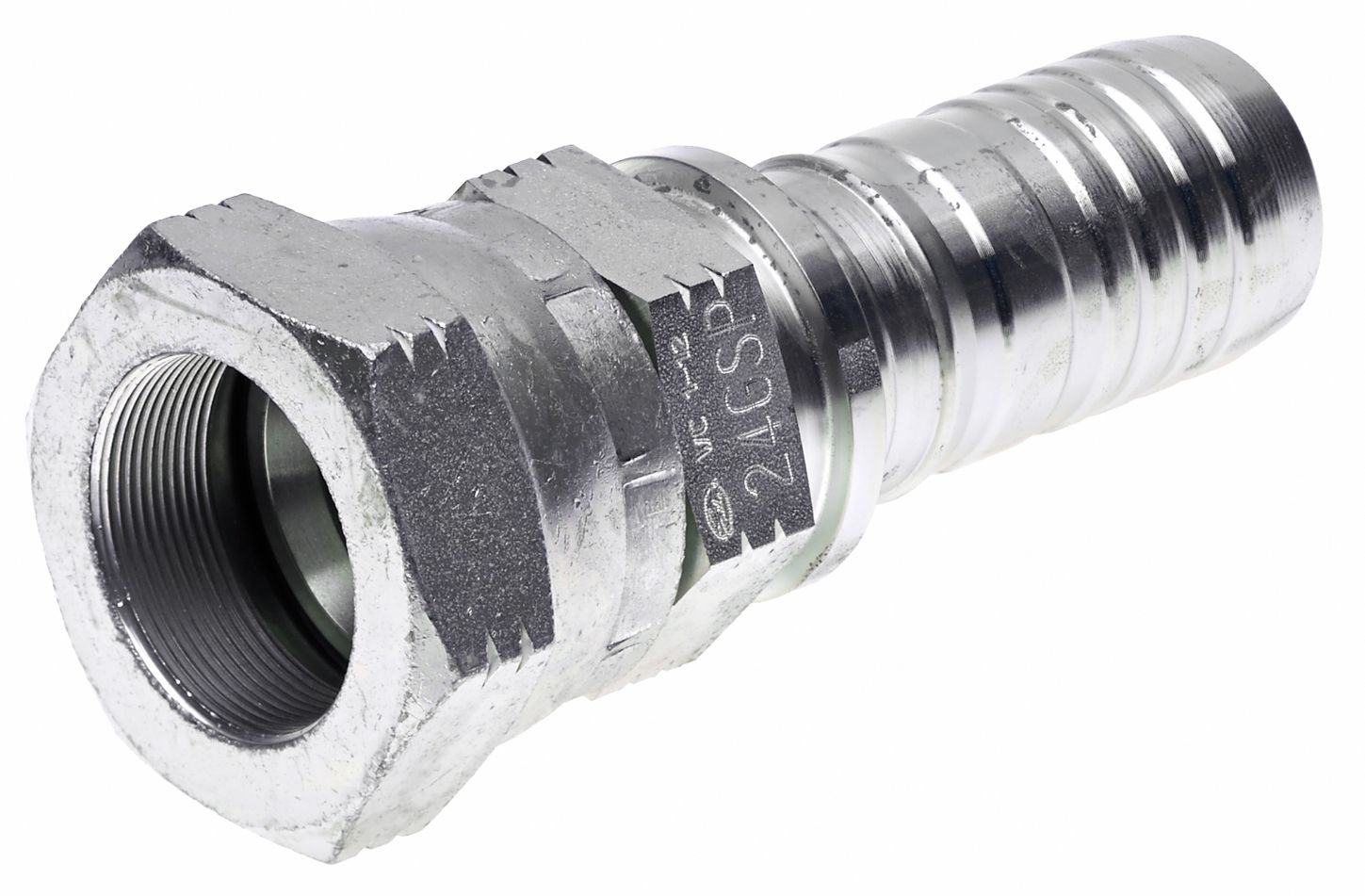

Gates G22910-2424 (24GSP-24FKX) Female Komatsu Style Japanese Metric Swivel (GlobalSpiral Plus)

Female Komatsu Style Japanese Metric Swivel (GlobalSpiral Plus)

GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Separate ferrules are required for 4-spiral hose and wire braid hose. These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.

• “Bite-the-wire” crimp for improved coupling retention
