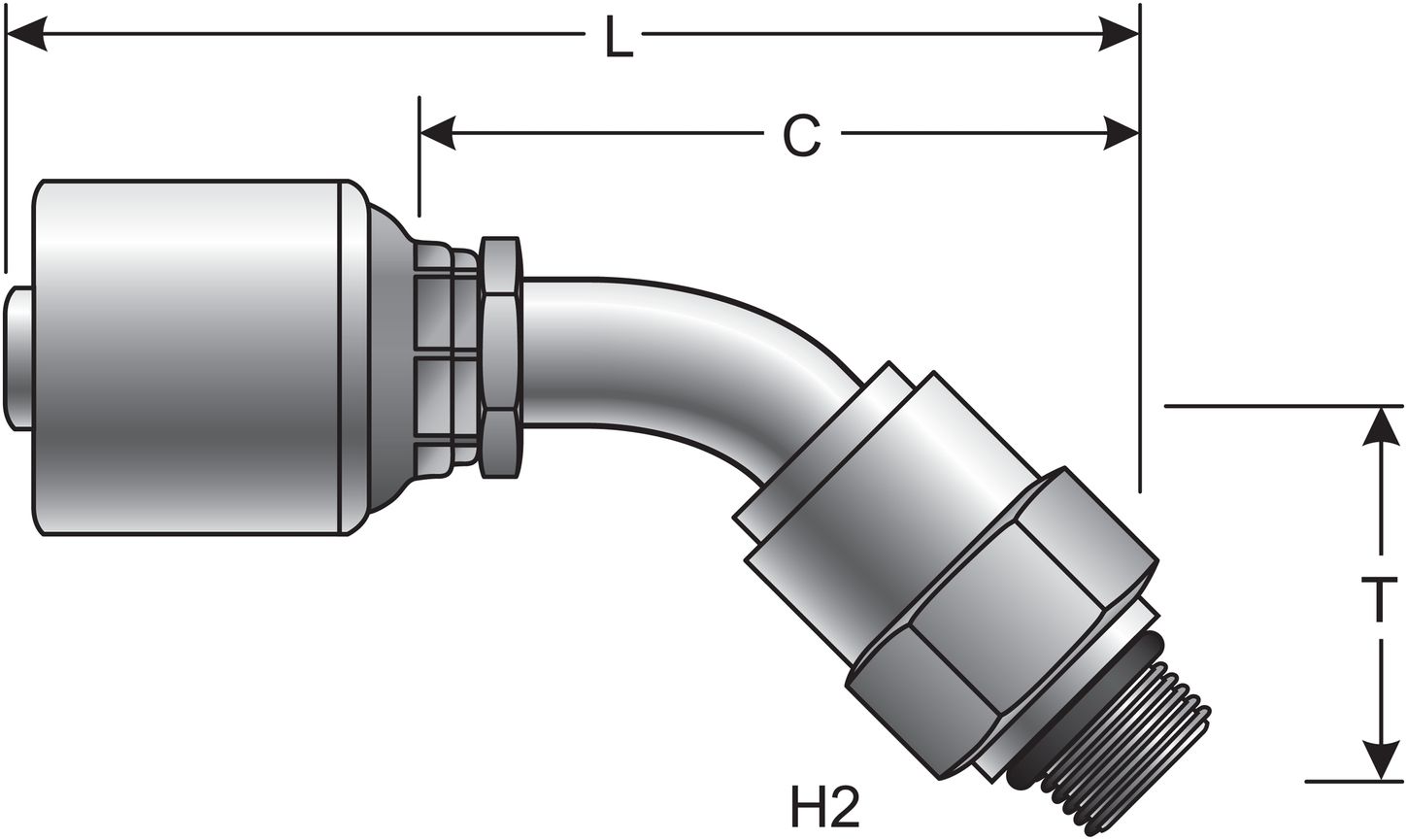

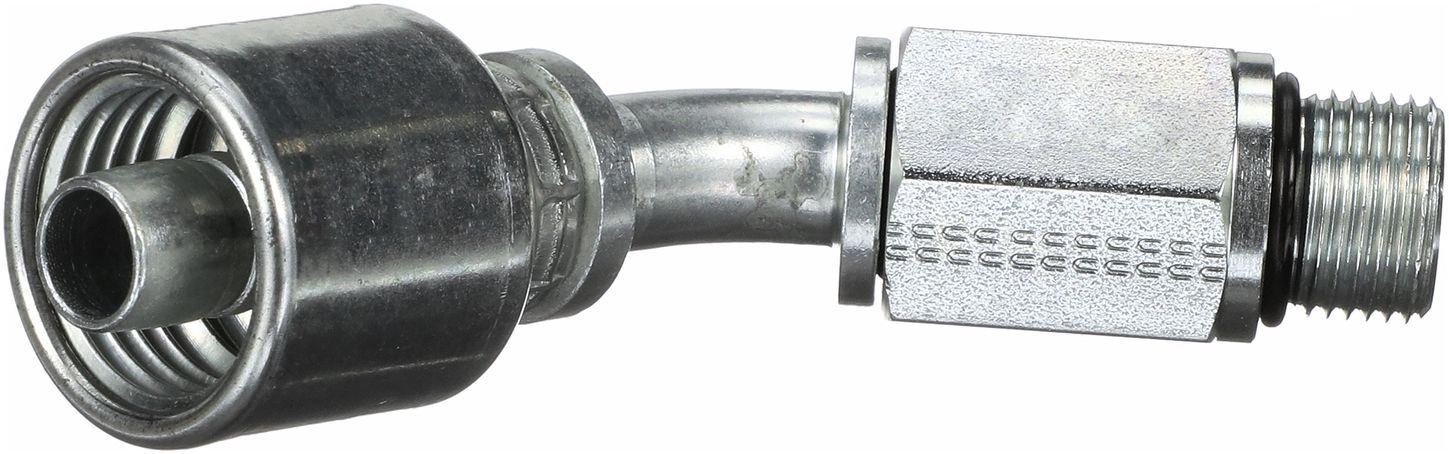

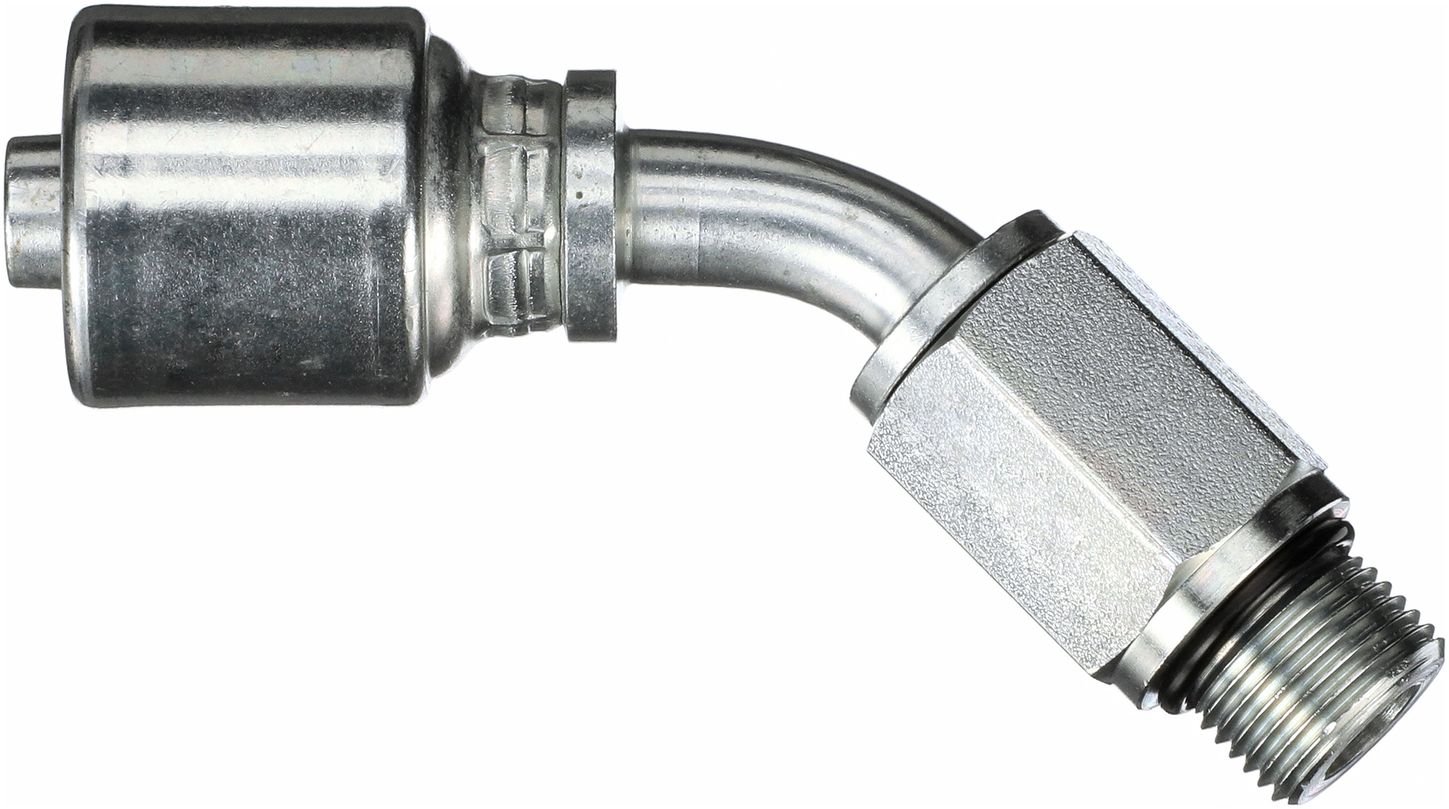

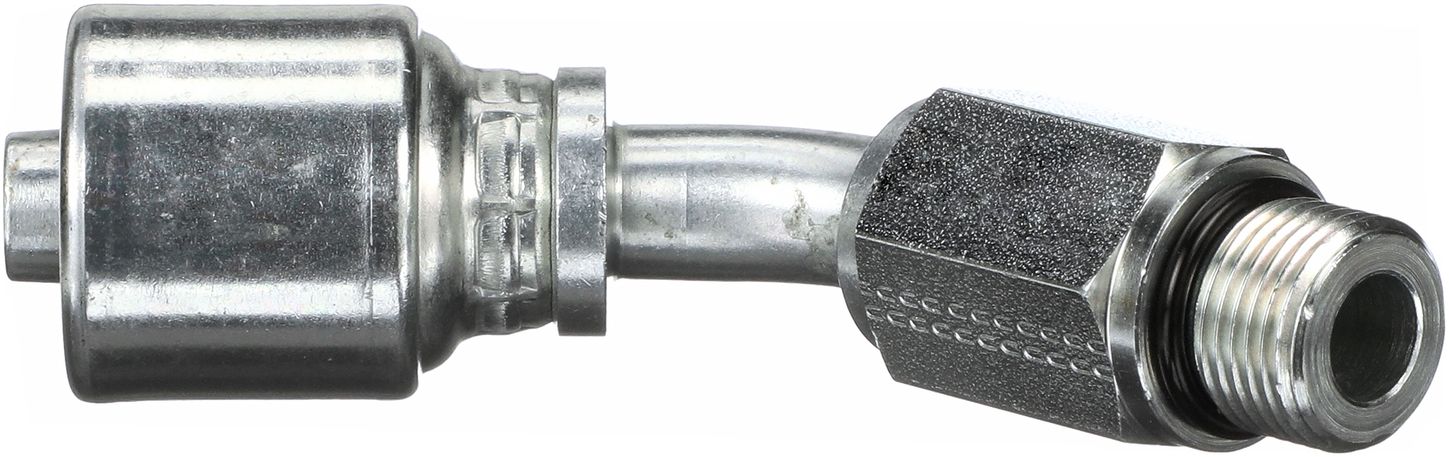

Gates G25126-0810 (8G-10MBX45) Male O-Ring Boss Swivel - 45 Bent Tube (MegaCrimp)

Male O-Ring Boss Swivel - 45 Bent Tube (MegaCrimp)

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel. Internal O-rings rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.

• Robust “bite-the-wire” crimp
