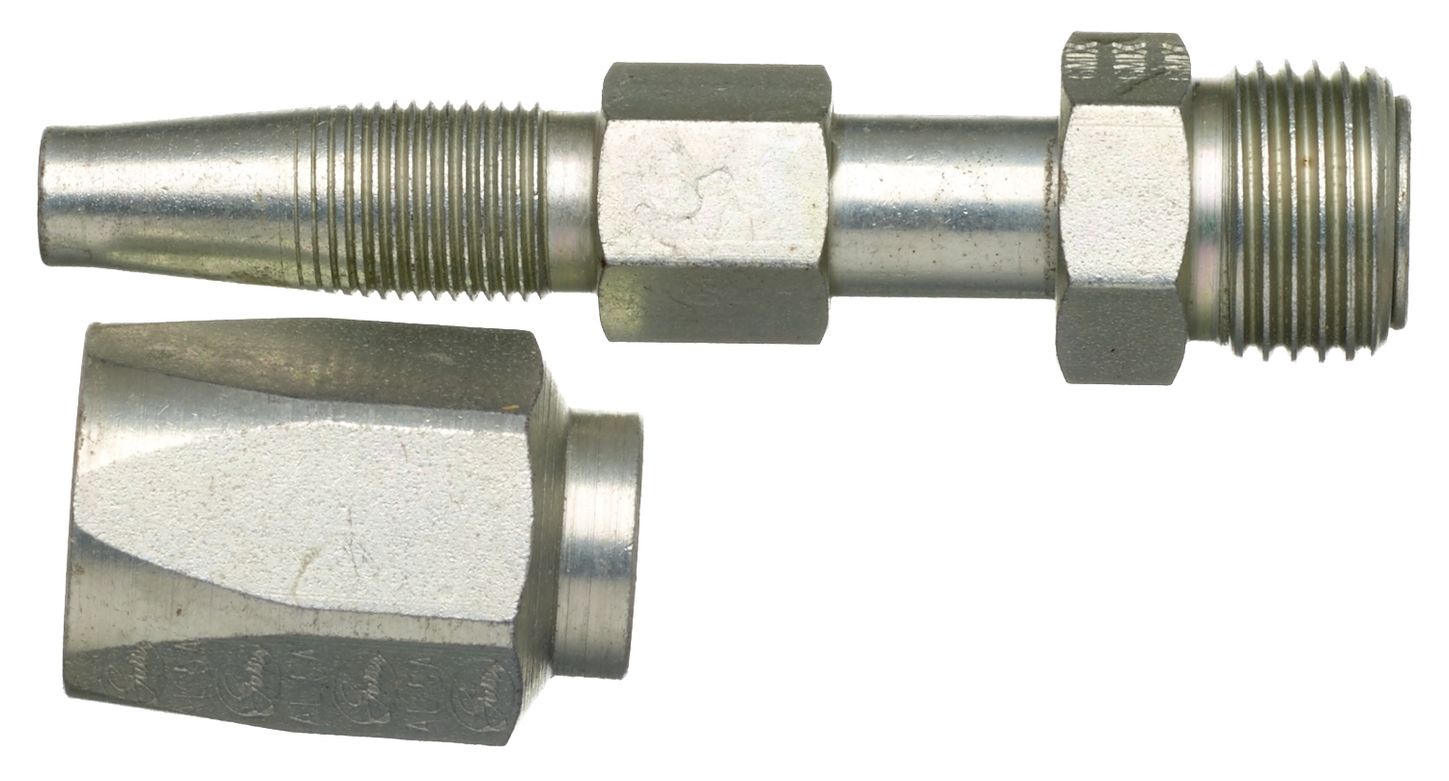

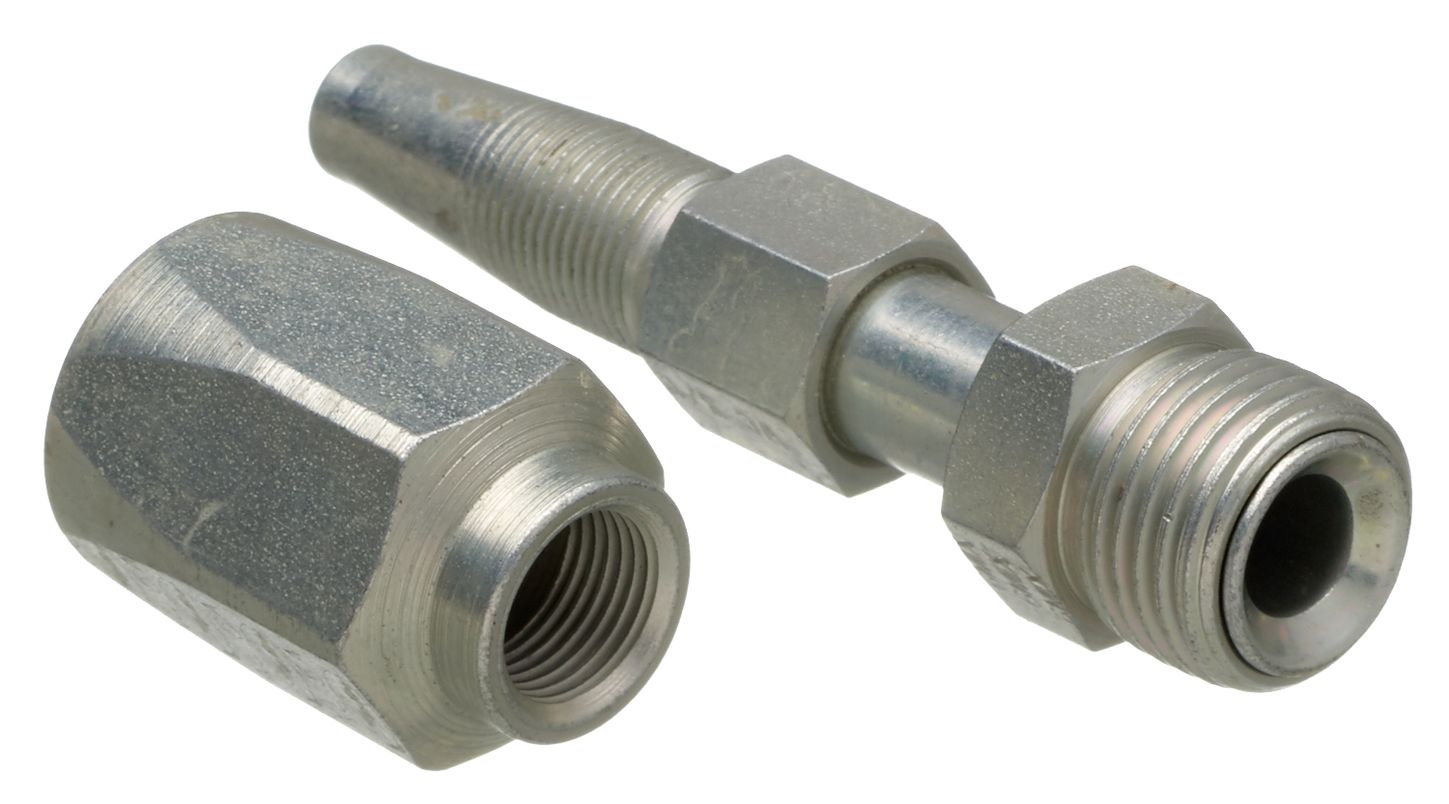

Gates G35500-0808 (8C5E-8RMIX) Male SAE 45 Flare Inverted Swivel - Steel (C5E Hose)
SKU: G35500-0808UPC/EAN: 072053169263
Male SAE 45 Flare Inverted Swivel - Steel (C5E Hose)
$27.90
EachUsually ships within 4-10 days
Product Details
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
- Designed to perform with Gates C5E Hose
Specifications
| SKU | G35500-0808 |
|---|---|
| UPC/EAN | 072053169263 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Male Inverted Flare (MI) |
| Hose Series | C5E |
| Inside Diameter | 3/8" (06) |
| Bend Angle | Straight |
| Thread Size | 3/4" (12) |
| Gates Code | G35 |
