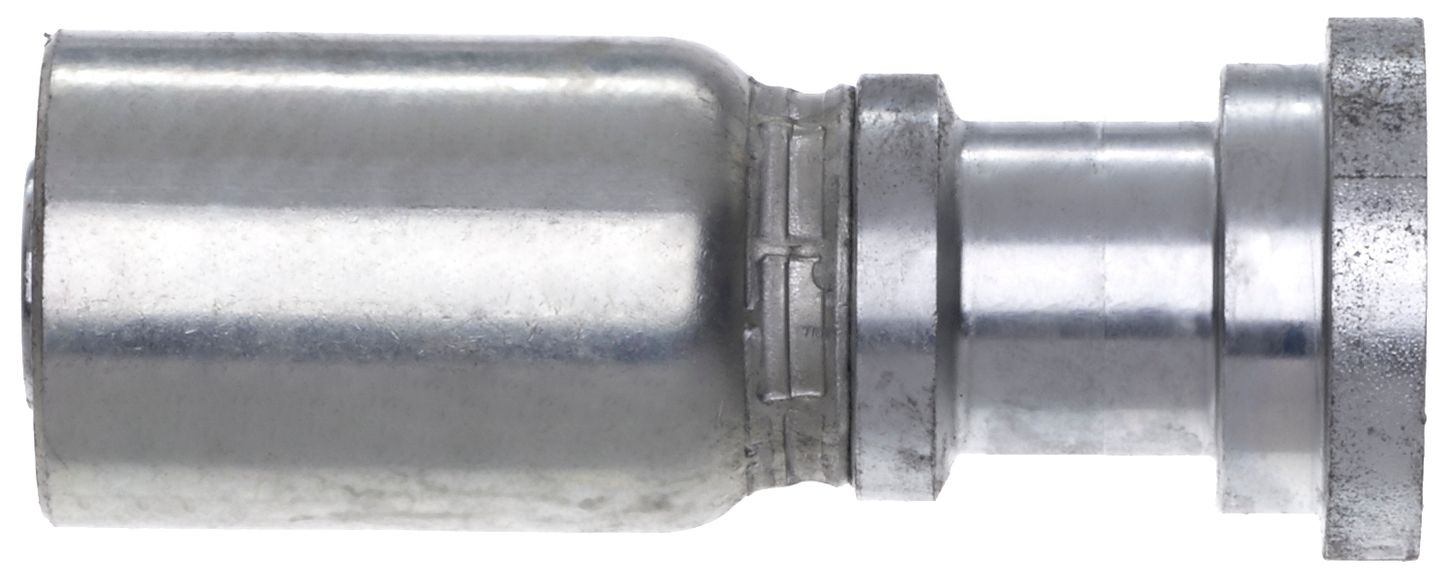

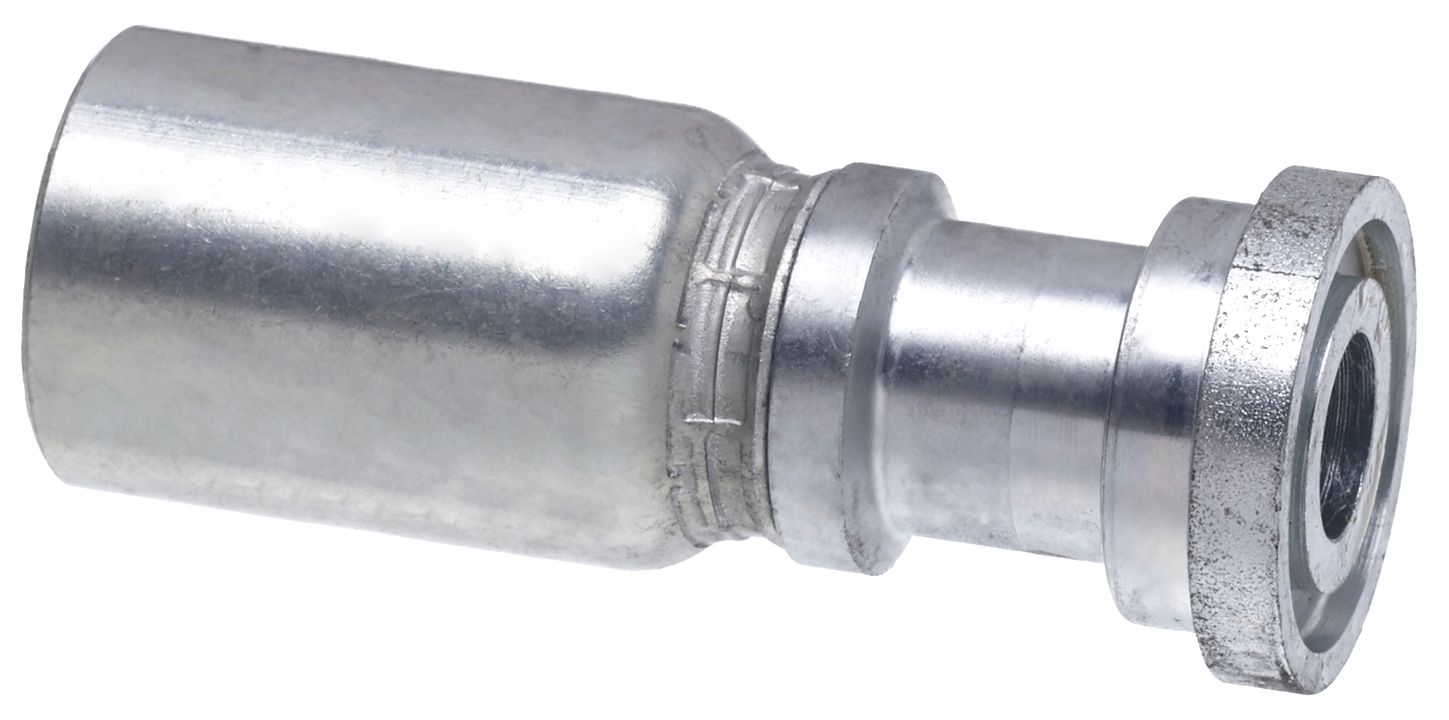

Gates G43300-2020 (20GL-20FL) Code 61 O-Ring Flange (GL)
SKU: G43300-2020UPC/EAN: 072053465037
Code 61 O-Ring Flange (GL)
$68.48
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43300-2020 |
|---|---|
| UPC/EAN | 072053465037 |
| Coupling Style | GL Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1 1/4" (20) |
| Bend Angle | Straight |
| Seal Type | O-Ring |
| Thread Size | 1 1/4" (20) |
| Gates Code | G43 |
