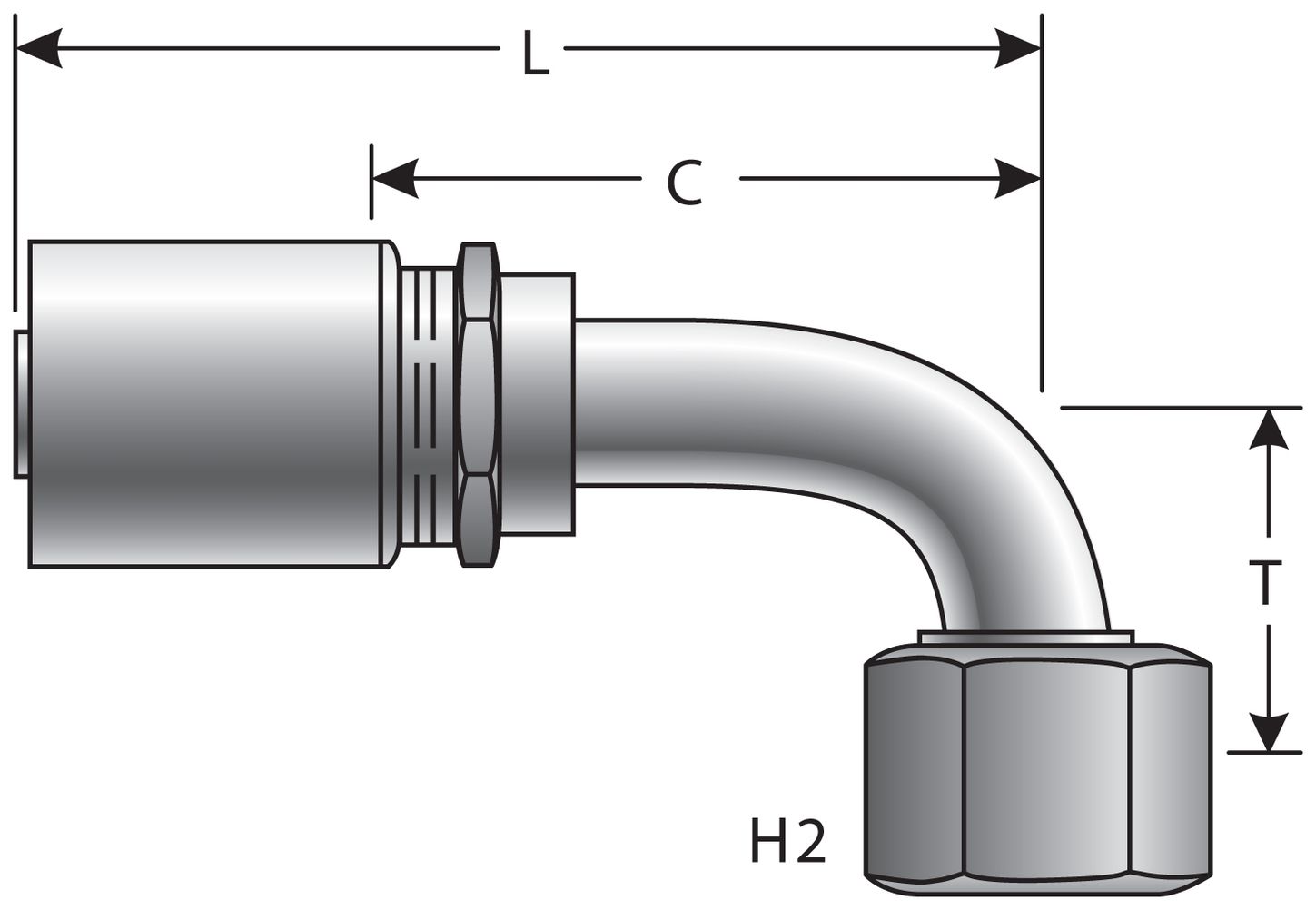

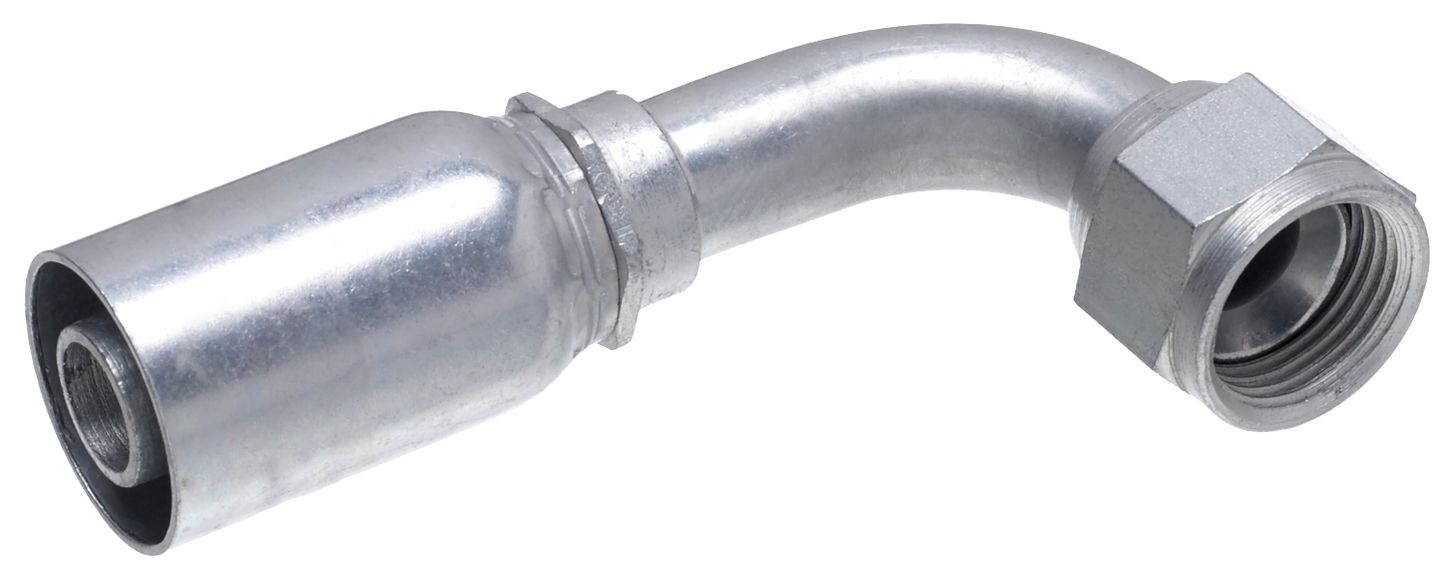

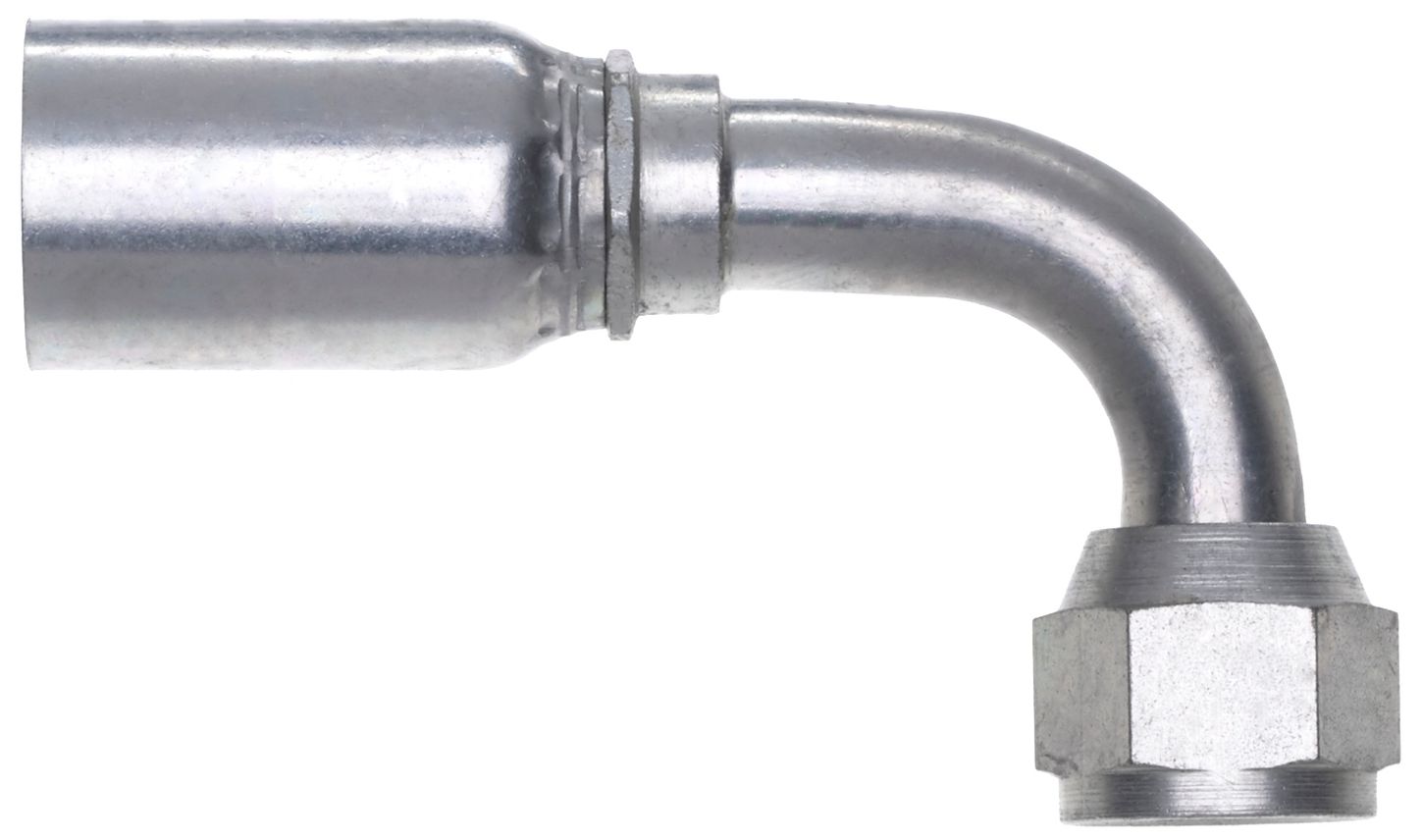

Gates G43183-2424 (24GL-24FJX90-092) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
SKU: G43183-2424UPC/EAN: 072053876185
Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$112.18
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43183-2424 |
|---|---|
| UPC/EAN | 072053876185 |
| Coupling Style | GL Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 1 1/2" (24) |
| Bend Angle | 90° |
| Seal Type | Mated Angle |
| Thread Size | 1 7/8" (30) |
| Gates Code | G43 |
You may also like

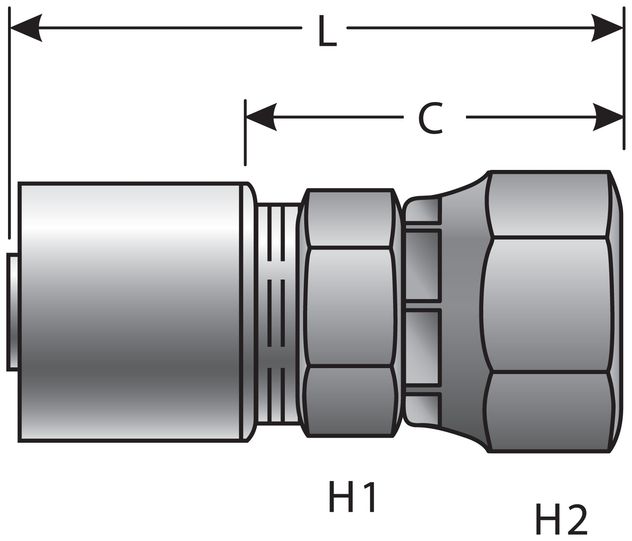

Gates G43170-2424 (24GL-24FJX) Female JIC 37 Flare Swivel (GL)
$85.57Each
Gates G43180-2420 (24GL-20FJX90M) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$93.69Each
Gates G43181-2420 (24GL-20FJX90L) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$104.36Each
Gates G43170-2420 (24GL-20FJX) Female JIC 37 Flare Swivel (GL)
$60.31Each
Gates G43180-2020 (20GL-20FJX90M) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$94.54Each
Gates G43179-1616 (16GL-16FJX90S) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$66.83Each
Gates G43179-1212 (12GL-12FJX90S) Female JIC 37 Flare Swivel - 90 Bent Tube (GL)
$45.07Each

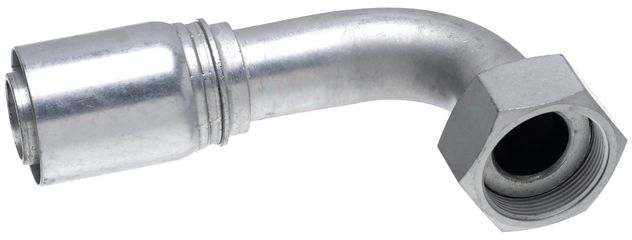

Gates G43240-2424 (24GL-24FFORX90M) Female Flat-Face Swivel - 90 Bent Tube (GL)
$115.34Each

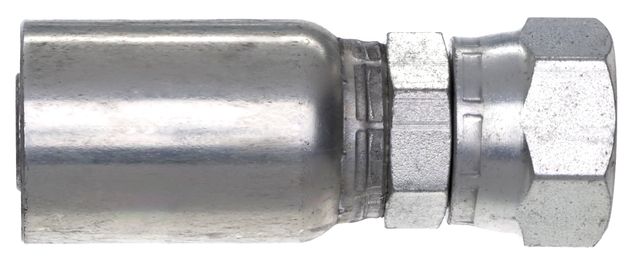

Gates G43170-4040 (40GL-40FJX) Female JIC 37 Flare Swivel (GL)
$288.44Each
Gates G43170-3232 (32GL-32FJX) Female JIC 37 Flare Swivel (GL)
$149.04Each

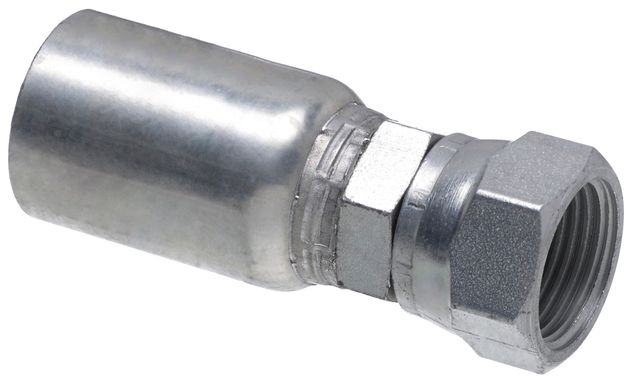

Gates G43170-2020 (20GL-20FJX) Female JIC 37 Flare Swivel (GL)
