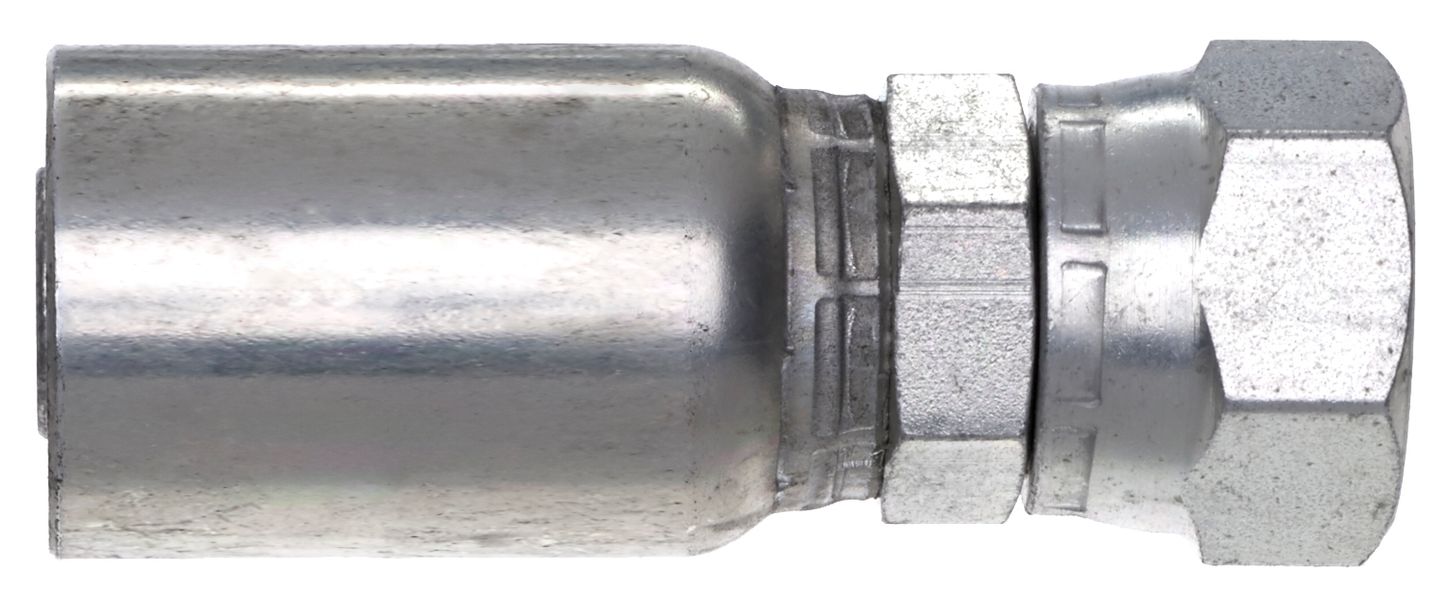

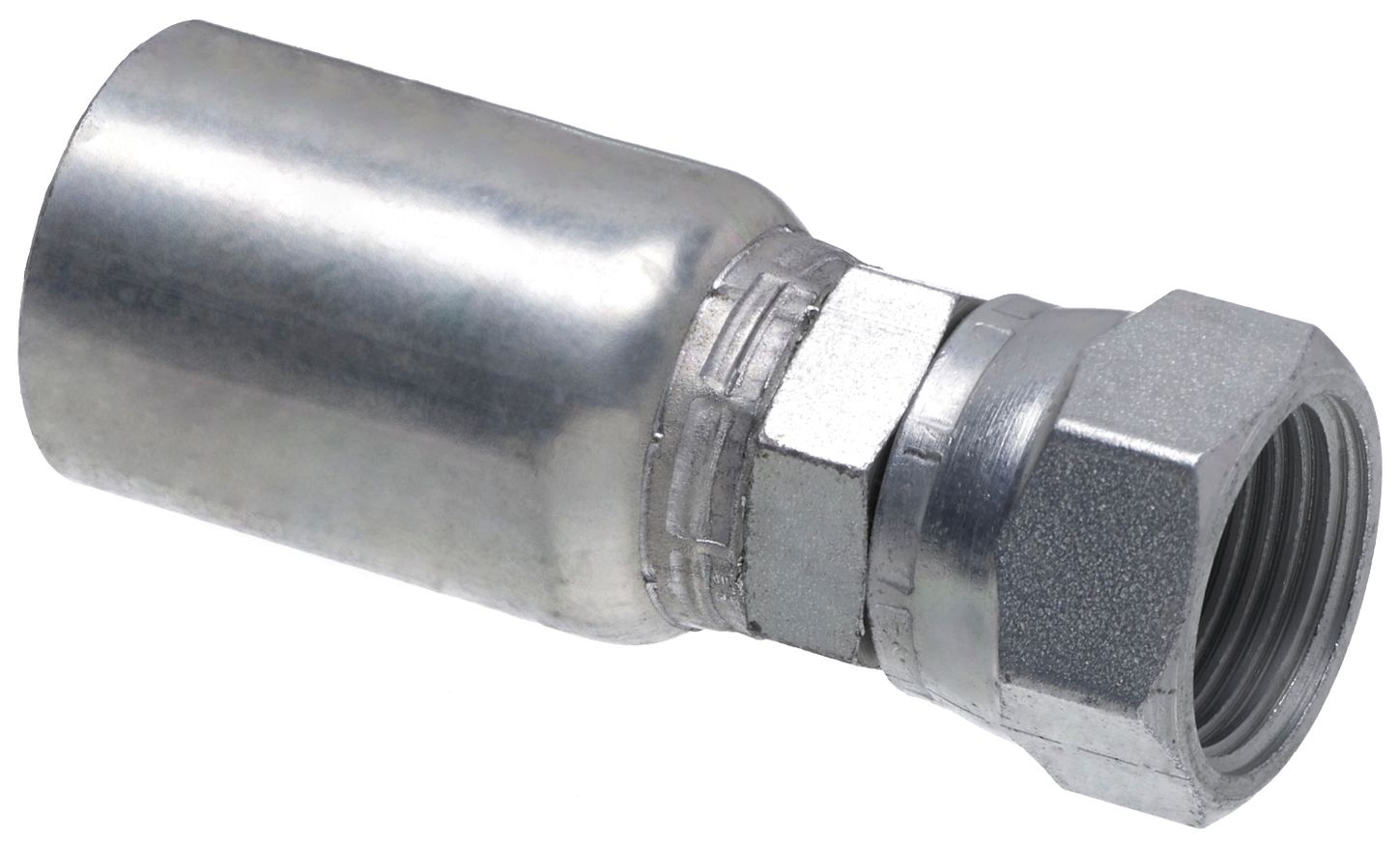

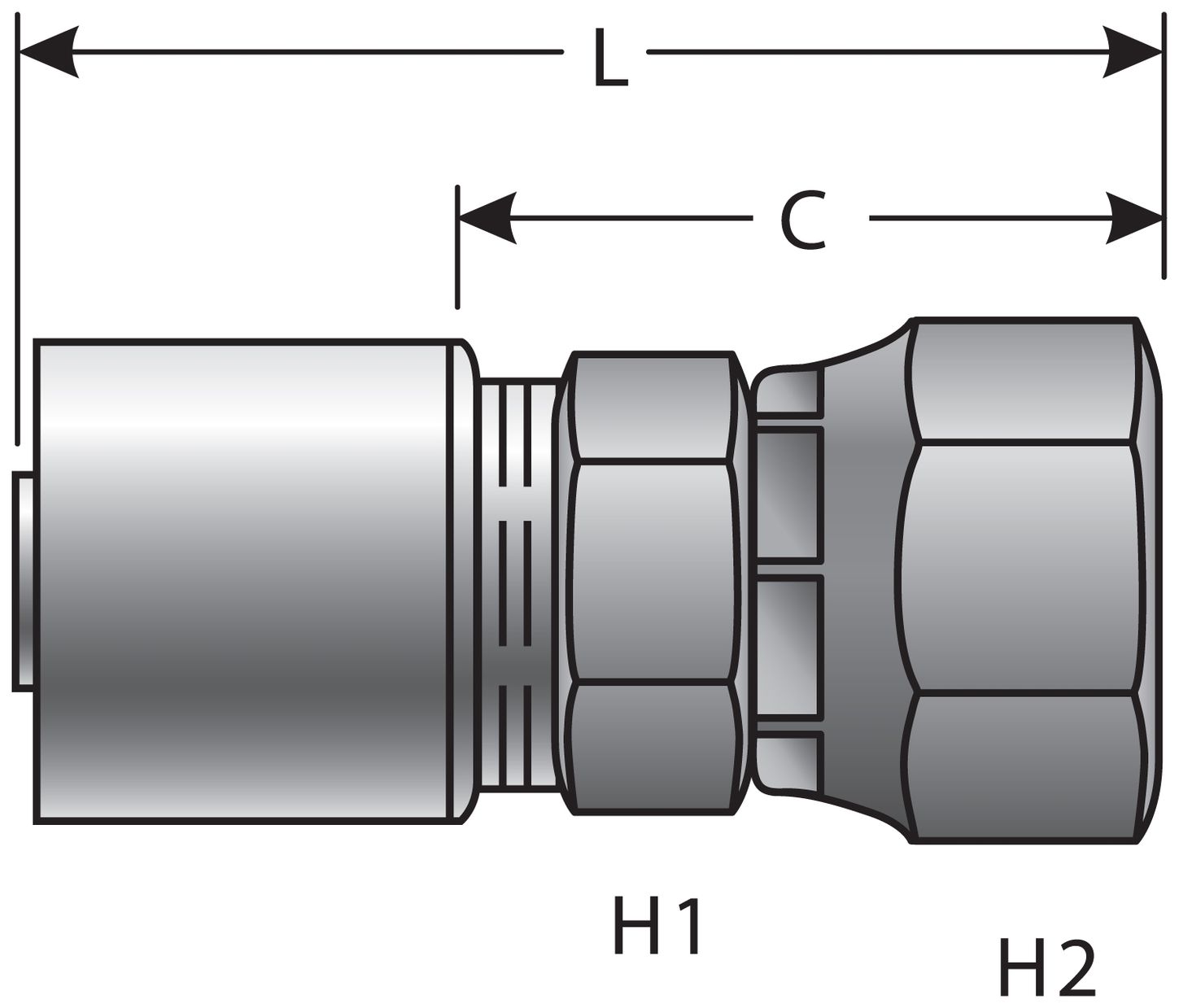

Gates G43170-1216 (12GL-16FJX) Female JIC 37 Flare Swivel (GL)
SKU: G43170-1216UPC/EAN: 072053464863
Female JIC 37 Flare Swivel (GL)
$37.90
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43170-1216 |
|---|---|
| UPC/EAN | 072053464863 |
| Coupling Style | GL Couplings |
| Swivel | Yes |
| Thread Configuration | Female JIC (FJ) |
| Inside Diameter | 3/4" (12) |
| Bend Angle | Straight |
| Seal Type | Mated Angle |
| Thread Size | 1 5/16" (21) |
| Gates Code | G43 |
