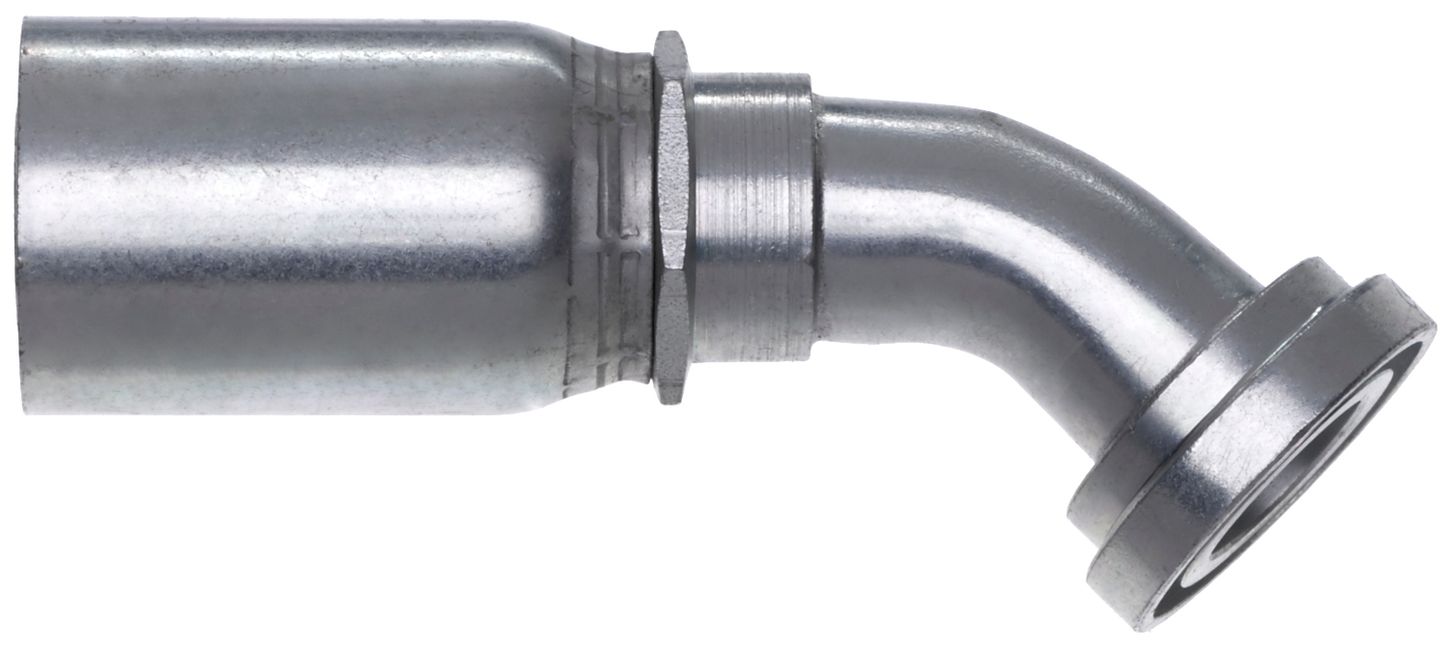

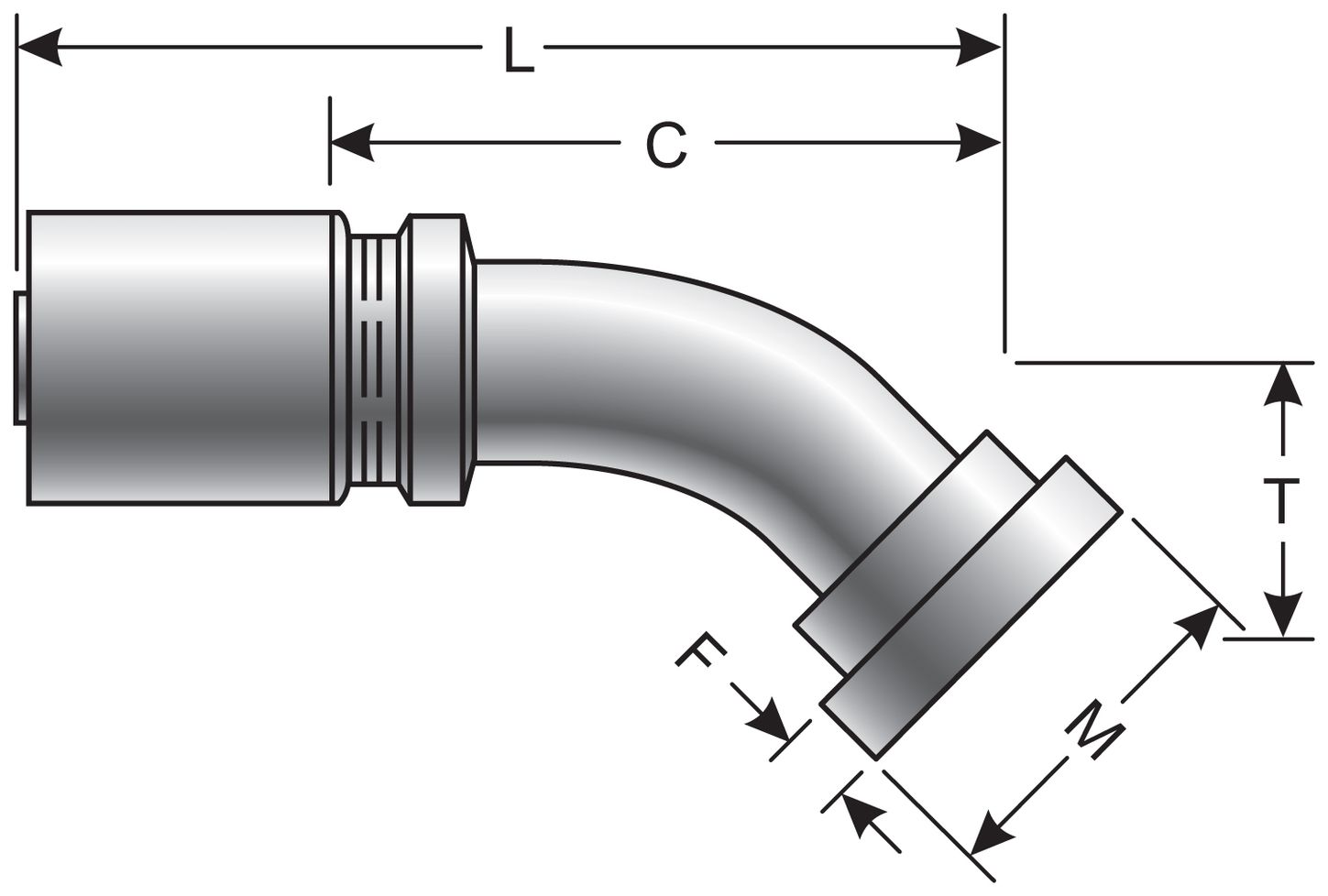

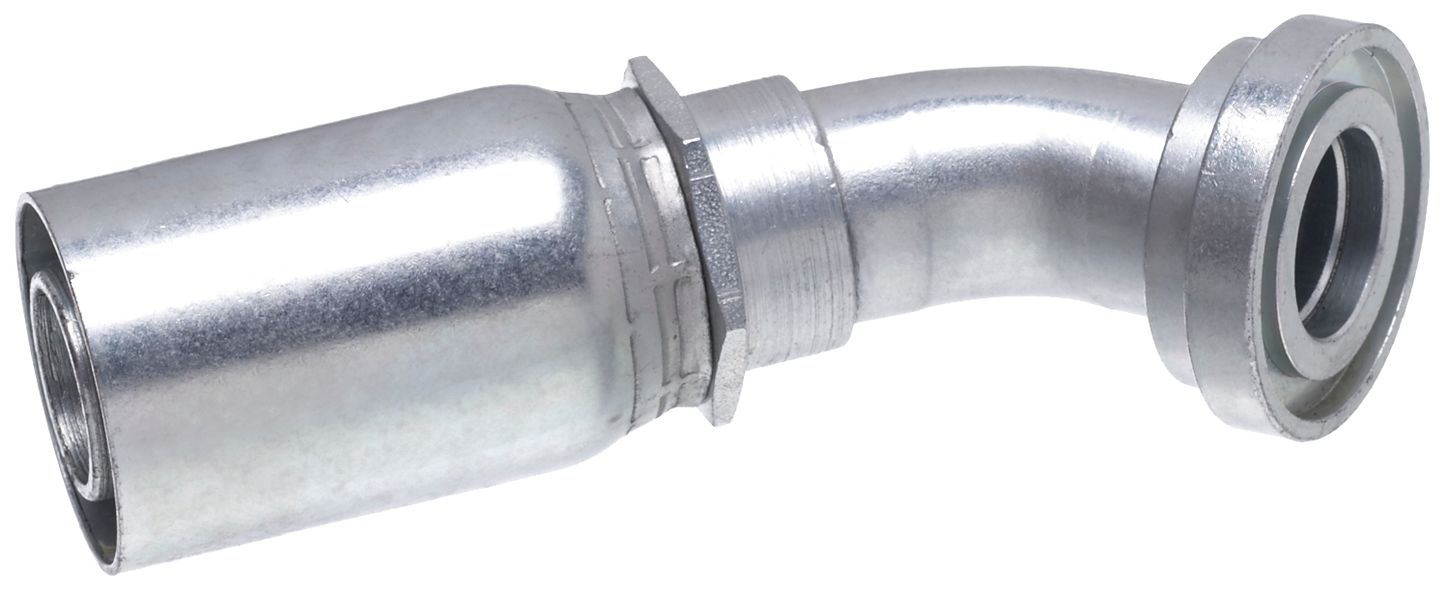

Gates G43306-3240 (32GL-40FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GL)
SKU: G43306-3240UPC/EAN: 770075677741
Code 61 O-Ring Flange - 45 Bent Tube (GL)
$233.89
EachUsually ships within 4-10 days
Product Details
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose.
- Designed for larger-diameter hoses - up to 4 in. I.D.
Specifications
| SKU | G43306-3240 |
|---|---|
| UPC/EAN | 770075677741 |
| Coupling Style | GL Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 2" (32) |
| Bend Angle | 45° |
| Seal Type | O-Ring |
| Thread Size | 2 1/2" (40) |
| Gates Code | G43 |
You may also like
Gates G43306-3232 (32GL-32FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GL)
$129.35Each
Gates G43306-1616 Code 61 O-Ring Flange - 45 Bent Tube (GL)
$54.61Each
Gates G43314-3240 (32GL-40FL90-114) Code 61 O-Ring Flange - 90 Bent Tube (GL)
$190.62Each
Gates G43306-2424 (24GL-24FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GL)
$72.51Each
Gates G43306-2020 (20GL-20FL45S) Code 61 O-Ring Flange - 45 Bent Tube (GL)
$82.31Each

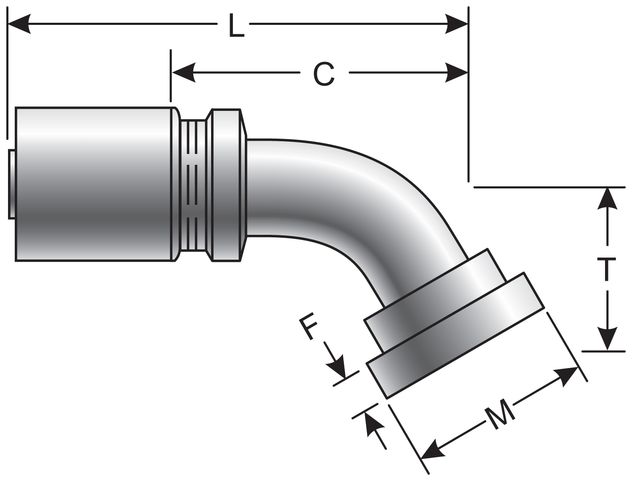

Gates G43308-3232 (32GL-32FL60S) Code 61 O-Ring Flange - 60 Bent Tube (GL)
$134.40Each
Gates G43314-3232 (32GL-32FL90S) Code 61 O-Ring Flange - 90 Bent Tube (GL)
$132.27Each

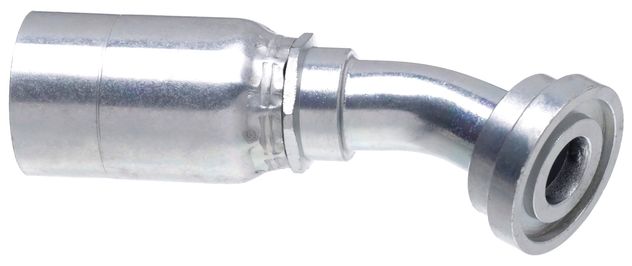

Gates G43304-3232 (32GL-32FL30M) Code 61 O-Ring Flange - 30 Bent Tube (GL)
$132.97Each
Gates G43307-1212 Code 61 O-Ring Flange - 45 Bent Tube (GL)
$50.40Each
Gates G43307-4040 (40GL-40FL45) Code 61 O-Ring Flange - 45 Bent Tube (GL)
$239.05Each
Gates G43307-4048 (40GL-48FL45) Code 61 O-Ring Flange - 45 Bent Tube (GL)
$283.24Each

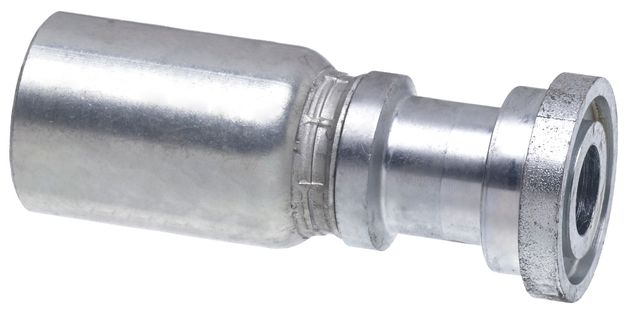

Gates G43300-3232 (32GL-32FL) Code 61 O-Ring Flange (GL)
