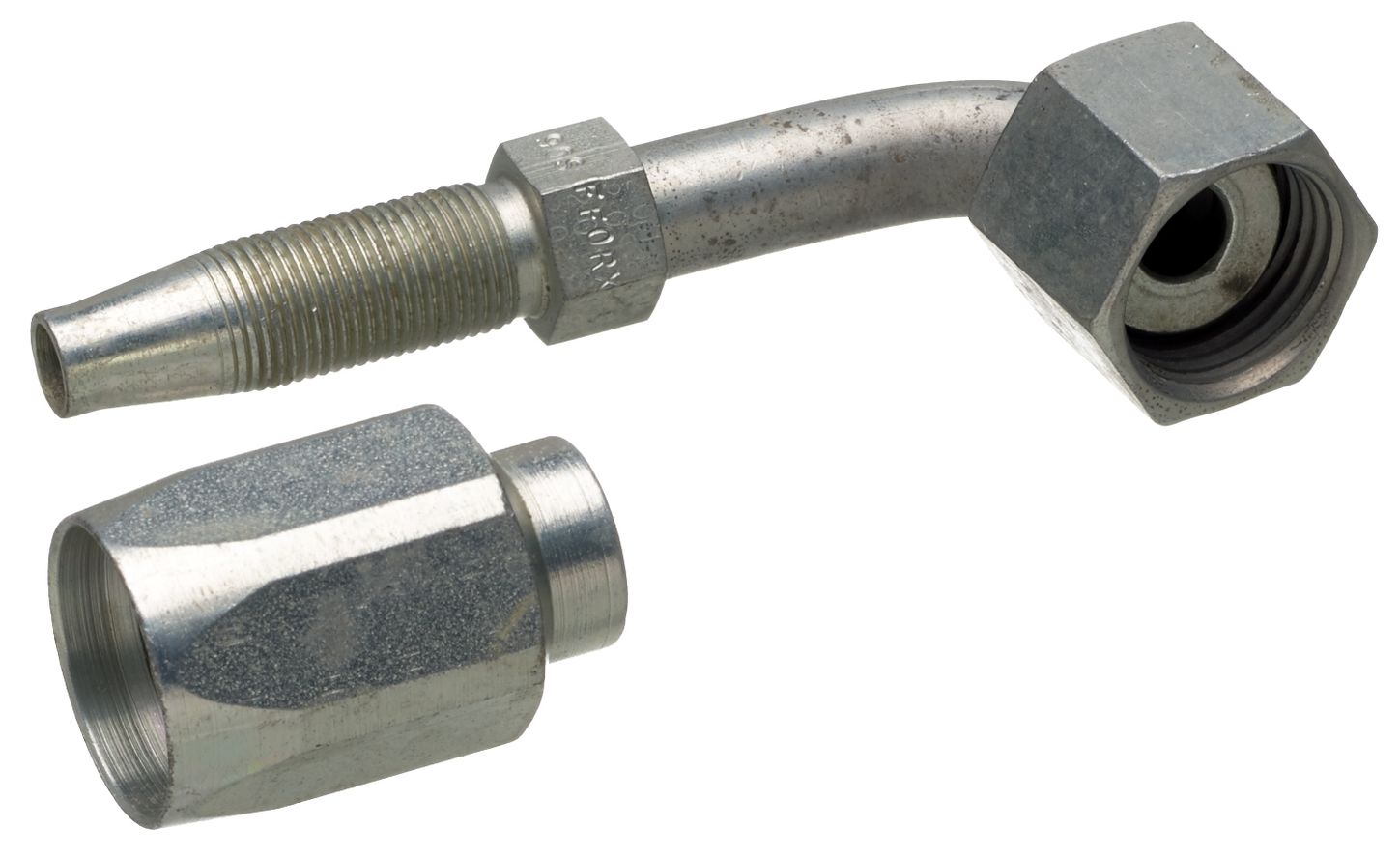

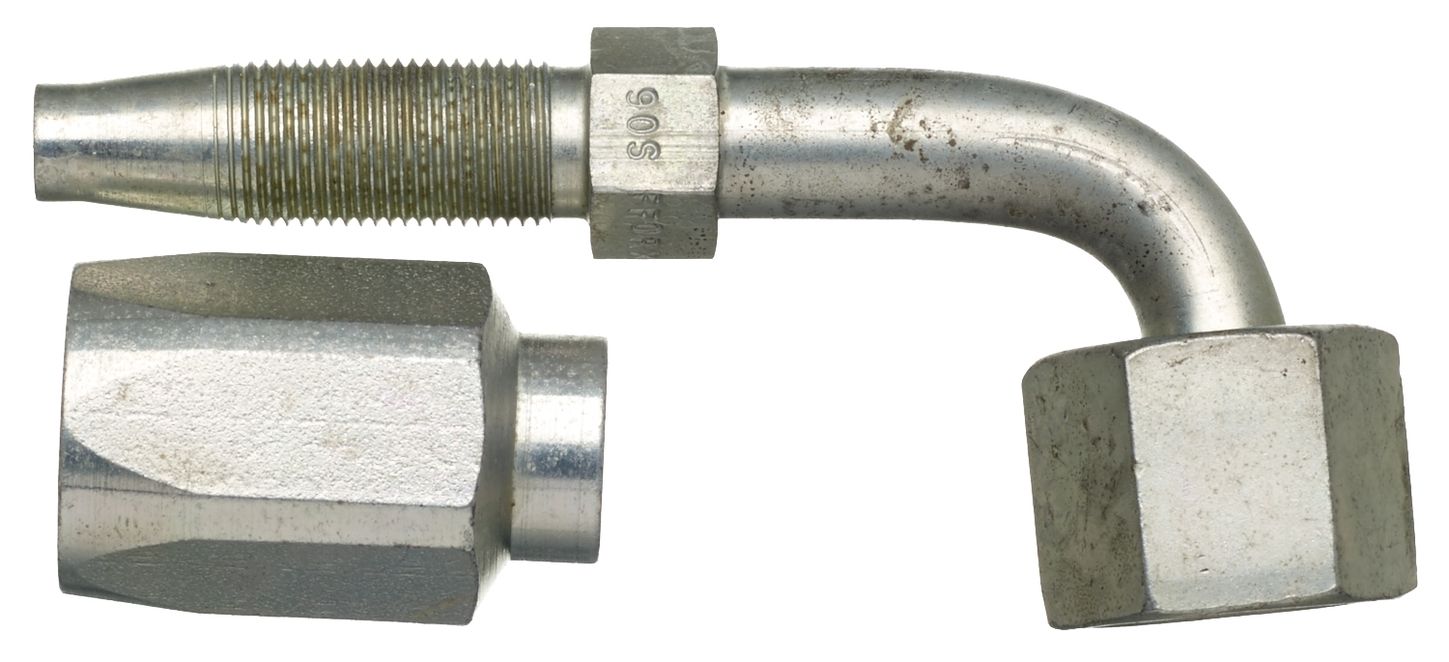

Gates G34239-0606 (6C5-6RFFORX90S) Female Flat-Face Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
SKU: G34239-0606UPC/EAN: 072053812657
Female Flat-Face Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
$51.87
EachUsually ships within 4-10 days
Product Details
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper. SAE J1453 O-Ring Face Seal.
- Designed to perform with Gates C5 hose
Specifications
| SKU | G34239-0606 |
|---|---|
| UPC/EAN | 072053812657 |
| Coupling Style | Field Attachable Couplings |
| Swivel | Yes |
| Thread Configuration | Female Flat-Face O-Ring (FFOR) |
| Inside Diameter | 5/16" (05) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 5/8" (10) |
| Gates Code | G34 |
