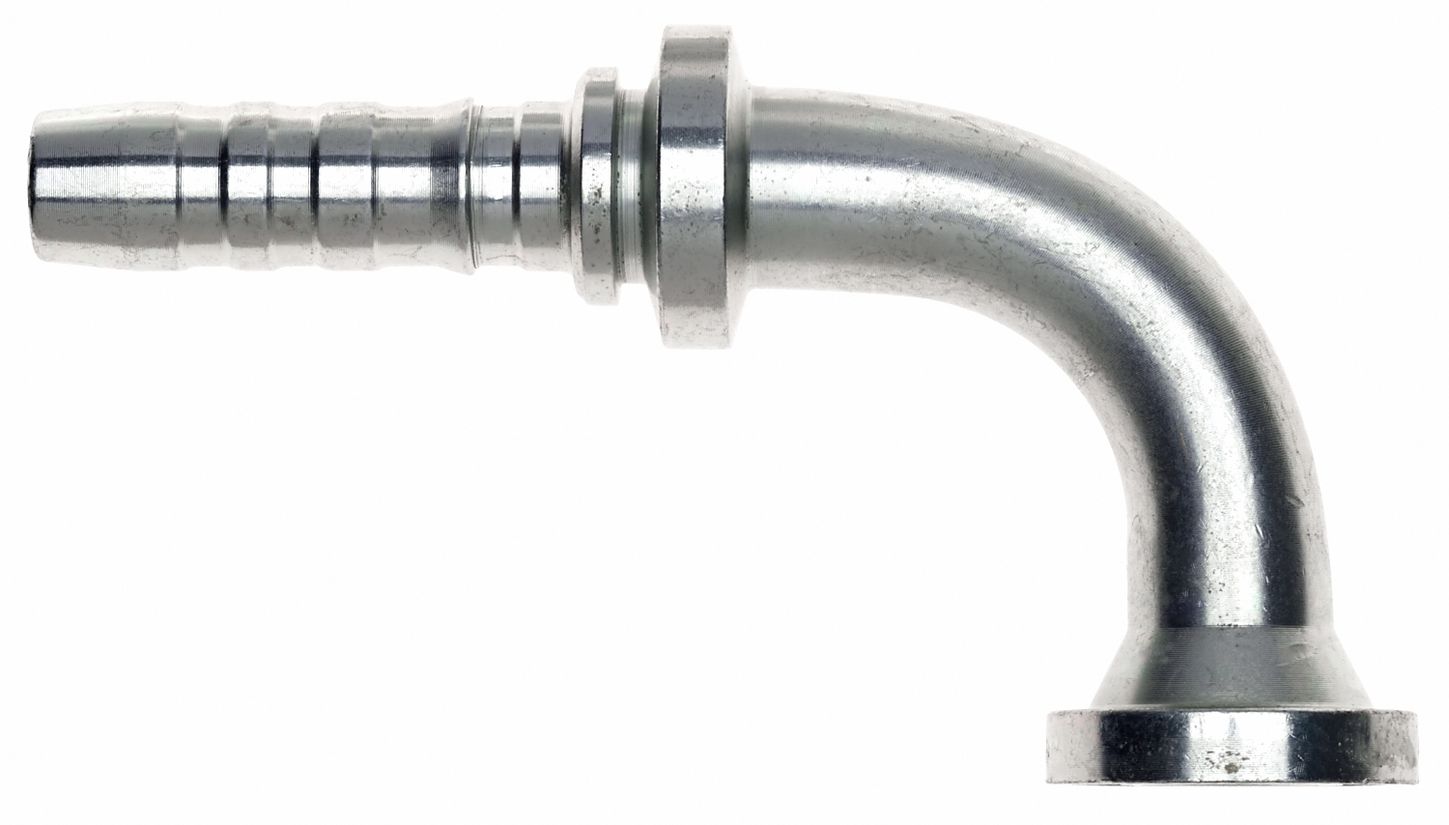

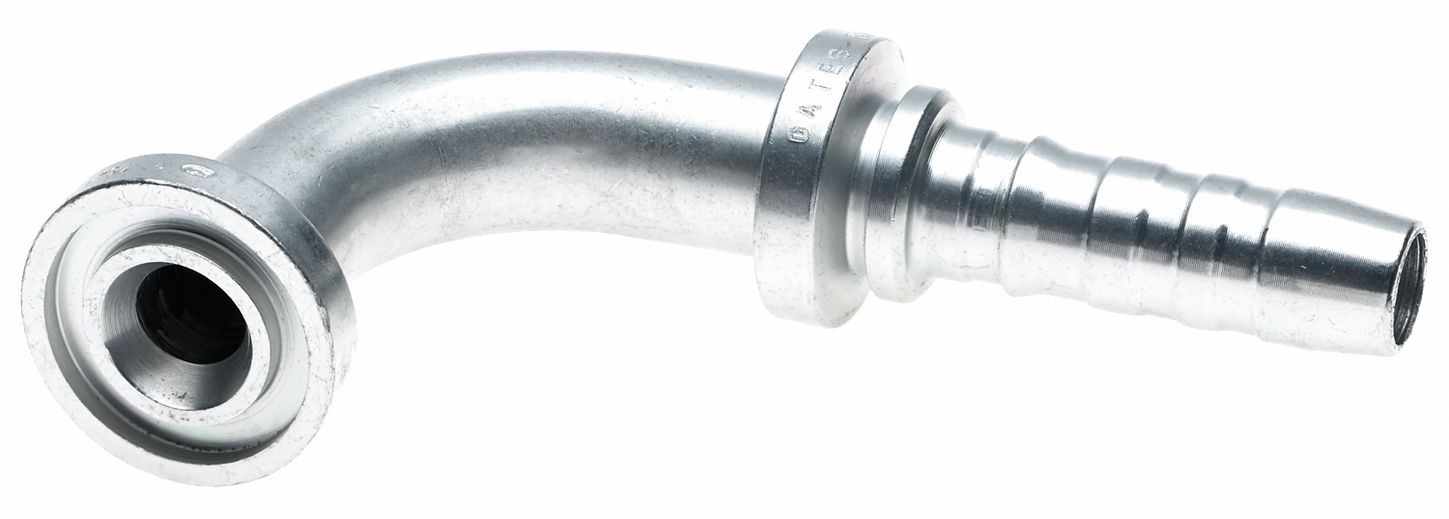

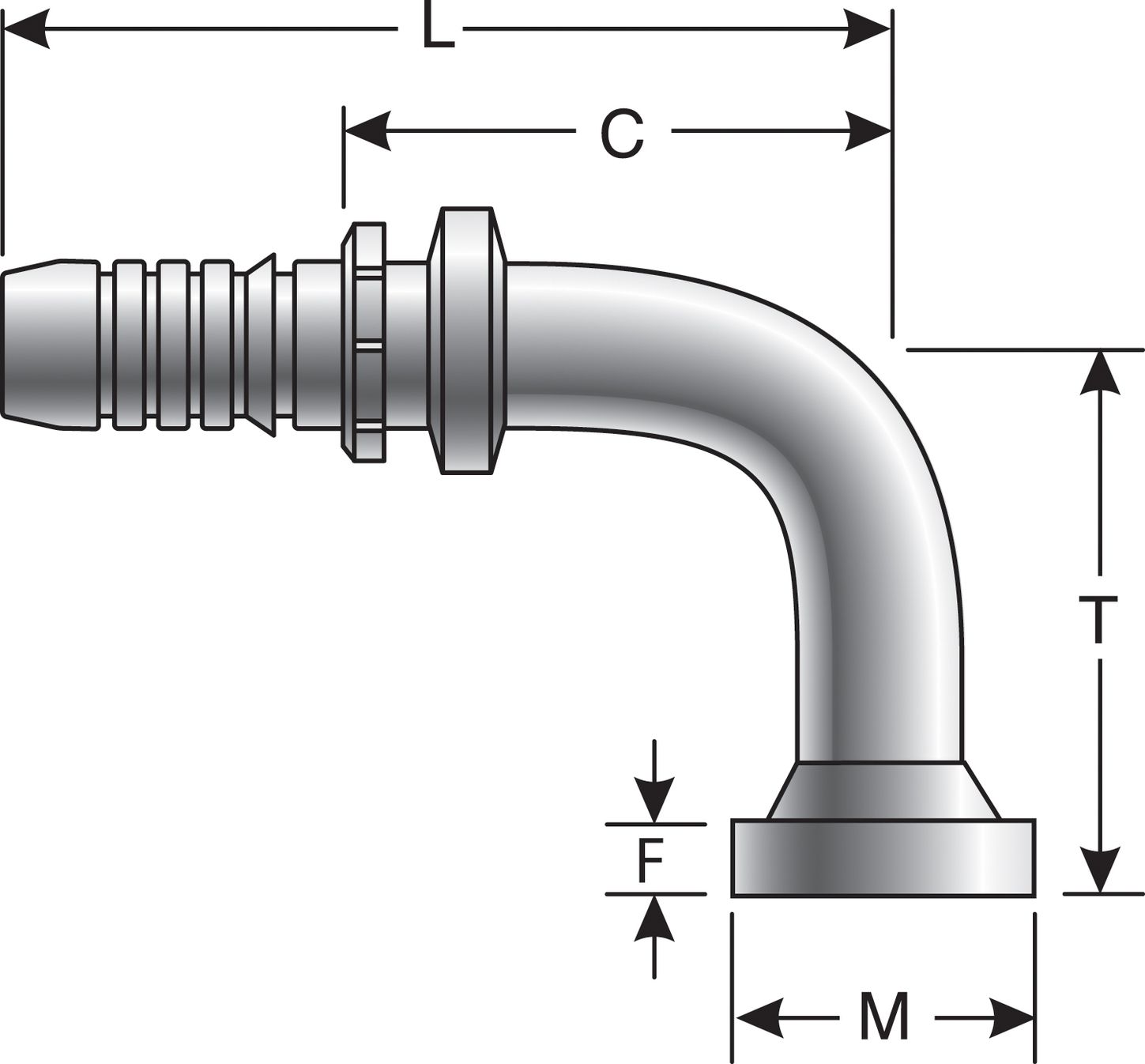

Gates G20317-1616 (16GS-16FL90-120) Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Product Details
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
- “Bite-the-wire” crimp for improved coupling retention
Specifications
| SKU | G20317-1616 |
|---|---|
| Cross reference | G203171616, GATG20314-1616, GATG20315-1616 |
| UPC/EAN | 072053435061 |
| Coupling Style | GlobalSpiral Couplings |
| Swivel | No |
| Thread Configuration | SAE O-Ring Flange (FL) |
| Inside Diameter | 1" (16) |
| Bend Angle | 90° |
| Seal Type | O-Ring |
| Thread Size | 1" (16) |
| Working Pressure Rating (PSI) | 5000 |
| Gates Code | G20 |
